Product Details
The filter is an indispensable device on the medium transmission pipeline. It is usually installed at the inlet of the pressure reducing valve, relief valve, constant level valve or other equipment to eliminate impurities in the medium and protect the normal use of the valve and equipment. When the fluid enters the filter cartridge with a filter screen of a certain size, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is required, just take out the removable filter cartridge and reload it after treatment. Therefore, it is very convenient to use and maintain.
According to the different filtering accuracy (particle size of impurities filtered), the oil filter can be divided into four types: coarse filter, ordinary filter, precision filter and special fine filter, which can filter more than 100 μ m、10～100 μ m、5～10 μ M and 1-5 μ M size impurities.
When selecting filters, the following points should be considered:
(1) The filtering accuracy shall meet the predetermined requirements
(2) Capable of maintaining sufficient flow capacity for a long time
(3) The filter element has sufficient strength and will not be damaged by hydraulic pressure
(4) The filter element has good corrosion resistance and can work at the specified temperature for a long time
(5) Easy to clean or replace filter element
Therefore, the model of the oil filter shall be selected according to the technical requirements of the hydraulic system, filtering accuracy, flow capacity, working pressure, oil viscosity, working temperature and other conditions.
Product features
1.Excellent separation rates.
2.Low pressure losses due to large cross sections and filter areas.
3.Very large filter area per filter element.
4.Compact design with high flow rates.
5.Flow-optimized design.
6.Protection of the clean side during element change.
7.High contamination retention capacity.
Product parameters

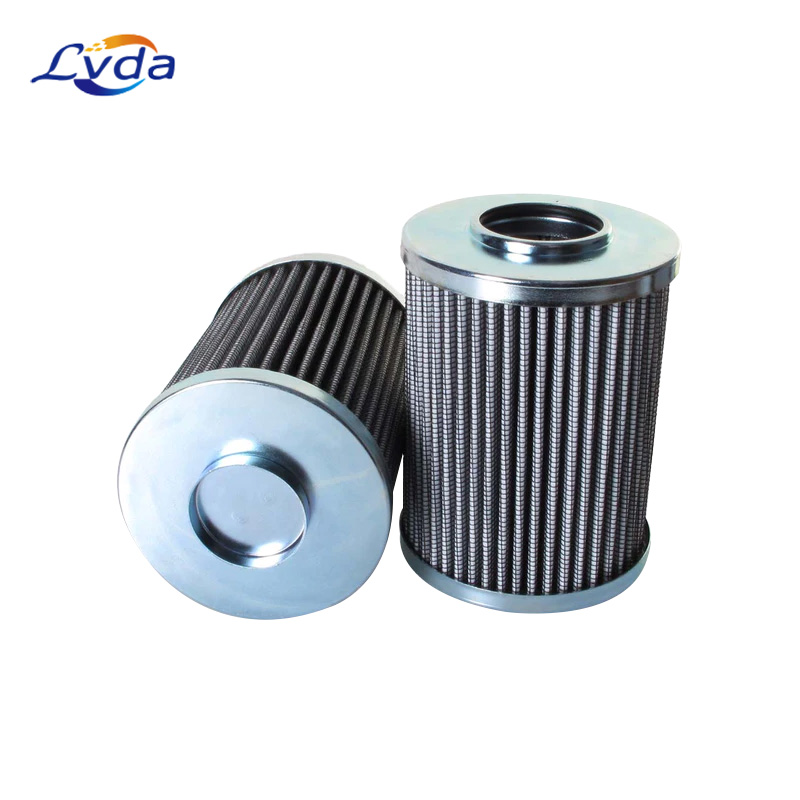

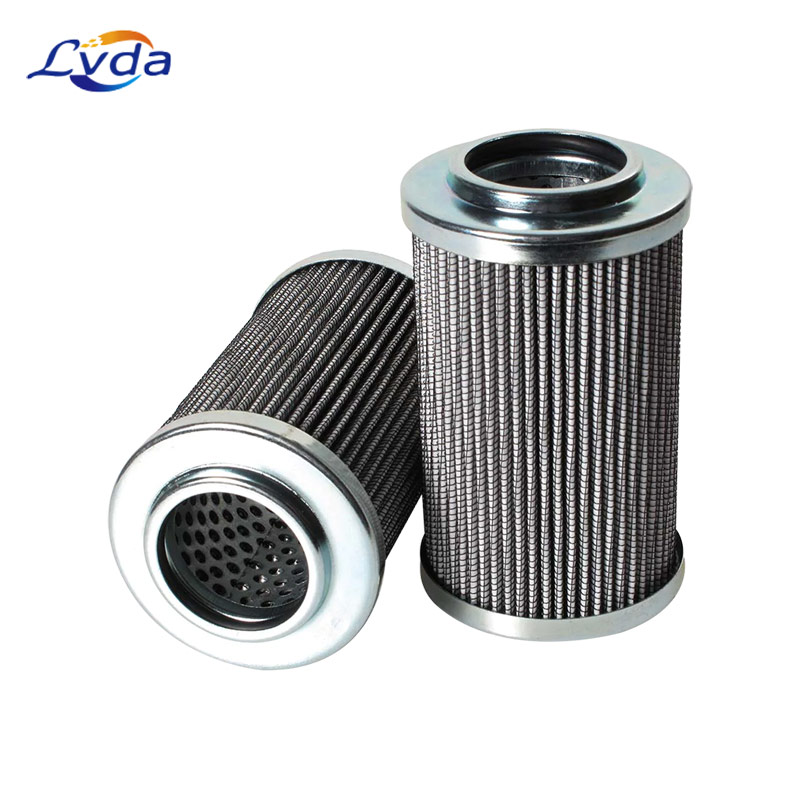

Model: | HY 15129 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001:2015 |
Quality: | 100% Tested |
Type: | Hydraulic Filter |
Seal Material | Nitrile |
Efficiency 1 | 25µ @ β2 |
Outer Diameter | 58 mm |
Inner Diameter | 32.2 mm |
Length | 100 mm |
Media Type | Cellulose |
Flow Direction | OUT-IN |
Collapse Pressure | 10 BAR |
Temperature Range | -30 - +100°C |
Product application
1．Chemical and petrochemical industry
2．Pharmaceutical industry
3．Filling machines
4．Food & beverage industry
5．Packing machines
6．Process industry
