Product Details
LVDA part is a quality manufactured part, designed to be interchangable with various OEM makes, including OEM Part RFG-536-CE-1-X. LVDA warrants this part to meet or exceed OEM specifications, in Form, Fit, and Function, irregardless of marketing decorations (stampings, logos, etc), ISO 9001 quality manufactured, and meets all Internationally Recognized ISO standards for meeting filtration requirements.

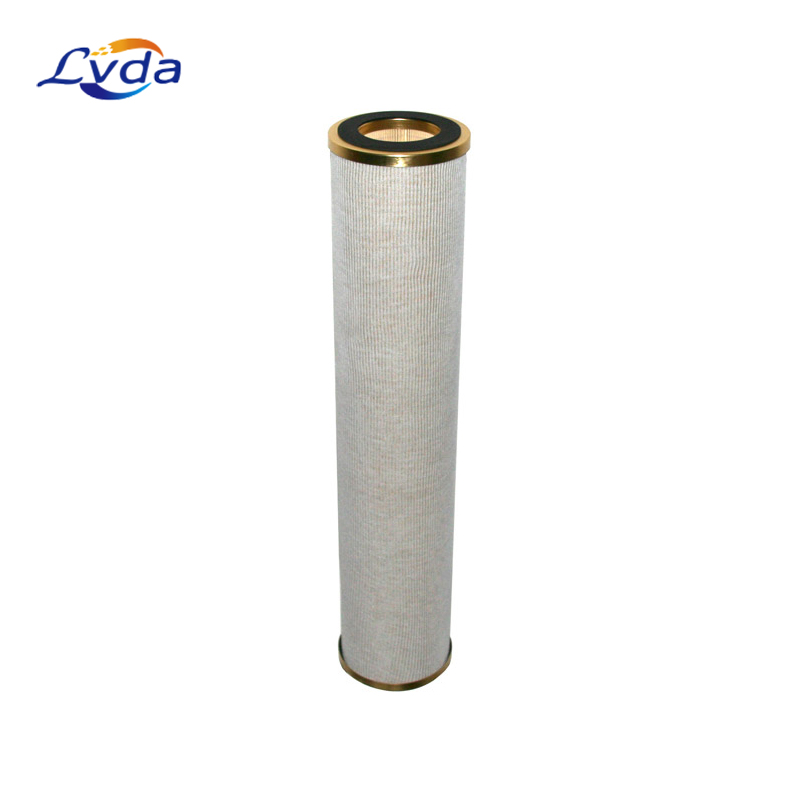

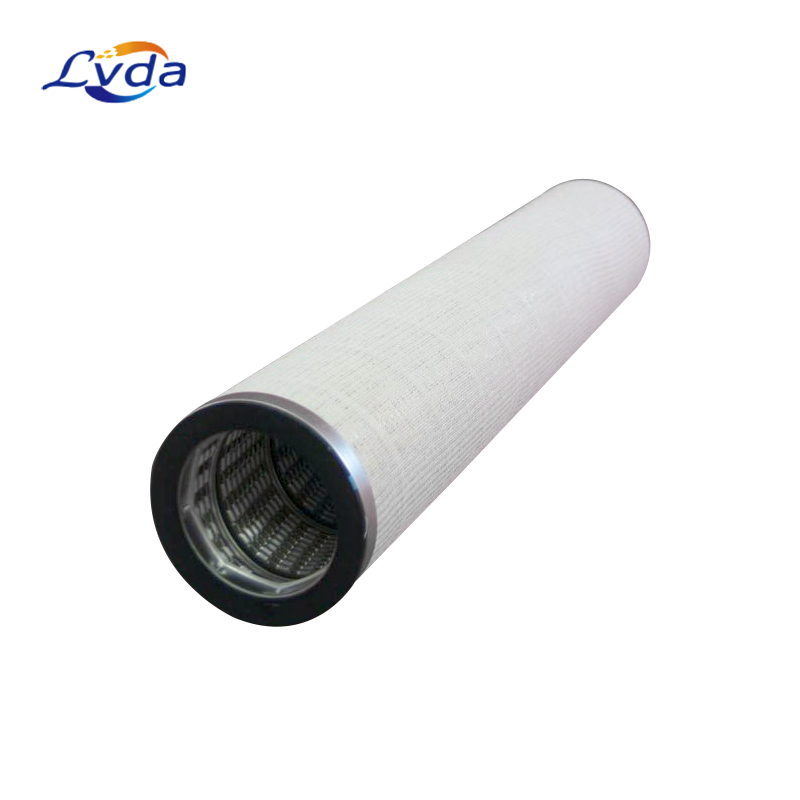

Unit is a Coalescing Filter Element designed with Fiberglass Media.
- This unit is rated at Micron: B01 = 200.
Unit features Buna-N (Nitrile) O-Ring / Gasket.
Product features
1. Stable performance
It has the advantages of compact structure, convenient installation, large oil passing capacity, small pressure loss, easy to replace filter element and so on
2. High reliability
Easy installation and maintenance, large filtration area, good filtration efficiency
3. Good temperature and corrosion resistance
4. High strength, even if strong vibration, the fiber does not fall off
Product parameters
Model: | RFG536-CE-1-X |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 2000- 4000h |
Certificate: | ISO9001:2015 |
Quality: | 100% Tested |
Length: | 36.5 |
Outer Diameter: | 5.5 |
Inner Diameter: | 4.25 |
Filter Type: | Depth Elements |
Filtration Selectivity Raring: | 1 MICRON AT 98% EFF. |
Maximum Flow: | APPLICATION DEPENDENT |
Operating Temperature Range: | 275 F MAX |
Initial Differential Pressure: | APPLICATION DEPENDENT |
Center Tube: | STAINLESS STEEL |
End Caps: | STAINLESS STEEL |
Jacket: | COTTON |
Handle: | N/A |
Gasket: | BUNA |
Product application
1. Metallurgy: It is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in oil refining and chemical production, particle removal and filtration of oilfield well water and natural gas.
3. Textile: purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressor, oil and water removal of compressed gas.
4. Electronics and pharmacy: pretreatment filtration of reverse osmosis water and deionized water, pretreatment filtration of cleaning solution and glucose.
5. Thermal power and nuclear power: purification of lubricating system, speed control system and bypass control system oil of gas turbine and boiler, and purification of feed pump, fan and dust removal system.
6. Mechanical processing equipment: lubrication system and compressed air purification of paper machinery, mining machinery, injection molding machines and large precision machinery, and dust recovery and filtration of tobacco processing equipment and spraying equipment.
7. Railway internal combustion engine and generator: filtering of lubricating oil and engine oil.
8. Automobile engine and construction machinery: air filter, oil filter, fuel filter for internal combustion engine, various hydraulic oil filters, diesel oil filters and water filters for construction machinery, ships and trucks.
