The function of filter element is to filter impurities, separate substances and reduce sound. Filter element is to remove iron oxide, dust and other impurities from fuel oil to prevent fuel system blockage, reduce mechanical wear and ensure the stable operation of the engine.
In general, the replacement period of the engine fuel filter element is 250 hours for the first operation, and then 500 hours for each operation after that. The replacement time should be flexibly grasped according to the different fuel quality grade.
When the filter pressure gauge alarms or indicates abnormal pressure or when there is leakage or rupture or deformation on the surface of the filter, it is necessary to check if there is any abnormal phenomenon of the filter. If there is, it must be replaced.
The proper filter element filtration accuracy should reach a balance between filtration efficiency and ash content. The use of the filter element with high filtration accuracy will shorten the service life of the filter core due to the low ash content of the filter cores, thus increasing the risk of the oil filter being blocked prematurely.
Product features
1.Keep the new engine oil starting to flow as fresh as possible.
2. Normalize the oil pressure as far as the filter material has been kept with full filtering function.
3. Extend the engine life as is suggested by car manufacturers.
4. Maximize the oil pump function.
5. Keep engine exhausts as clean as suggested.
6. Extend fuel mileages.

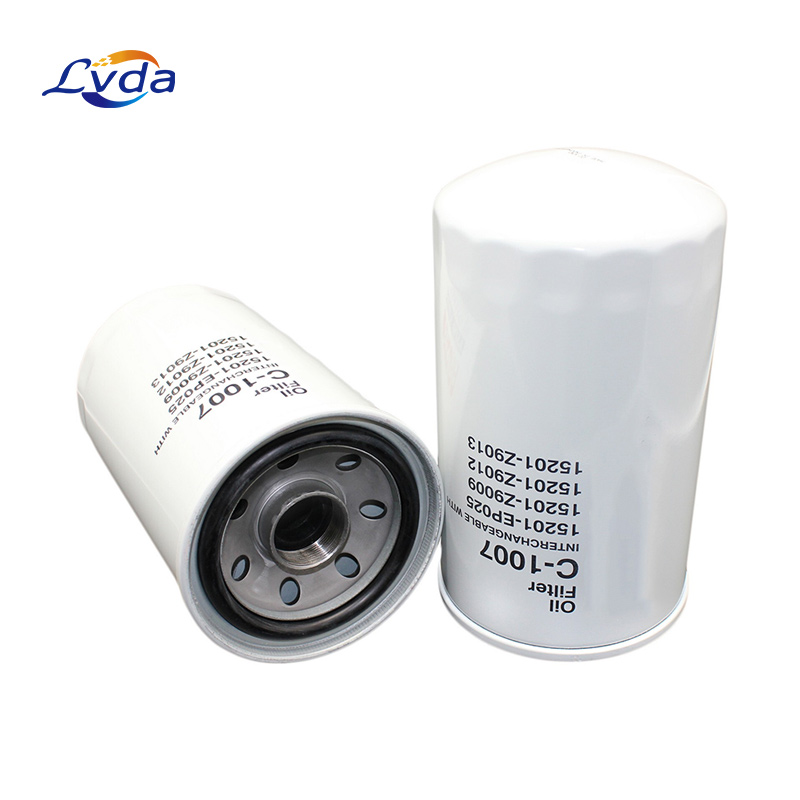

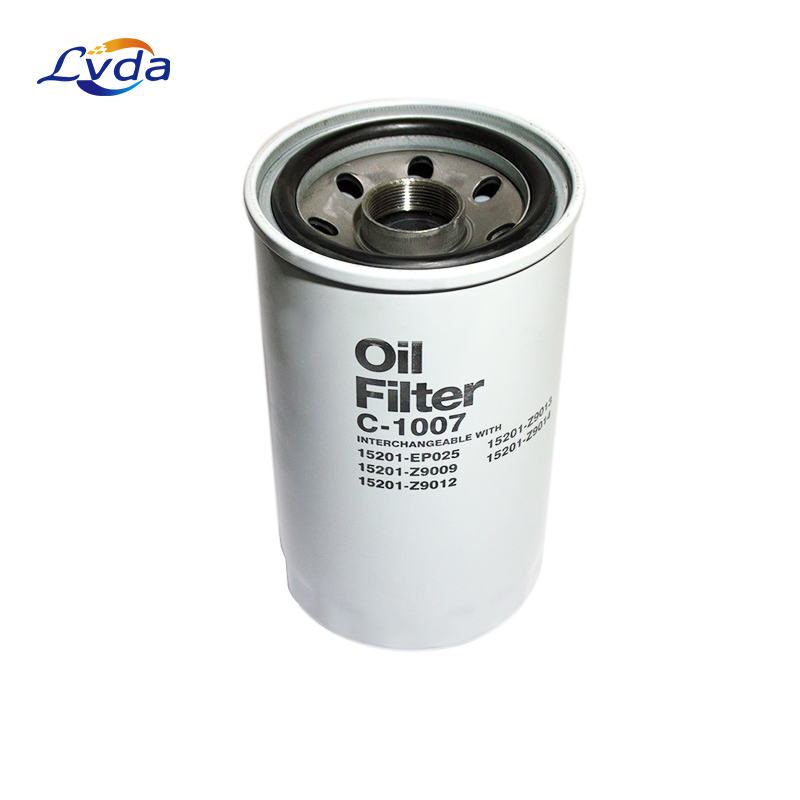

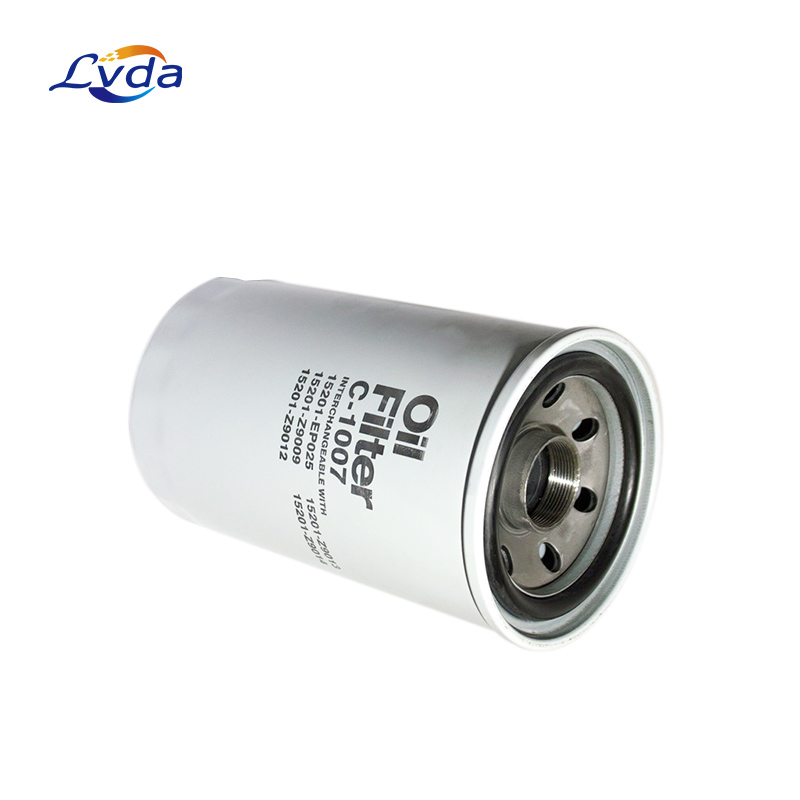

Product parameters
Model | C1007 |
Place of Origin | Henan, China |
Brand Name | LVDA |
Life span | 6000- 8000h |
Certificate | ISO9001 |
Quality | 100% Tested |
Working temperature: | -10~+100℃ |
Working pressure: | -21~210 bar |
model | spin-on |
H 1 ( mm ) | 220 |
OD 1 ( mm ) | 125 |
Thread Size | M36X1.5-6H |
Gasket / packing type | round |
Gasket OD ( mm ) | 107 |
Gasket ID ( mm ) | 90 |
filter type | Oil Filter |
Volume ( m 3 ) | 0.028 |
Product application
1.Automotive
2.Electronics
3.Food & Beverages
4.Chemical
5.Petrochemical
6.Plastics
7.Paint
8.General Industrial application
