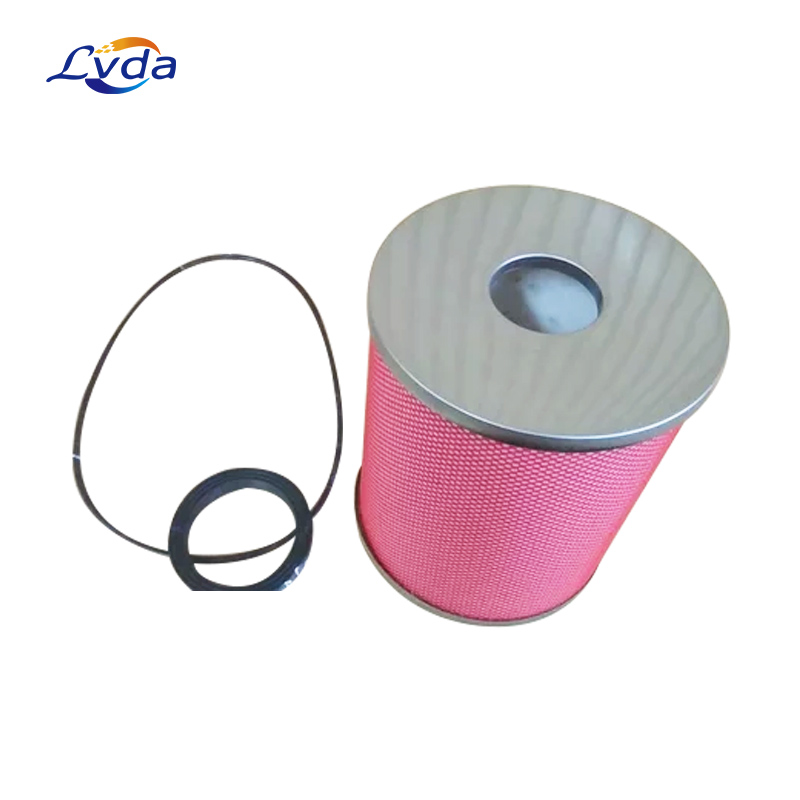

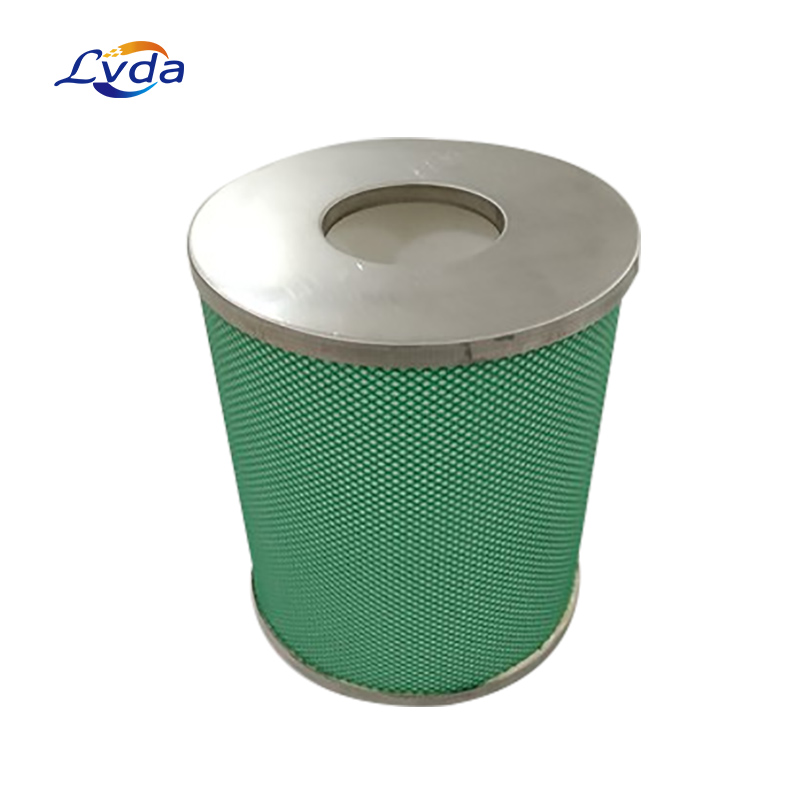

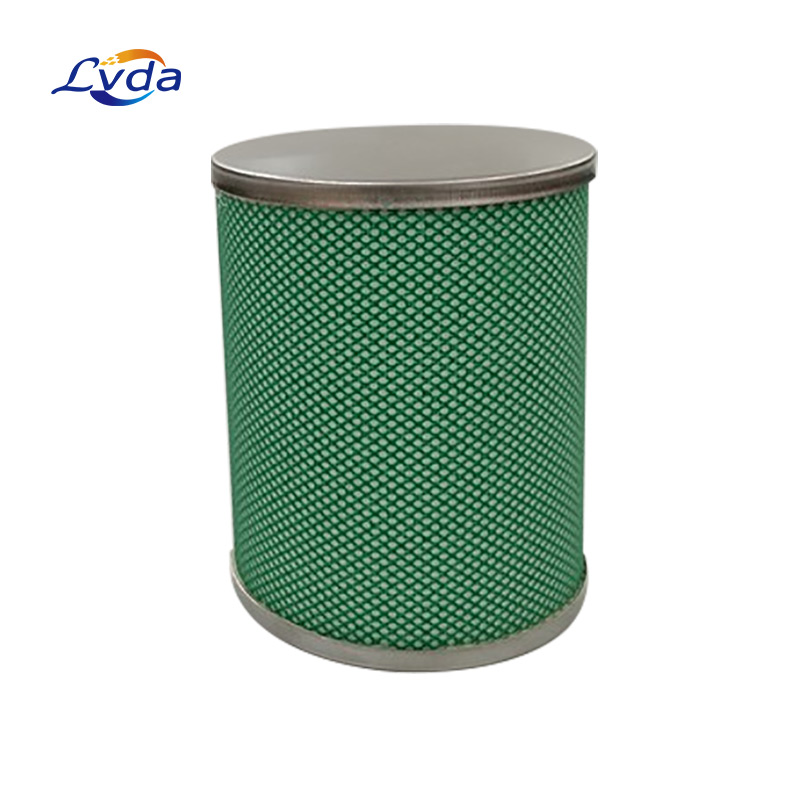

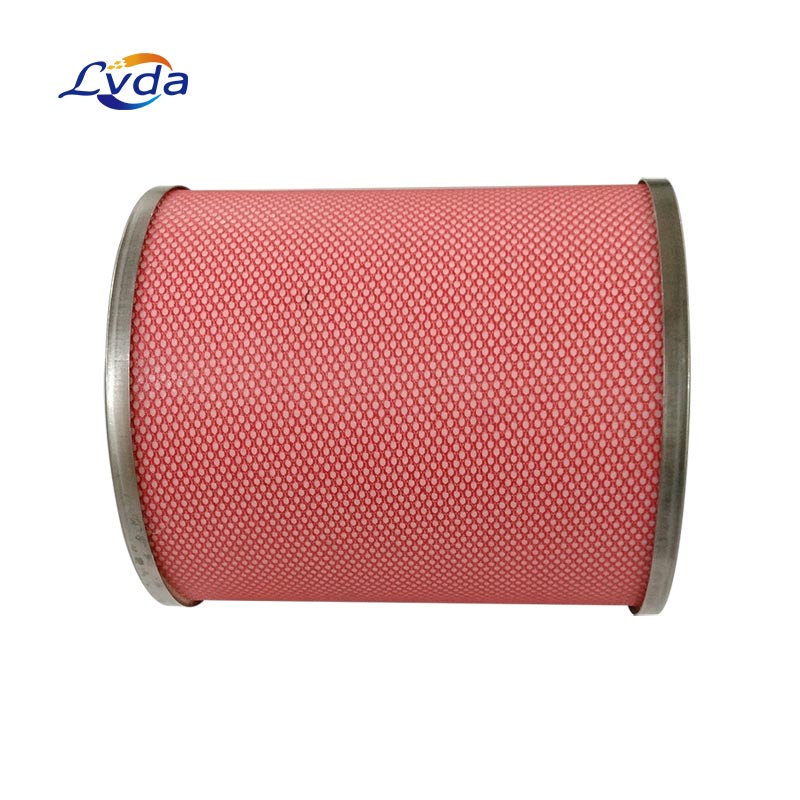

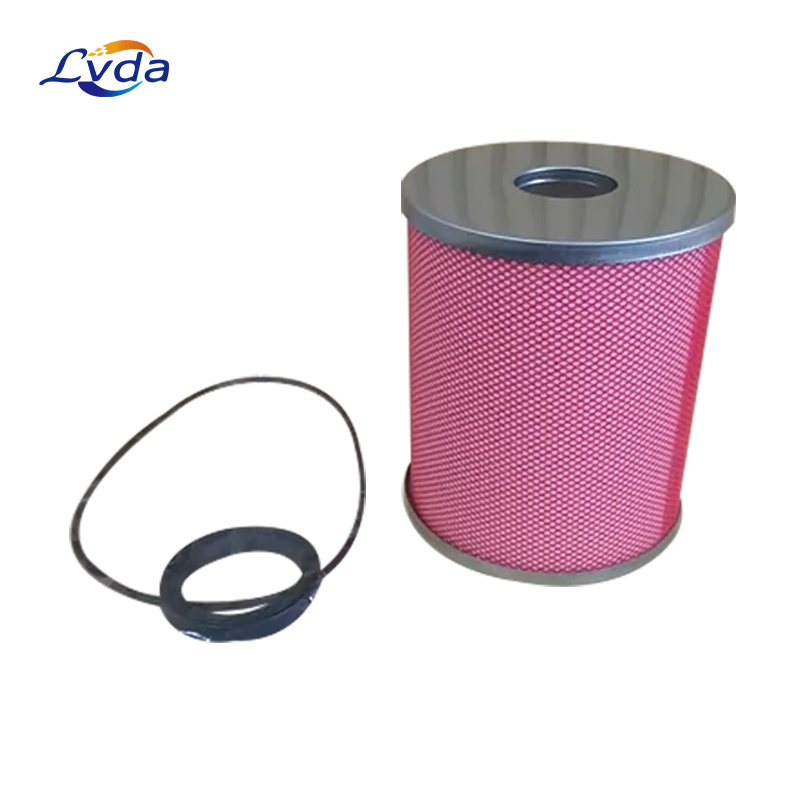

Filter Compatible with SAFL-EL650 SKP MAIN LINE FILTER ELEMENT 1 1/2" PORT

Product Details

150-550 series can be combined with other modular equipment.

SAFL series installed in the main line improve the function of later drier, prolong the expected life span of precision filter and prevent the troubles of machinery by eliminating

the impurities such as moisture, oil, other foreign substances from the compressed air.

Size ( bore x height ) 130 x 150 mm

1) Porous Plastic Coalescing Stage

- Oleophillic Porous Plastic core.

- In addition to removing particulates down to 40 micron.

2) Remove Oil Media

- 0.3 micron remove oil micro fiber media.

- Coalescing element designed to remove oil and water aerosol from process air or gas.

3) Main Media

- Three element choices(0.01 micron(AMD), 0.1 micron(AM), 1 micron(AFL)).

- Pure borosilicate glass micro fiber.

4) Drain Layer

- Non-wetting fiber drain layer.

5) Porous Plastic Coalescing Stage

- In addition to removing particulates down to 40 micron.

6) Coated Mesh

Product features

①Filter element should be changed after 2years of use or when pressure drop reached at 1 bar(0.1MPa).

②When auto drain is used, drain piping should be both 4mm or greater in diameter and less than 1m in length. Avoid insaling drain piping upwards.

③When auto drain is used it is recommended to use at least 1. 5bar pressure.

④When auto drain is inoperable, drain manually by pushing the one-touch fitting upward.

⑤Before disassembling the equipment on the compressed air side to inspect the auto drain or to replace the filter element, confirm that the pressure is set to zero.

Product parameters

Product application

1．Chemical and petrochemical industry

2．Pharmaceutical industry

3．Food & beverage

4．Plastic industry

5．Process filtration

6．Instrumentation air
