Product Details

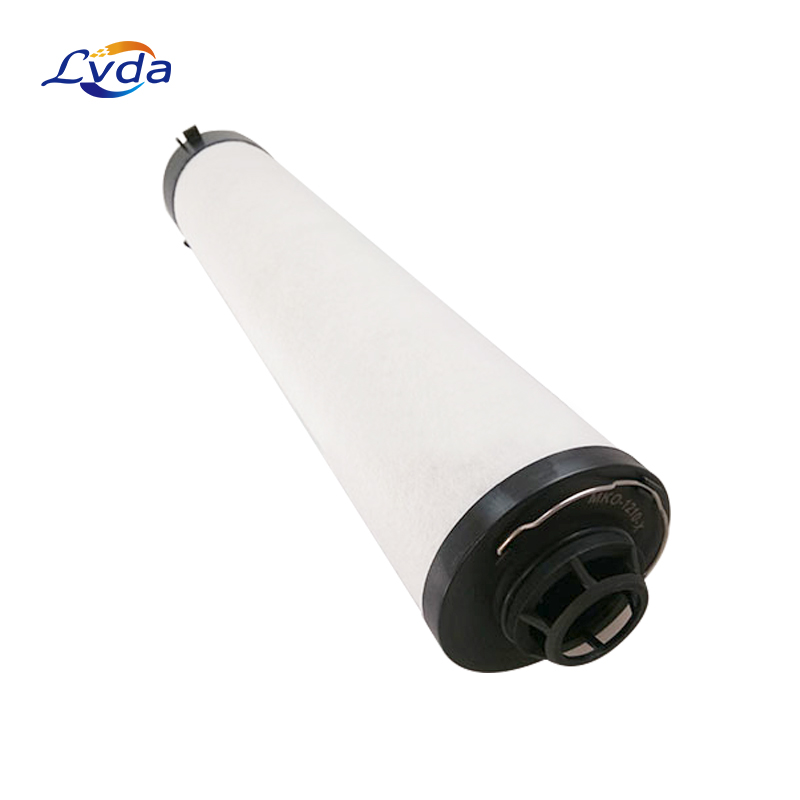

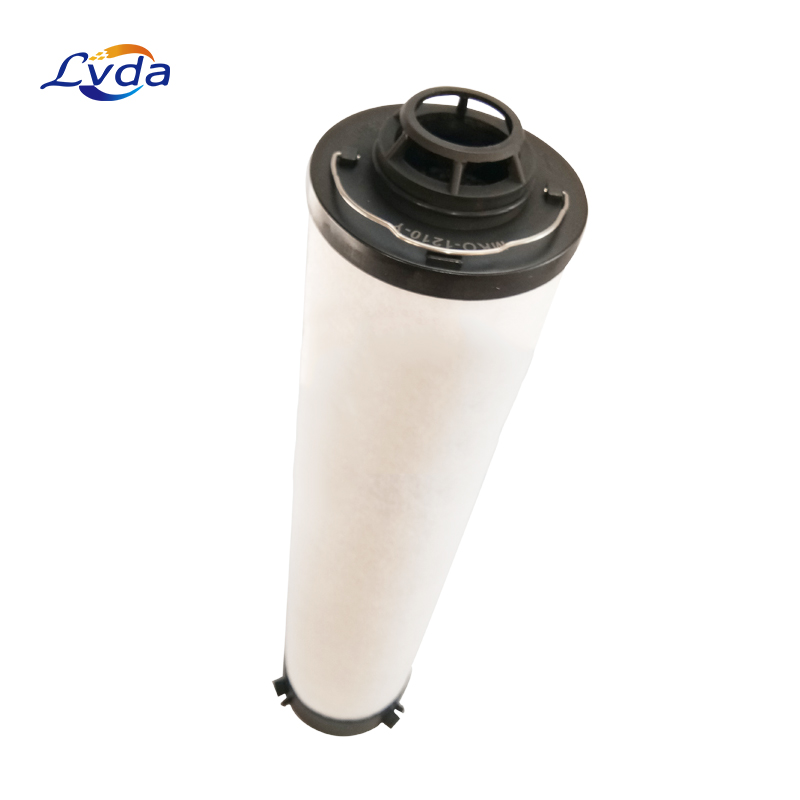

The MKO series of air compressor pipeline filter elements are made of resin-treated microporous filter paper. The filter paper is porous, loose, and folded. It has certain mechanical strength and water resistance. It has high filtration efficiency, simple structure, light weight, and low cost. Convenient maintenance and other advantages. The replacement filter element series produced by our company can completely replace imported products. We use professional technology to make suitable products.
The MKO series of air compressor pipeline Filter Elements are made of resin-treated microporous filter paper. The filter paper is porous, loose, and folded. It has certain mechanical strength and water resistance. It has high filtration efficiency, simple structure, light weight, and low cost. Convenient maintenance and other advantages. The replacement filter element series produced by our company can completely replace imported products. We use professional technology to make suitable products. LVDA is a professional manufacturer of Air Filter elements and Oil Filter Elements in China. It can provide filter element export business for many countries and regions in the world, and can accept customized production according to user parameters. Welcome to consult.
Compressed air is the main safe energy source in large-scale industrial production, so the precision filtration of air is particularly important. Air filters are widely used to filter impurities in the air, such as oil, water, solid particles, etc. If these impurities are not removed, it will affect the service life of the equipment and even threaten the normal operation of the equipment system.
Product features
1.Directly replace the original product with 100% compatibility.
2. The replacement time is 2000 hours, the filtration accuracy is <10μm, and the filtration efficiency is >99%.
3. High-strength frame, anti-sucking, rubber gasket seal to prevent harmful pollution in the ambient air.
4. High-quality F7-grade fiber filter paper is economical and efficient, reducing maintenance costs.
5. To ensure compliance with original manufacturing standards, to ensure a better filtering effect and better air quality.
Product parameters
Model: | MKO150 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Working temperature: | -10~+100℃ |
Working pressure: | -21~210 bar |
Fitration accuracy: | 0.1μm |
Filter media: | Compressed air |
Filter element type: | Micron precision filter |
Installation position: | inlet pipe |
Limit data: | 0.5-60m³/min |
Filtration efficiency: | 0.98 |
Diameter: | 55.00 mm |
Height: | 160.00 mm |
Differential pressure dry: | 80 mbar |
Differential pressure wet: | 190 mbar |
Operating temperature Min.: | 1,5 °C |
Operating temperature Max.: | 65 °C |
Flow direction: | Inside to outside |
Grade: | S |
Solid class: | 1 |
Oil class: | 1 |
Particle retention: | 0.01 µm |
Particle retention rate ISO: | 99.99800% |
Residual oil content: | 0.01 mg/m³ |
Product application
1.Automotive
2.Electronics
3.Food & Beverages
4.Chemical
5.Petrochemical
6.Plastics
7.Paint
8.General Industrial application
