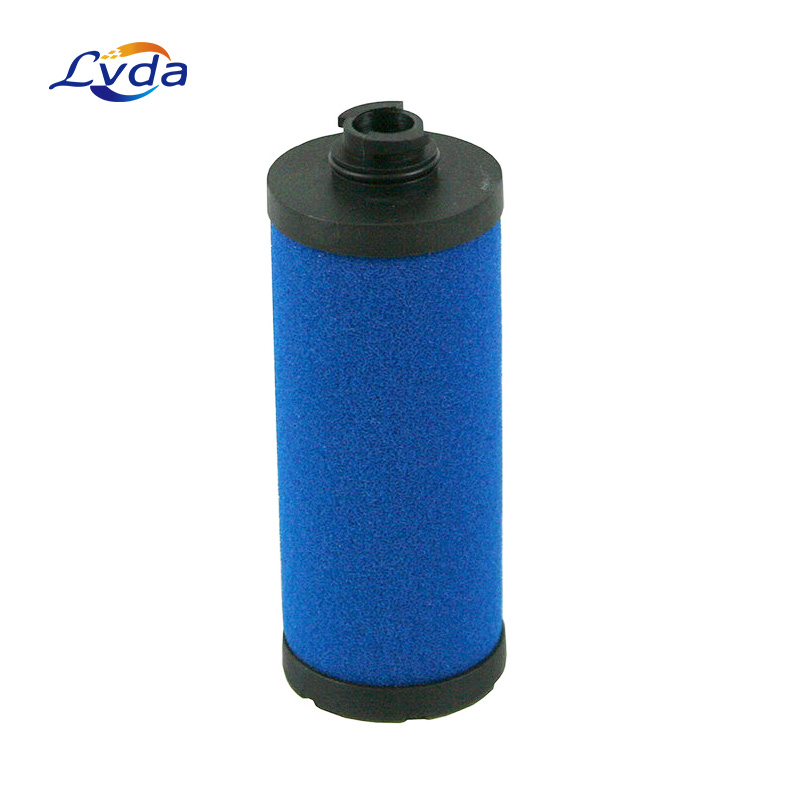

Replacement filter element is suitable for F0034 omi

Product Details

QF - Dust Filtration

PF - General purpose Protection Filtration

HF - High Efficiency Oil Removal Filtration

CF - Activated Carbon Filtration

QF - Pre-filter suitable for the removal of solid particles down to 1 micron including liquids, emulsions and oil particles. The strong mechanical resistance makes this filter the ideal initial protection of a compressed air system to retain impurities and, for example, it is suitable as a post-filter for adsorption dryers.

PF - HF - Interception type filters suitable for solid and oil particles up to 0,1 micron - 0,1 mg/m³ (PF) and 0,01 micron - 0,01 mg/m³ (HF). These filters, by means of the impact, interception and coalescing principles, compel the submicronic liquid particles, which from the inside strain through the element, to collide and thus become larger micro droplets, which will drip the bottom of the filter housing.

CF - There are treatments in industrial plants which in addition to oil free air, require the elimination of oil vapors and odors. For these purposes, the activated carbon filter through the adsorption process attracts all odors and vapors left after desoiling and keep them on the surface of the activated carbon grain molecules. Owing to this PF or HF filters have to be placed before the CF filters. The element is made by thick activated carbon layer covered by fiber coating kept in place by an inside and outside stainless steel wall.

Product features

1.Good as original parts from factory.

2. Reliable quality with lower price, because we have the first hand source;

3.Covering a wide range, larger stock, and shorter delivery time;

4. we can easily and quickly find the right part for you.

Product parameters

Product application

1.Metallurgy:

2. Petrochemical

3. Textiles, electronics and pharmaceuticals

4. Power Plant

5. Steel mills

6. Subway engineering

7. Chemical plant

8. Ships
