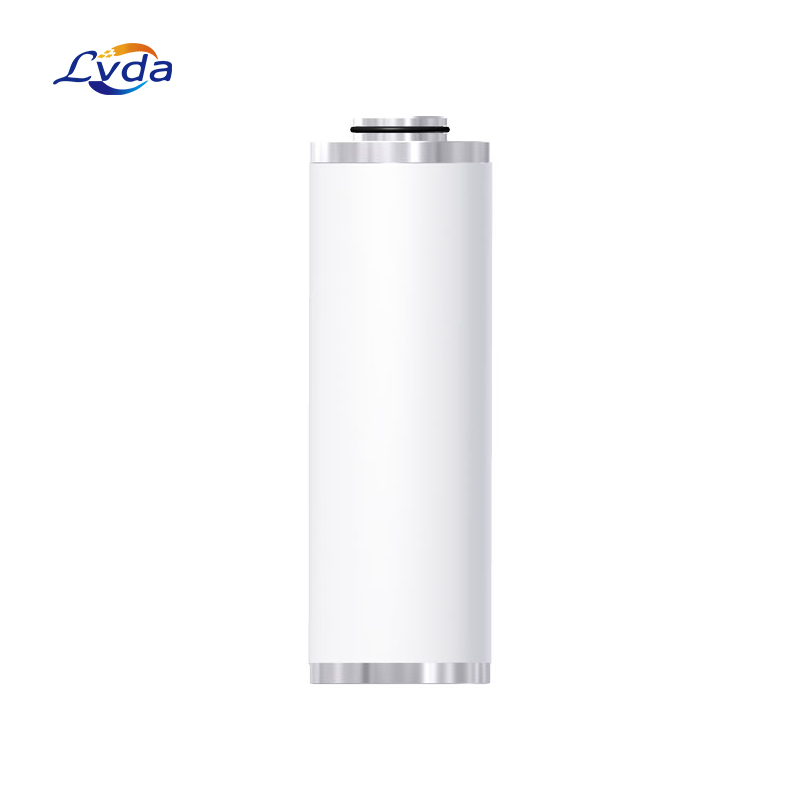

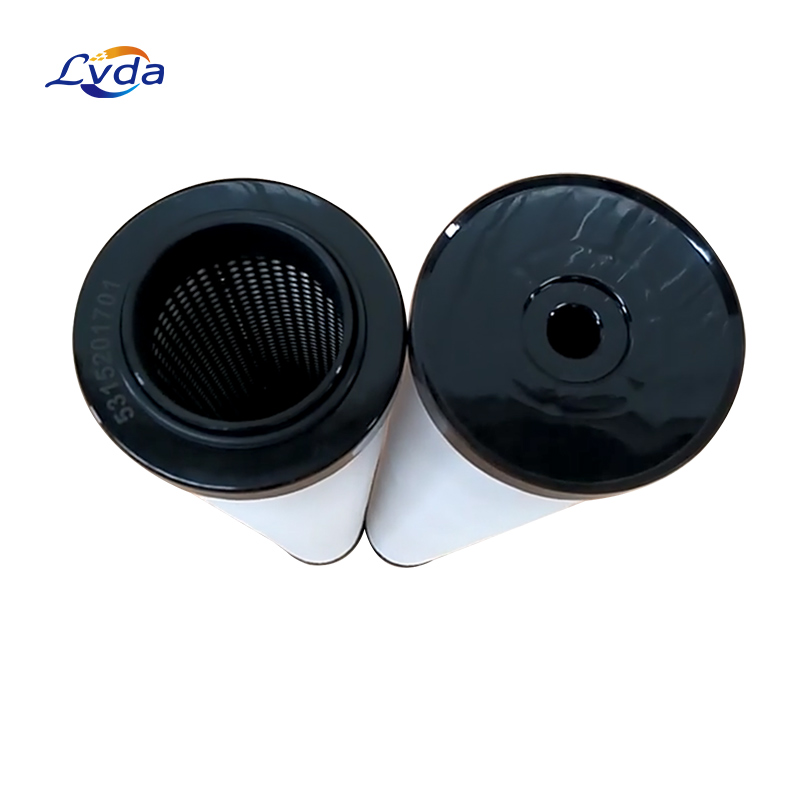

Replacement for Mikropor G1210 X filter element

Replacement for Mikropor G1210 X filter element

Other Brands Compressor Filter

Model Number: MIKROPOR

Diameter: : 105.00 mm

Height: : 500.00 mm

Differential pressure dry: : 20 mbar

Differential pressure wet: : 40 mbar

Particle retention: : 1 µm

Product Details

Precision Filters

In order to achieve the result of high-precision filtration, precision filters use a multi-layer filter material, which contains the borosilicate fiber layer, glass fiber layer, activated carbon fiber layer, multi-layer non-woven layer or stainless steel mesh, etc. The only way is to achieve oil-free, high-quality air without impurities.Precision filters are widely used in gas filtration. Its main function is to remove residual impurities or moisture or bacteria in the gas. The filtered gas can be directly used for medical disinfection, food packaging, and high-purity gas production.

Test Standard

ISO 2941------Collapse & Burst Resistant

ISO 2942------Fabrication & Integrity Test

ISO 2943------Material Compatibility with Fluids

ISO3723------Method for end load test

ISO 3724------Flow Fatigue Characteristics

ISO 3968------Pressure Drop vs. Flow Rate

ISO 4572------Multi-pass Performance Testing

Product features

1.Environmental Production

2.Favourable Price

3.Stable and constant pressure

4.Long service life

5.High efficiency

6.Durable and reliable

Product parameters

Model:	OMP M1210 X/XR Al
Company:	Mikropor
End cap material:	Aluminium
Diameter:	105.00 mm
Height:	500.00 mm
Differential pressure dry:	20 mbar
Differential pressure wet:	40 mbar
Operating temperature Min.:	1,5 °C
Operating temperature Max.:	65 °C
Flow direction:	Inside to outside
Grade:	R
Solid class:	3
Particle retention:	1 µm
Particle retention rate ISO:	99.80%
