Product Details
The filter element is also the main principle of the filter. It is the purification equipment needed to purify the original ecological resources and reuse resources. The filter element is generally used in oil filtration, water filtration, air filtration and other filtration industries. The removal of a small amount of impurities in the filter medium can protect the normal operation of the equipment or the cleanness of the air. When the fluid passes through the filter element with a certain accuracy, its impurities are blocked, and the clean flow matters flow out through the filter element.
TEST STANDARD:
Our filter elements are tested according to ISO 2943
Compatibility with hydraulic fluids ISO 3968
Flow characteristics ISO/DIS 3724
Flow fatigue characteristics ISO/DIS 4572
Filter performance test (Multi-pass test) ISO 2942
Proof of integrity and quality (Bubble point test) ISO 3723
Verification of the end cap stress ISO 2941
Collapse / burst pressure verification
Product features
1. Air permeability of precision filter element:
The filter element is made of American strong hydrophobic and oil repellent fiber filter material, and at the same time, it uses a framework with good permeability and high strength to reduce the resistance caused by passing.
2. High efficiency of precision filter element:
The filter element is made of German fine perforated sponge, which can effectively prevent oil and water from being carried away by high-speed airflow, so that small oil drops passing by can gather at the lower end of the filter element sponge and be discharged to the bottom of the filter container.
3. Tightness of precision filter element:
A reliable sealing ring is used at the joint of the filter element and the filter housing to ensure that the air flow is not short circuited and prevent impurities from directly entering the downstream without passing through the filter element.
4. Corrosion resistance of precision filter element:
The filter element is made of anti-corrosion reinforced nylon end cap and anti-corrosion filter element framework, which can be used in severe working conditions.
Product parameters
Model: | PF0095 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | TS16949/ISO9001:2015 |
Efficiency: | 0.9999 |
Quality: | 100% Tested |
Material: | Superior glass fiber/Stainless steel/Oil paper |

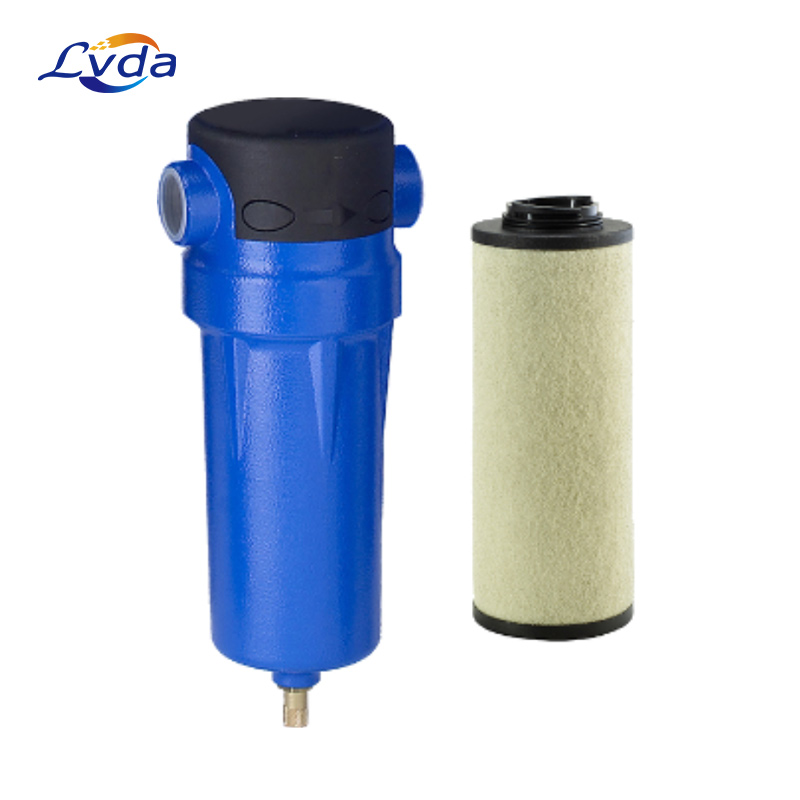

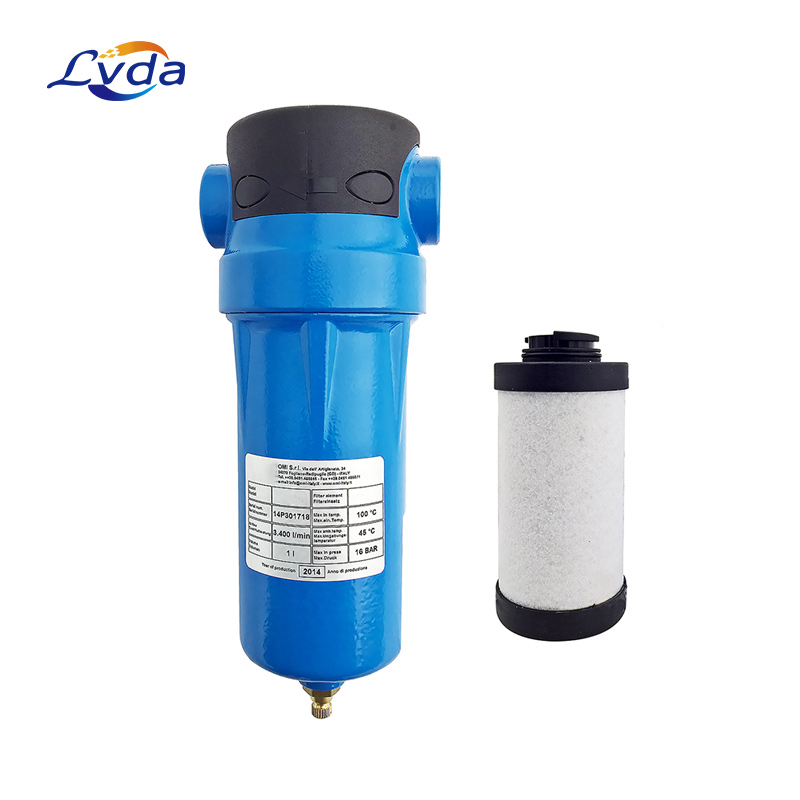

Filter type: | In-line Compressed Air Filter |
Diameter | 60 mm |
Length | 224 mm |
Operating temperature | 1,5 - 65 °C 35 - 149 °F |
Differential pressure (dry) | 50 mbar
0,725 psi |
Differential pressure (wet) | 120 mbar
1,740 PSI |
Particle retention rate ISO | 99,98 % |
Residual oil content | < 0,1mg/m |
Particle Retention (nominal) | 99,9999% (0,1 µm) |
Product application
1.Automotive
2.Electronics
3.Food & Beverages
4.Chemical
5.Petrochemical
6.Plastics
7.Paint
8.General Industrial application
