Product Details

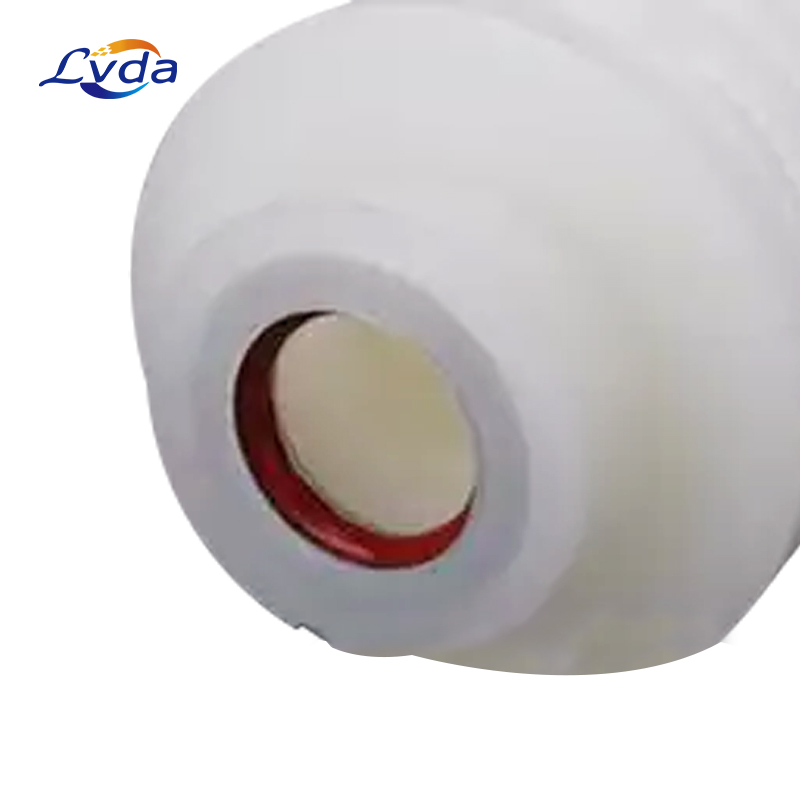

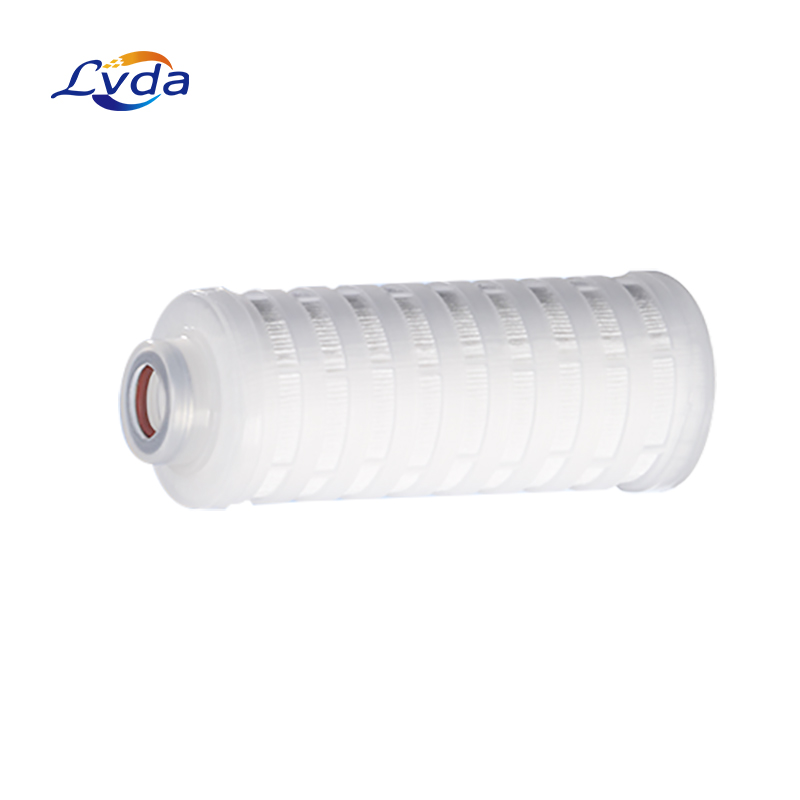

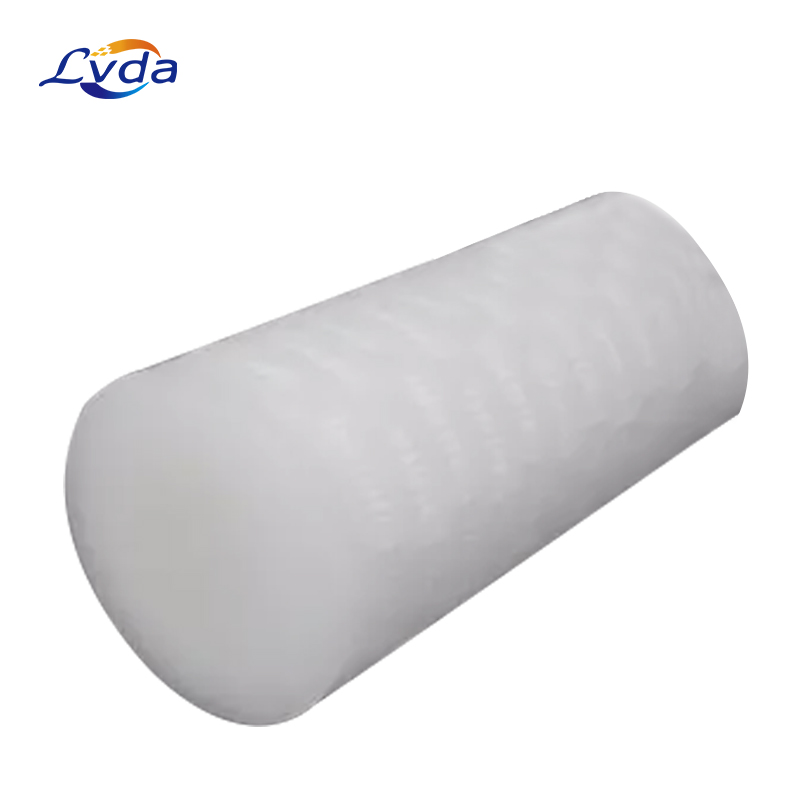

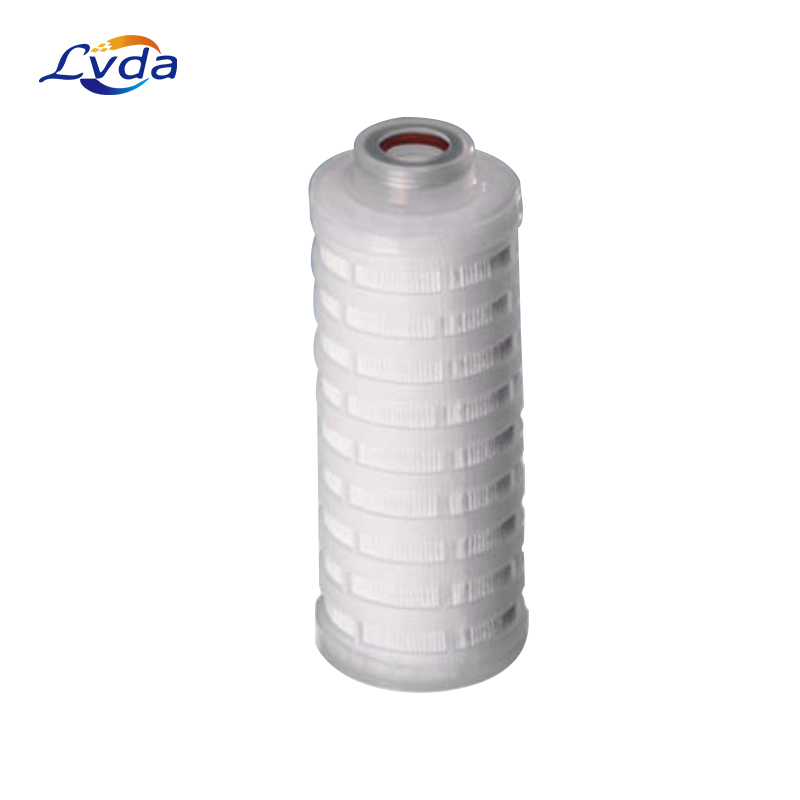

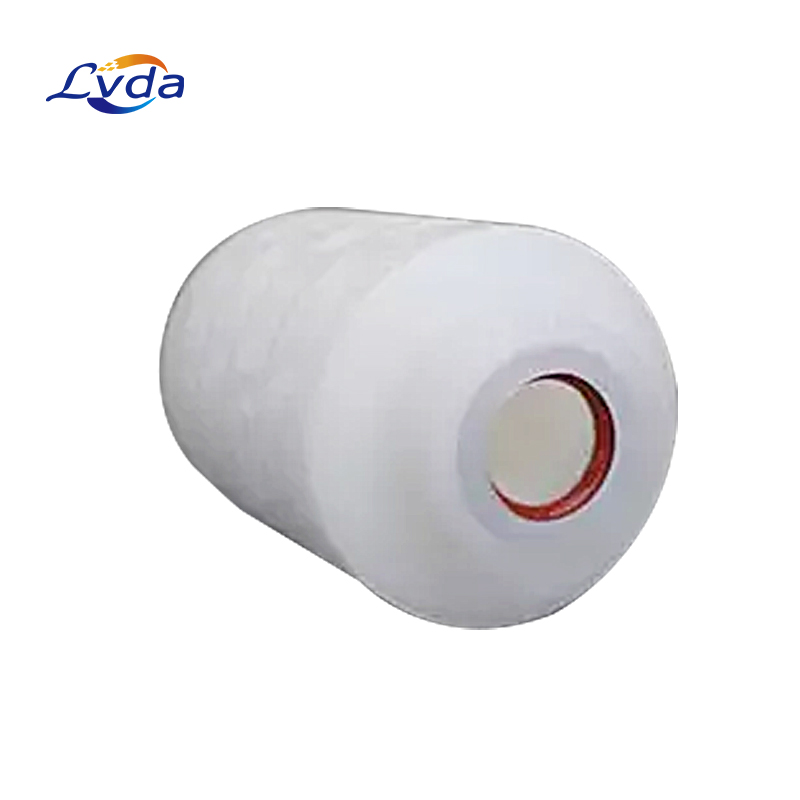

Emflon PFRW Junior Style Filter Cartridge, 0.2µm, 5.3 in, Internal Plug seal with single 116 Silicone Elastomer O-ring.
Emflon PFRW junior style cartridges are sterilizing grade hydrophobic membrane filters designed to provide reliable retention of bacteria and bacteriophages in compressed gas and vent applications. They are suited to handle small gas flow rates in compact installations.
Description The Pall Emflon PFRW filter family has been expanded to include small configurations to address the full range of gas filtration needs of the food and beverage industry. These filter elements feature Pall’s advanced 0.2 micron polytetrafluoroethylene (PTFE) double-layer membranes, pleated with high area into single open-end cartridges. They are built to withstand adverse in situ steaming conditions in either the forward or reverse direction. Even in the presence of high humidity or moisture, often the case in practice, Emflon PFRW cartridges provide sterile effluent and validated performance, ensuring process security. They are the cartridge of choice for small flow critical sterile gas applications
Product features
1.Features Benefits Strongly hydrophobic 100 % PTFE membranes
• Prevents wetting out in humid conditions, even after repeated use and steaming cycles, allowing for unimpeded gas throughput
2.High area pleated, robust double-layer membranes
• High throughputs and low pressure drops, resulting in compact footprint and long life
• Excellent resistance to mechanical damage
3.Multi-cycle in situ steam challenged
• Enhanced steaming resistance
4.0.2 micron sterilizing grade filters based on liquid bacteria removal
• Provides sterile effluent even in humid conditions, resulting in optimal protection of product, improved fermentation yields, and increased security in aseptic processes
5.Water Intrusion Testable (WIT)
• Simplifies in situ integrity testing
6.100% integrity tested prior to dispatch
• Documented quality
7.Individually serialized modules
• Full traceability to materials and production records
Product parameters
Removal Rating | 0.2 µm |
Membrane Material | Double Layer PTFE |
Industry-Specific Certification | W480 Food Contact |
Effective Filtration Area (Metric cm²) | 2800 cm² |
Filter Cartridge Style | MCY-style junior |
Cartridge Length (Imperial) | 40 in |
Cartridge Length (Metric) | 1016 mm |
Cartridge Length (Metric) | 101.6 cm |
Gasket O-Ring Code | H4,Silicone Elastomer |
Bubble Test Option | 100% bubble test |
Maximum Differential Pressure | 5.3 bard @ < 50° C (122◦ F) |
Cage, Core, Fin End and Endcap | Polypropylene |
Food Contact Compliant | Yes |
O-Ring Seal | Silicone Elastomer |
Typical Flow Rate | 64 N³m/h @300 mbard |
Cumulative Time Steam Sterilization | 100 hrs @ 142 °C |
Use | Pre-Filtration |
Product application
1.Metallurgy:
2. Petrochemical
3. Textiles, electronics and pharmaceuticals
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
