Product Details
Air filter is a device for removing particulate impurities in the air. When piston machines (internal combustion engines, reciprocating compressors, etc.) work, if the inhaled air contains dirt and other impurities, the wear of parts will be aggravated, so air filters must be installed. The air filter consists of a filter element and a housing. The main requirements of the air filter are high filtering efficiency, low flow resistance, and can be used continuously for a long time without maintenance.
The air compressor filter is composed of an air filter assembly and a filter element, which is externally connected to the air inlet valve of the air compressor through connectors and threaded pipes to filter dust, particles and other impurities entering the air. Different air compressor models can choose the air filter to be installed according to the size of the air intake.

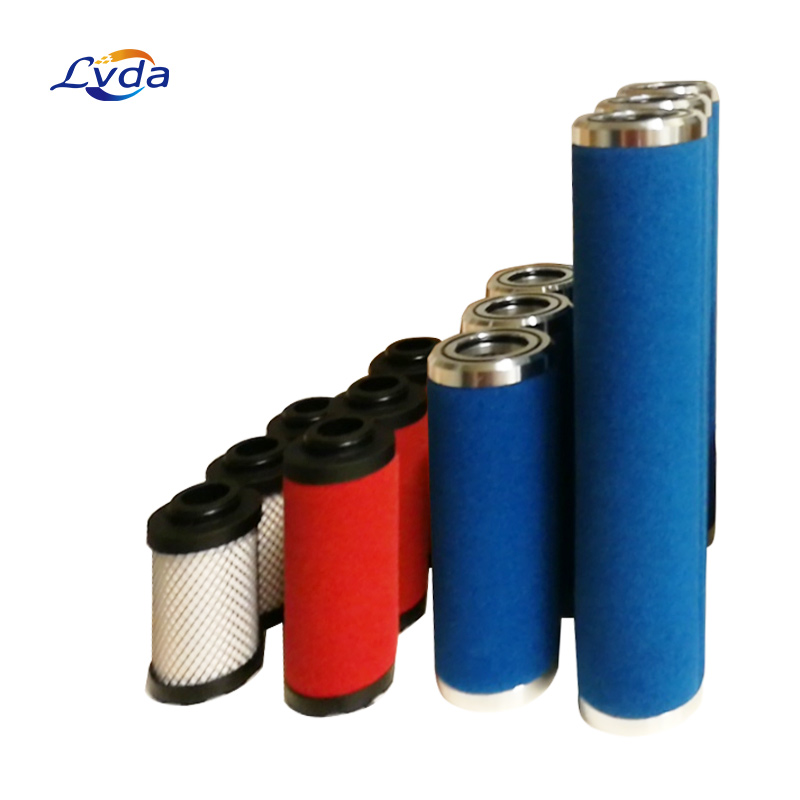

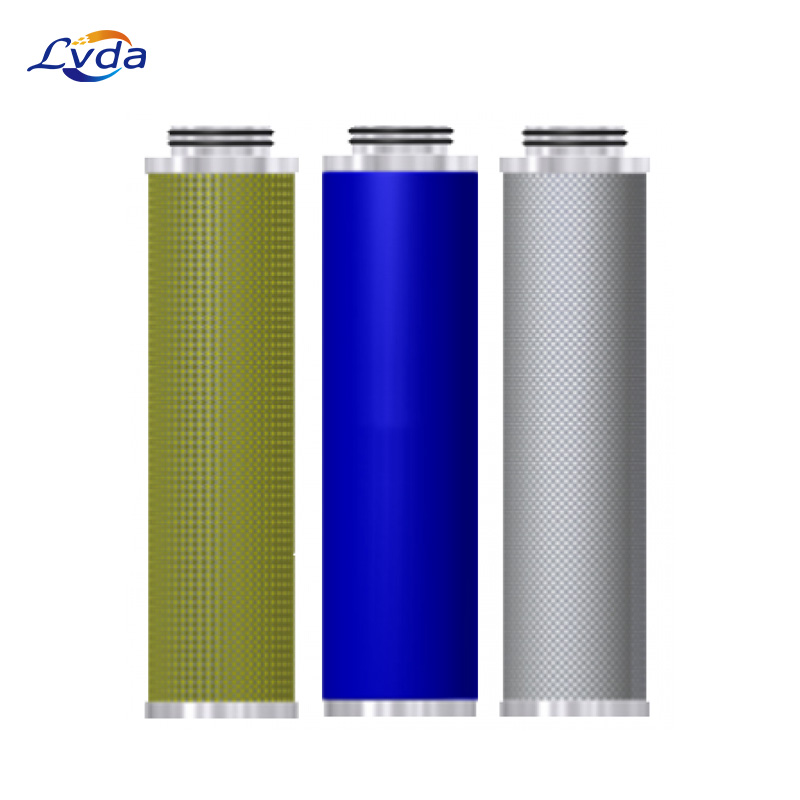

We have designed LVDA BST filter elements for high efficient removal of solid particles, oil aerosols, water, hydrocarbons, vapours and odours from compressed air . LVDA BST filter elements will fit into BEA filter housings
Test Standards:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
Product features
1.Good as original parts from factory.
2. Reliable quality with lower price, because we have the first hand source;
3.Covering a wide range, especially in CCEC/BFCEC/DCEC/XCEC parts, larger stock, and shorter delivery time;
4. we can easily and quickly find the right part for you.
Product parameters
Model: | BST-1400 RA |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | TS16949/ISO9001:2015 |
Efficiency: | 99.99% |
Quality: | 100% Tested |
Material: | steel |
Particle Rentention | 99.9999% (0.01 µm) |
End cap material: | Aluminium |
Diameter: | 120.00 mm |
Height: | 344.00 mm |
Differential pressure dry: | 80 mbar |
Differential pressure wet: | 190 mbar |
Operating temperature Min.: | 1,5 °C |
Operating temperature Max.: | 65 °C |
Flow direction: | Inside to outside |
Grade: | S |
Solid class: | 1 |
Oil class: | 1 |
Particle retention rate ISO: | 100.00% |
Residual oil content: | 0.01 mg/m³ |
Product application
1.Automotive
2.Electronics
3.Food & Beverages
4.Chemical
5.Petrochemical
6.Plastics
7.Paint
8.General Industrial application
