Product Details
AIRFILTER
The air filter is an important part of the air intake system of the air compressor, which consists of an assembly of several air filter elements
FUNCTION
Its main function is to filter out the harmful impurity particles that will enter the air compressor screw,ensure sufficient and clean air to enter the air compressor, reduce the wear of the air compressor screw, bearing, cylinder liner,etc, and prolong the service life of the equipment.
The filtration efficiency is high, which can effectively ensure the reliable operation of the air compressor; The intake resistance is low, the intake resistance is small,so that sufficient air can be supplied.The ash storage capacity is strong, reduces the maintenance times of the air filter, and reduces the cost of use.
LVDA precision filter using multi-layer filter materials(includes borosilicate fibrous layer,glass fiber layer,activated carbon fiber layer,multi-layer stainless steel mesh layer),which can help achieve high quality air without oil and impurities.
Please note that the compressed air of this product is high pressure dangerous gas, and the maximum working pressure of the filter is<1.0mpa. Please check whether the filter safety valve is intact when using. If the safety valve is damaged, please contact the manufacturer or local dealer in time.
Product features

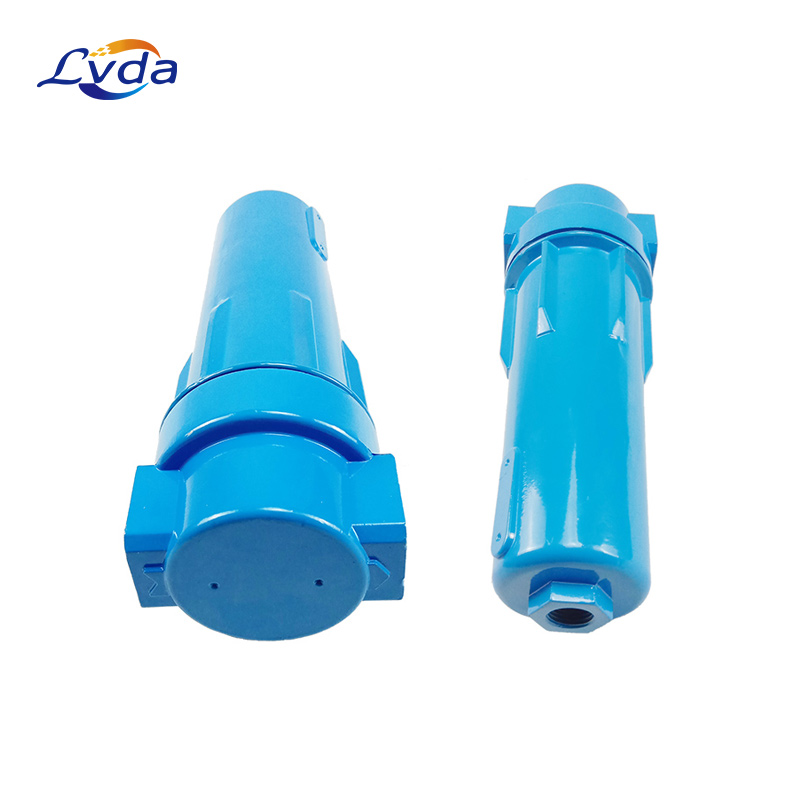

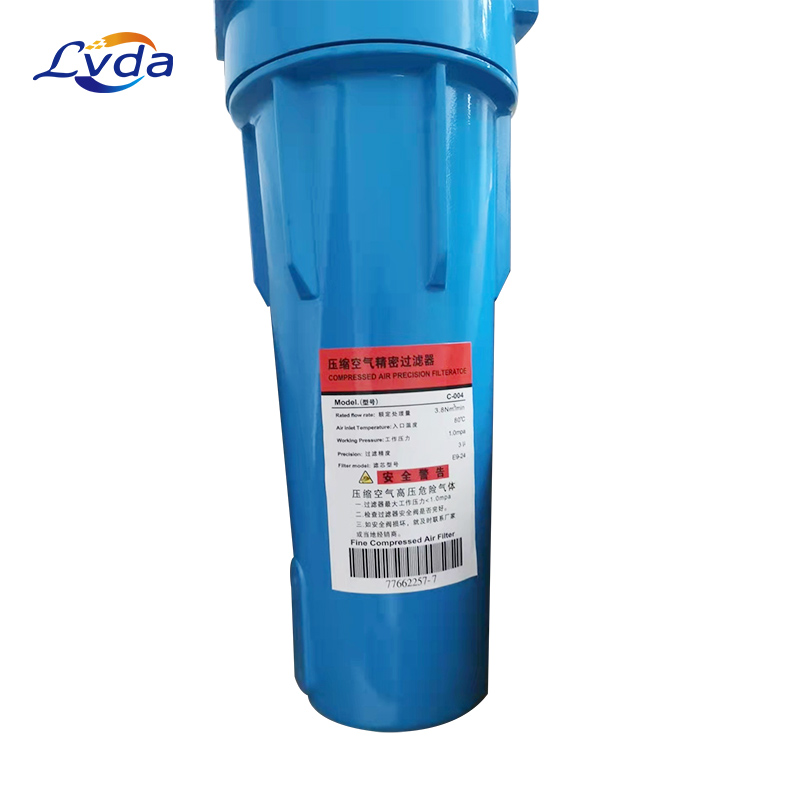

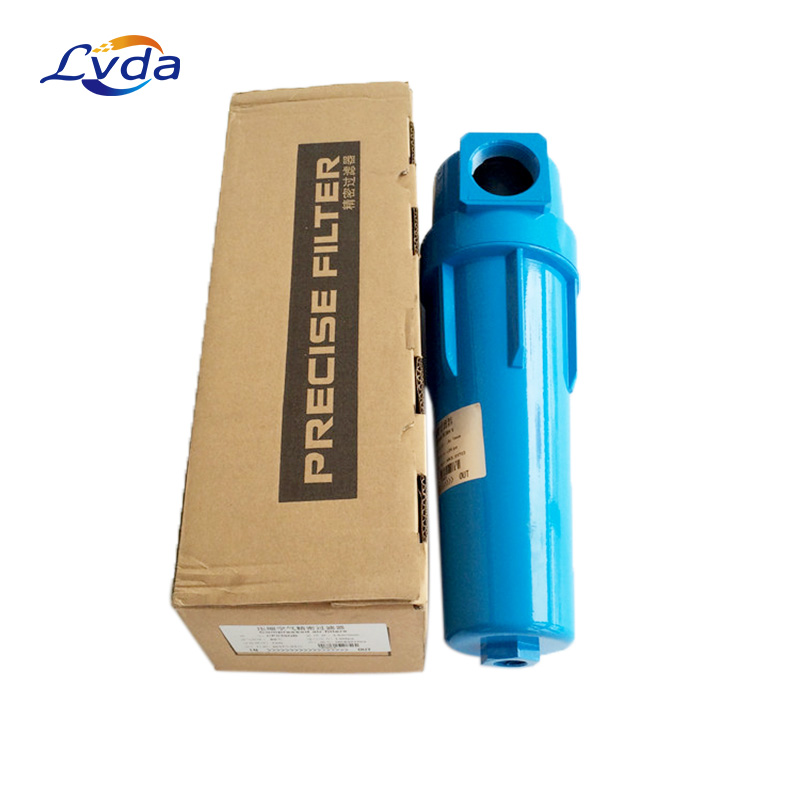

1. Precision Filter Details Show
After compressor working 4000 hours, need
replace the filters.
2.Large Flow, little Pressure Change
big bore desgin, can make the pressure change smaller
3.Wide Range of Application
Transportation, automobile, machinery, manufacturing industry, etc

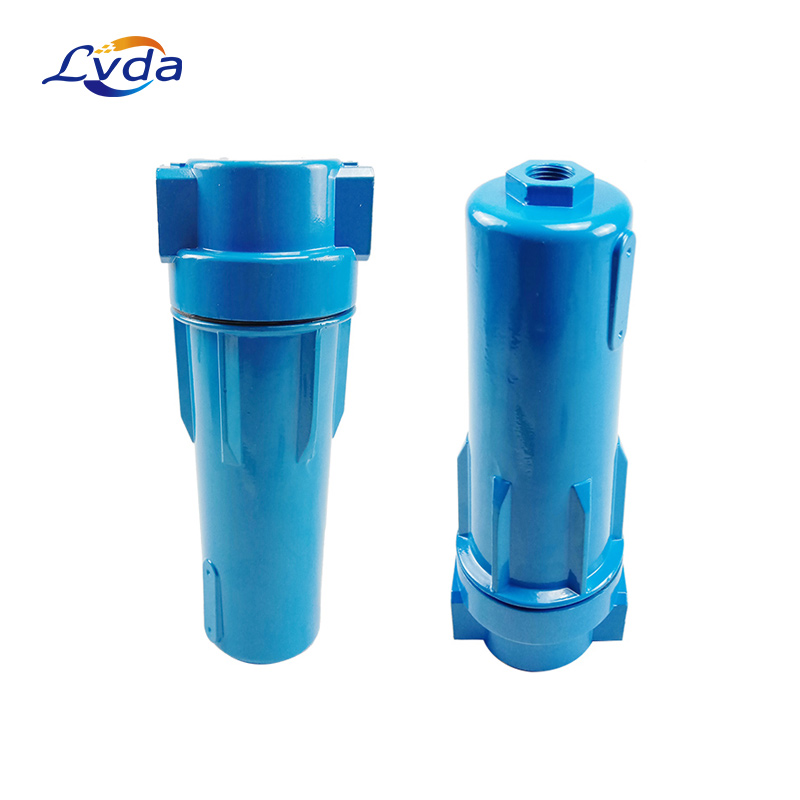

4.Metal Shell. Good Compression Resistance
High strength aluminum alloy metal processing
Corrosion resistance, good compression resistance
Product parameters
Model: | 77662257-7 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | TS16949/ISO9001:2015 |
Efficiency: | 99.99% |
Quality: | 100% Tested |
Material: | Glassfiber, Stainless steel, Filter paper |
Type: | Fine Compressed Air Filter |
Filtering precision: | 3μm |
Filter model: | E9-24 |
Rated flow rate | 3.8 Nm3/min |
Air inlet Temperature | 80℃ |
Working Pressure | 1.0mpa |
Product application
1. Metallurgy: It is used for the filtration of the hydraulic system of rolling mills and continuous casting machines and the filtration of various lubricating equipment.
2. Petrochemical: used for separation and recovery of finished products and intermediate products in the process of oil refining and chemical production, liquid purification, purification of magnetic tapes, optical discs and photographic films in manufacturing, oil field well injection water and natural gas for particle removal and filtration.
3. Textiles, electronics and pharmaceuticals
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
9. Paper mill
