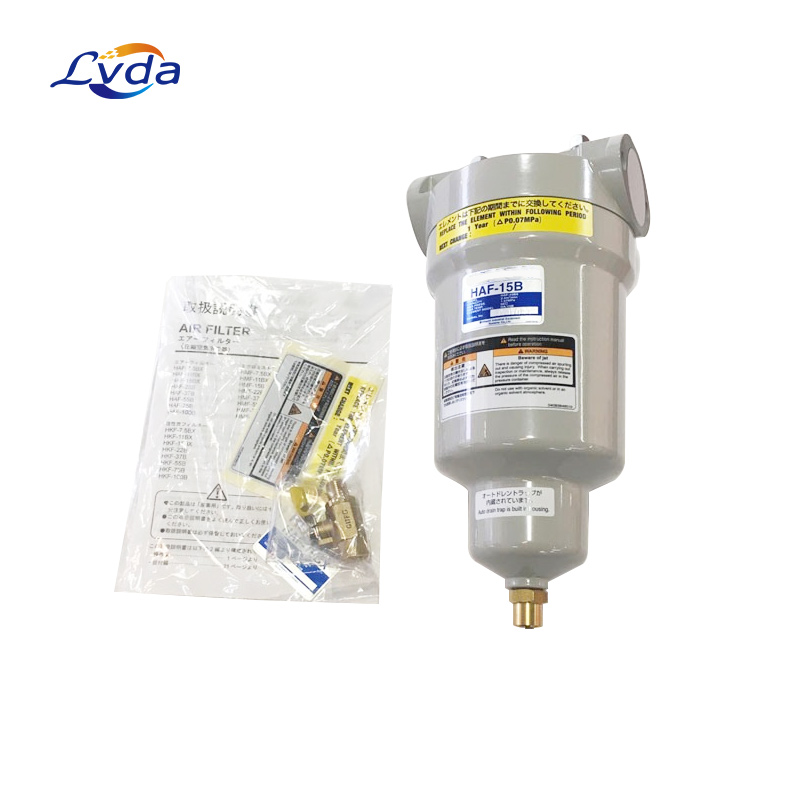

HITACHII FILTER
Provides clean air by removing dirt particles in compressed air.
Line filter
This filter eliminates solid materials ranging in size from1to 3 micron and larger.
Micro mist filter
This filter eliminates oil and solid materials whose sizes are 0.01 micron and larger.The outlet oil content will be 0.0 1wtppm.
Deodorant filter
This filter absorbs and eliminates oil vapors that have unpleasant odor. The outlet oil
content will be 0.003wtppm.
Product features
1.High quality filters conformable to ISO 8573
Line Filter with 1 micro meter filter finess.
Oil Mist Filter with 0.01 wtppm of oil concentrations of outlet air.
Deodorant Filter with 0.003 wtppm of oil concentrations of outlet air.
2.Maintenance Friendly
Unique housing structure gives easy installation and maintenance.
3.High durability
Stainless steel housing provides higher durability.
(Note:Alloyed aluminum for 15B and lower.)
4.Model nomenclature for Easy selection
Filter size number matches the ratings of compressor main motor output
for easy model selection.
Product parameters
Line
Filter | item model | HAF-15B |
Working
range | Inlet air temperature | ℃ | 5~ 60 |
Ambient temperature | ℃ | 2~60 |
Filtration | um | 1 (Note 1) |
Filtration efficiency rating | % | 99.999 |
Pressure
drop | Initial | MPa | 0.005 or less |
Replace | MPa | 0.07 |
Dimensions (diameter x length) | mm | 115x455 |
Pressure differencial gauge connection | inch | 1/4 |
Weight | kg | 2 |
Proper air dryer shall be installed before air filters.
Note:(1) Corresponds to ISO8573-1 class 2 [Contaminants and quality classes] Inlet oil concentrations 3 wtppm.
(2) Corresponds to ISO8573-1 class 1 [Contaminants and quality classes] Inlet oil concentrations 3 wtppm.
(3) Converted figures based on IS08573-2 [Test method for aerosol oil content] Inlet oil concentrations 0.01 wtppm. |
Degree Of Filtering According To Din Iso 8573-1 | R 1µm (coarse filter) |
Solids: Class 3 |

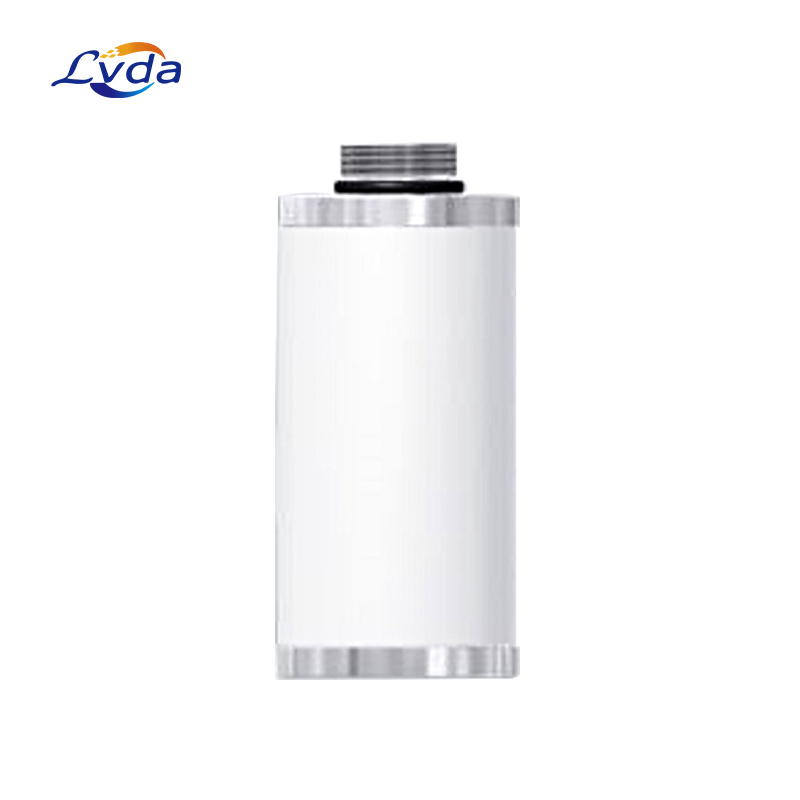

Outer Diameter | 68mm |
Height | 137mm |
Material | Borosilicate Microfiber |
Material Type | folded |
End Cap | made of aluminium |
Support Beam | 1.4301 stainless steel |
Adhesive Type | PU |
Operating Temperatur | up to 65°C |
Pressure Difference Dry | 20 mbar |
Pressure Difference Wet | 40 mbar |
Oil Separation Rate | 0.5 mg/m³ |
Maintenance Interval | Once a year or from a pressure difference of > 350mbar |
