Product Details
Multiple housing sizes, element types and accessories
Optimized flow design - reduced pressure drop by 50%
Performance data is validated according to ISO 12500-1
Filter element can be removed together with filter bowl
Code clip inside the filter bowl can be changed for multiple flow directions through the element
Bayonet filter bowl lock - filter cannot be opened under pressure
Integrated differential pressure indicator
Immersion-coated housing
Structure (V, M, S filter elements):
Filter（STANDARD）includes:Econometer(Differential pressure gauge) and Floating ball drainer
Filter（PLUS）includes:Economizer(Differential pressure gauge) and Floating ball drainer
Filter（SUPERPLUS）includes:Economizer(Differential pressure gauge) and Zero loss electronic liquid level drainer(UFM-D)
Product features
1.Allows for unique and specialized solutions for each application
2.Minimum pressure loss means lower energy consumption compared
3.to conventional filters
4.Reliable filtration of compressed air according to IS0 8573-1
5.Minimizes space needed for filtration installation
6.Dual use housings can be used either as a coalescing filter (inside to
7.outside flow) or a particulate filter (outside to inside flow)
8.Increased safety
9.Allows user to replace filter element at the proper interval
10.Long-term protection against corrosion
Product parameters

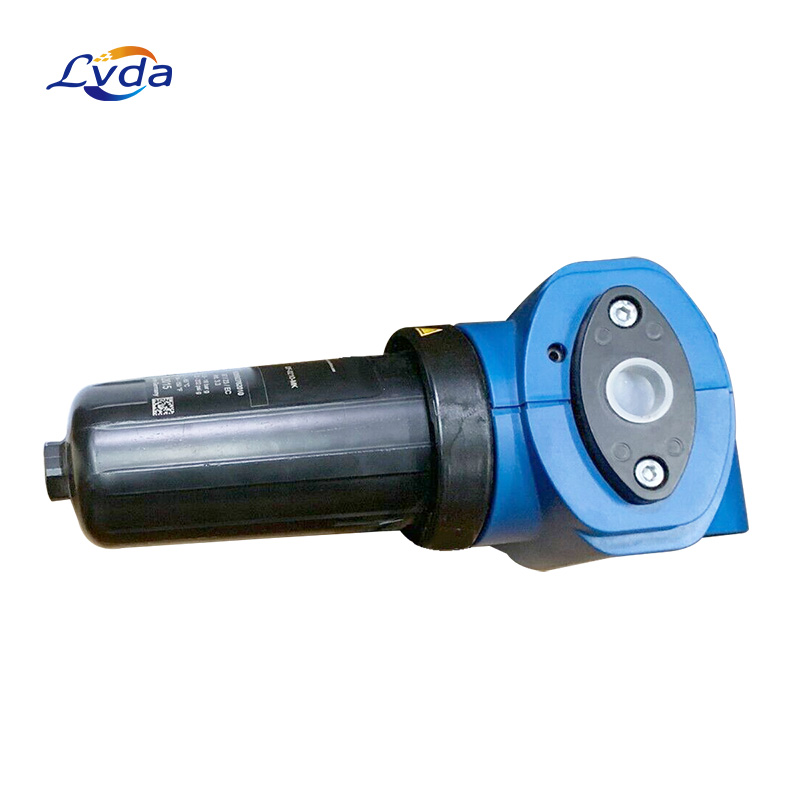

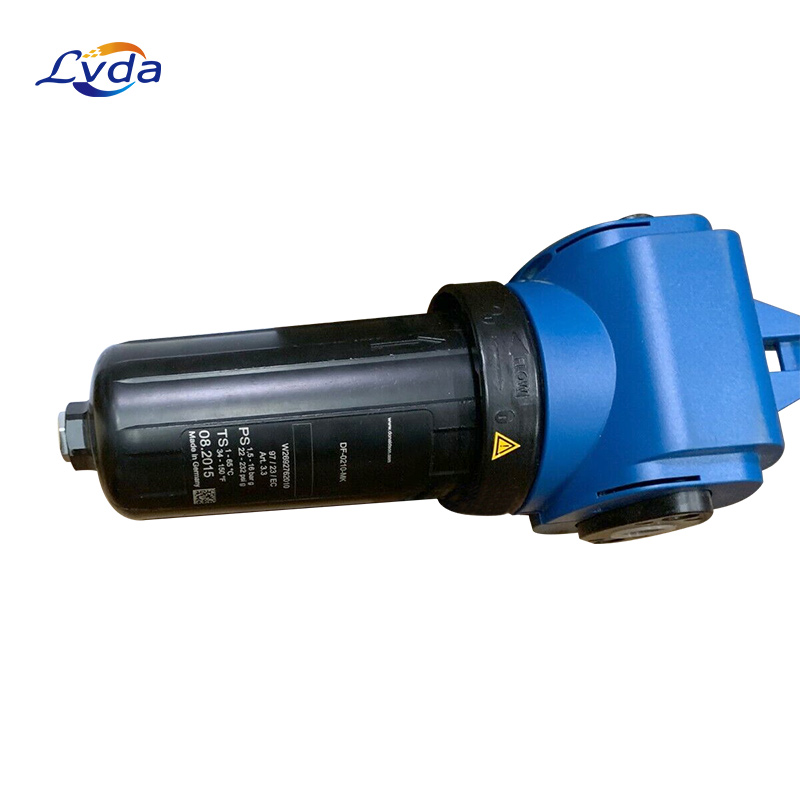

Product name | Compressed air DF filter | Filter housing material |
Brand | Donaldson | aluminium |
Specifications | Filter model | type |
1C484366-KIT | DF-A0210-PS | Standard |
1C484386-KIT | DF-A0210-ZS | High configuration |
Applicable filter element | Filter Size | Application process |
1C486036 | 210 | AK/A activated carbon filtration |
TurboGuard High Flow nomenclature information |
|
|
|
|
Filter | filter element | size | Upper Cover Options | Lower Shell Options |
DF | C | 0035 | M = Econometer(Differential pressure gauge) | K=Floating ball drainer(KA1/2) |
| P | 0070 | Z = Economizer(Differential pressure gauge) | U=UFM-D Drainer |
| B | 0120 | P=Cover plate | S=Plug |
| V | 0210 | 0=No plastic shell |
|
| M | 0320 |
|
|
| S | 0450 |
|
|
| A | 0600 |
|
|
| T | 0750 |
|
|
|
| 1100 |
|
|
Example: DF-S-0210-Z K = DF filter, S filter element, 0210 size, Economizer&Floating ball drainer(KA1/2) |
Type | Element & Housing | Element Only | Residual
0il
Content | Particle Retention Rate |
Initial ∆p
(bar) Dry | Initial ∆p
(bar) Wet | Initial ∆p
(bar) Dry | Initial ∆p
(bar) Wet |
V Coalescing Filter | 0.11 | 1.74 | 0.12 | 0.045 | 1 ppm | 99.9% on 5 micron particles |
M UltraPleatTM Coalescing Filter | 0.075 | 2.03 | 0.14 | 0.105 | 1 ppm | 99.9999% on 0.01 micron particles |
S UltraPleatTM Coalescing Filter | 0.1 | 2.61 | 0.18 | 0.138 | <0.003 ppm | 99.99998% on 0.01 micron particles |
A Carbon Filter | 0.069 | NA | NA! | NA | <0.003 ppm | 1 micron absolute |
MATERIALS |
Filter Housing | Aluminum die cast |
Differential Pressure | DF Standard: Econometer DF SuperPlus: Economizer |
Float Drain | DF Standard: polymer/aluminum mold cast (Note: DF1100 MK comes with UFM-P drain valve) DF SuperPlus: Aluminum, glass fiber reinforced polymer |
Housing Bowl Gasket | Buna |
Model | Capacity1 | Connection (FNPT) | Element | Dimensions | Weight |
Standard | SuperPlus |
Height A | Width I | Height A | Width J | Standard2 | SuperPlus2 |
m3 /hr | scfm | mm | in | Size | Qty | mm | in | mm | in | mm | in | mm | in | kg | lbs | kg | lbs |
DF 0210 | 209 | 123 | 19 | 3/4" | 0210 | 1 | 368 | 14.5 | 152 | 6 | 533 | 21 | 152 | 6 | 2.3 | 5 | 2.7 | 6 |
Product application
1. Construction machinery industry
2. Power industry
3. Petrochemical industry
4. Mechanical processing equipment
5. Agricultural machinery
6. Transport vehicles
7. Ships
