Product Details

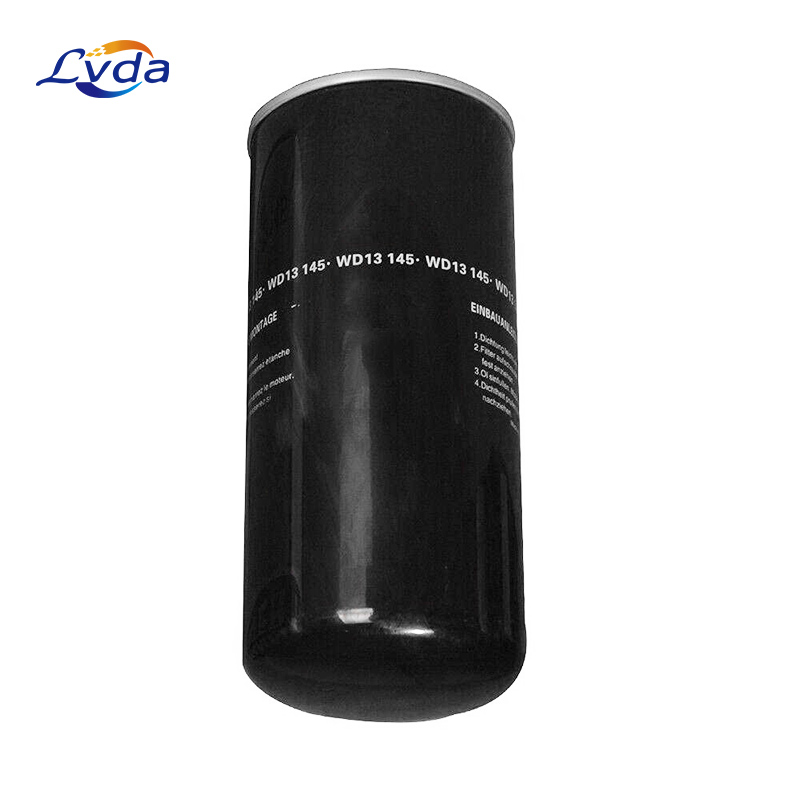

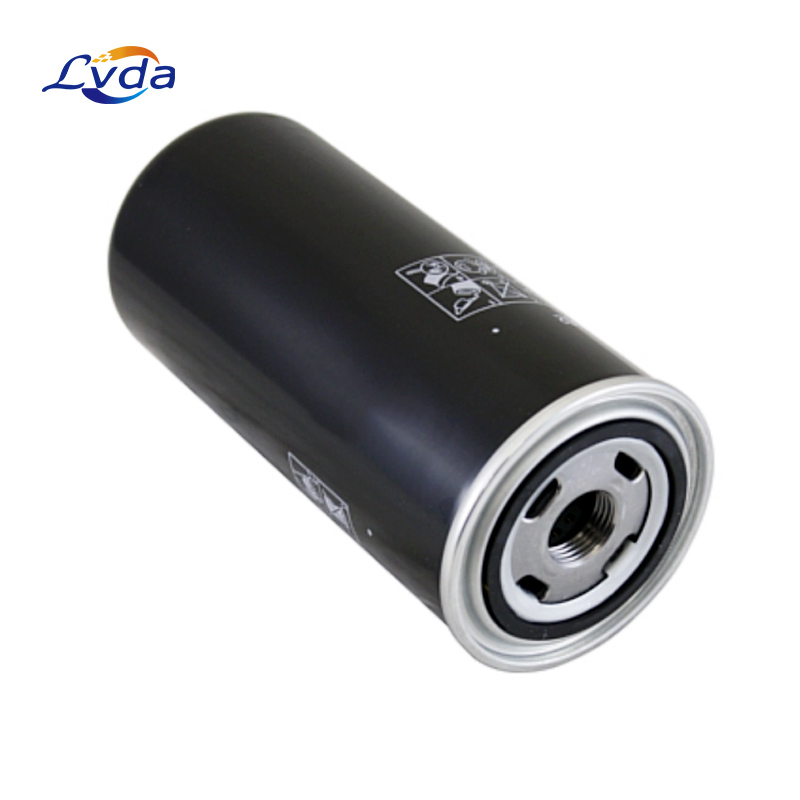

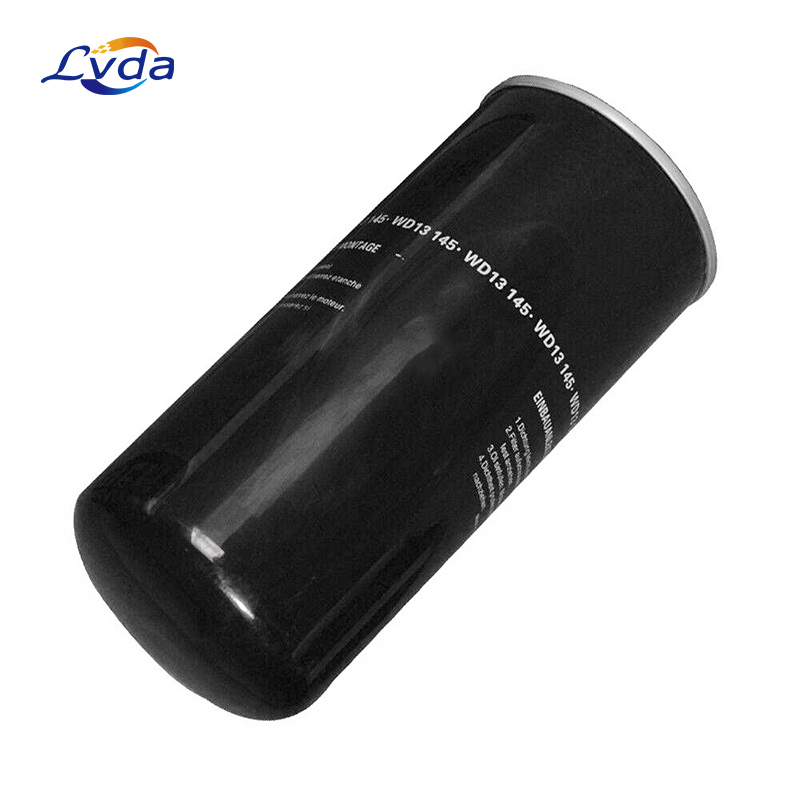

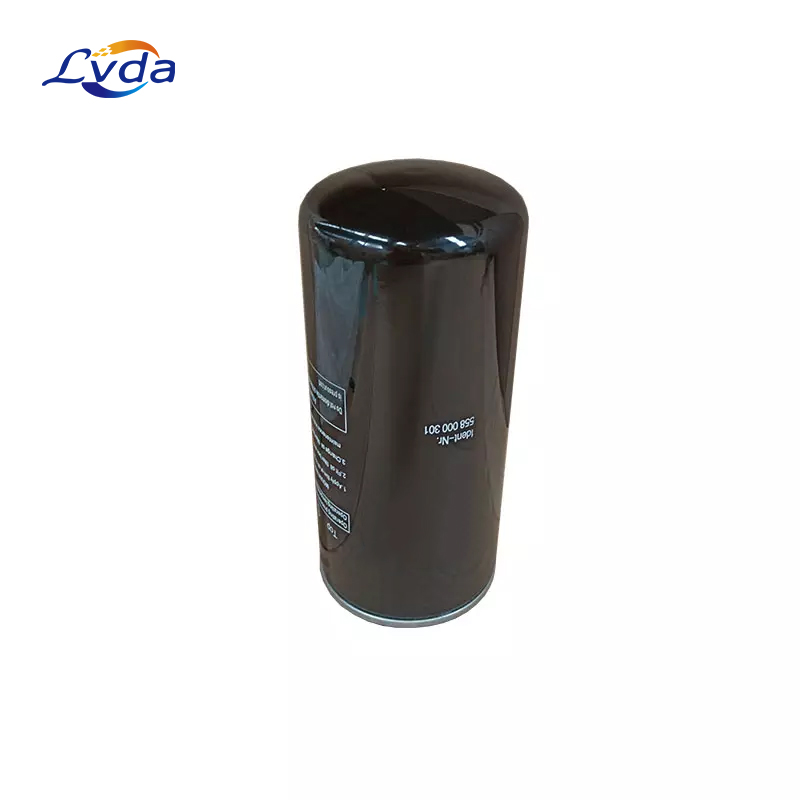

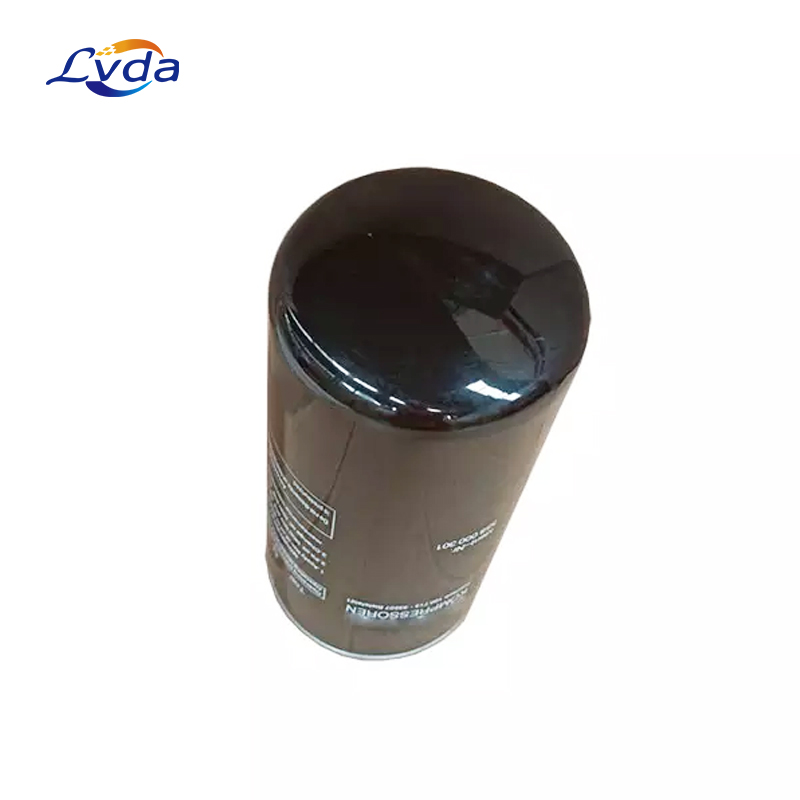

The function of the oil filter 558000301P of the air compressor is to enter the oil containing compressed air generated by the main engine into the cooler, enter the oil air filter element for filtering after mechanical separation, intercept and polymerize the oil mist in the gas, form oil droplets concentrated at the bottom of the filter element and return to the compressor lubrication system through the oil return pipe, so that the compressor can discharge clean, high-quality compressed air; In short, it is a device to remove solid dust, oil and gas particles and liquid substances in compressed air.
The oil filter 558000301P of the air compressor is used to filter impurities, gums and moisture in the oil and deliver clean oil to all lubricating parts.
In order to reduce the friction resistance between the relative moving parts in the engine and reduce the wear of the parts, the oil is continuously delivered to the friction surfaces of the moving parts to form a lubricating oil film for lubrication. The engine oil itself contains a certain amount of gum, impurities, water and additives. At the same time, during the engine operation, the introduction of metal debris, the entry of impurities in the air, and the generation of oil oxides make the impurities in the oil gradually increase. If the engine oil directly enters the lubricating oil circuit without filtering, the impurities contained in the engine oil will be brought to the friction surface of the motion pair, accelerating the wear of parts and reducing the service life of the engine.
Product features
1. Extensive Coverage:
Provide filter requirements for the world's major well-known brand machinery to achieve global coverage.
2. Precise Positioning:
Through early communication and assistance, clarify customer needs, and accurately position the product system and market price.
3. Technology Leadership:
Using a number of independent patented technologies, the production has extraordinary stability and reliability.
4. Special Development:
According to the model you provide, we can customize high-quality products for you.
5. Energy Efficiency:
Carefully implement the industry standard, choose the best filter material, save maintenance cost for users, improve the rate of return on investment.
Product parameters
Burst Pressure (BURST-P) |
6.9 bar |
Filtration Media (FILT-MED) |
Cellulose 40 µm |
Media type (MED-TYPE) |
Cellulose |
Filtration Rating (F-RATE) |
40 µm |
Body Height (H-0) |
210 mm |
Total Height (H-TOTAL) |
210 mm |
Anti-drain back valve (RSV) |
Yes |
Thread (TH) |
UNF 1 inch Female Bottom 12 |
Type (TH-type) |
UNF |
Thread Size (INCH) |
1 inch |
Orientation |
Female |
Position (Pos) |
Bottom |
Treads per inch (TPI) |
12 |
Bypass Valve Opening Pressure (UGV) |
2 bar |
Product Net Weight (WEIGHT) |
0.8 Kg |
Smallest Inner Diameter (Ø IN-MIN) |
62 mm |
Outer Diameter (Ø OUT) |
96 mm |
Stat. HS-Code |
84149000 |
Product application
1. Construction machinery industry: excavator, loader, roller, rotary drilling rig, paver
2. Power industry: generator sets, mobile power stations
3. Petrochemical industry: fuel dispensers, oil tankers, mobile fuel tankers
4. Mechanical processing equipment: various mechanical hydraulic system filters such as machining center, lathe, milling machine, bending machine, etc
5. Agricultural machinery: harvester, tractor, lawn mower
6. Transport vehicles: heavy trucks, mixer trucks, buses, sprinklers
7. Ships
