Product Details

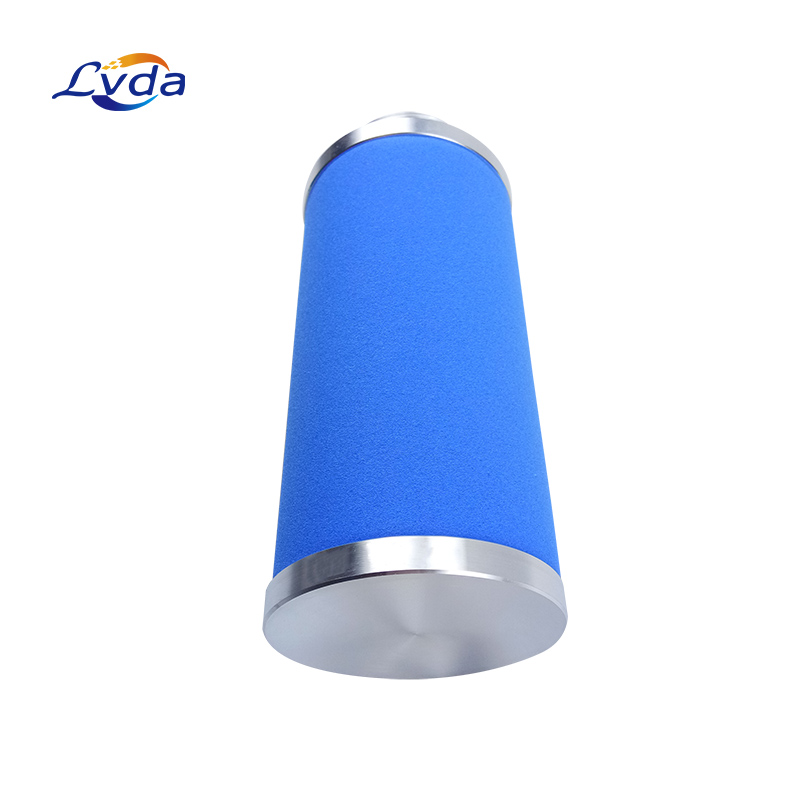

The ULTRAFILTER FF03/10 filter element replacement is built with the highest quality materials and workmanship. This coalescing filter element offers equal to or better filtration performance based on the original OEM filter specifications.
Coalescing filter elements are used to remove water, oil vapor and other contaminants from a compressed air line. These coalescing filters provide the highest level of clean compressed air with a minimum loss of pressure. Our coalescing filter elements are tough enough to hold their shape under pressure and maintain even pressure differentials to avoid collapsing of the filter element.
The ULTRAFILTER FF03/10 filter element equivalent is manufactured with the highest quality standards including: ANSI / CAGI Institute ADF 400-1999 Compressed Air and Gas, ISO / FDIS 8573-4 and code number of sale 1DJ40 U.S. Government. We have replaced all major brands of OEM and replacement filters in tens of thousands of applications.
Line filter, also called as precision filter, or fine filter, is used in air compressor for removing oil, moisture, dust particles.

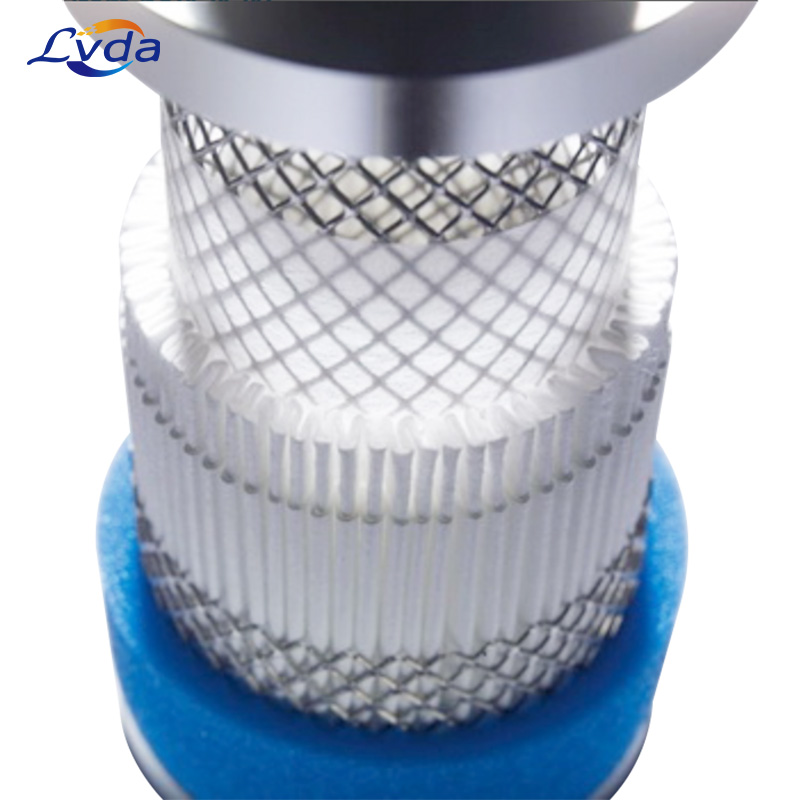

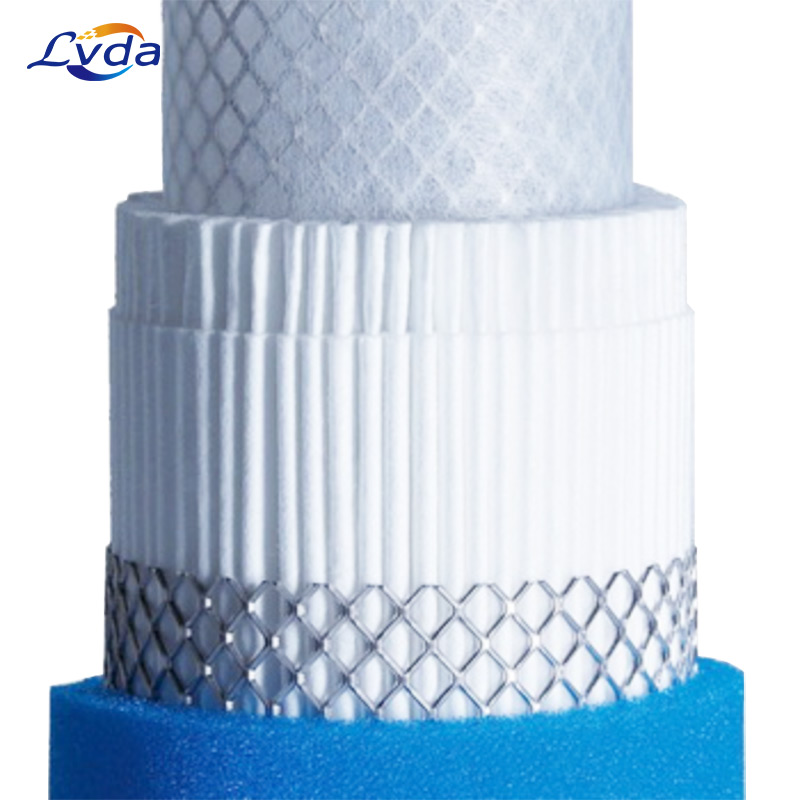

LVDA Line filter use America imported fine glass fiber and adopt our advanced design, so it’s with good permeability, high strength, high efficiency, and it’s air tightness and resistant to corrosion.
Use LVDA line filter to protect your compressed air. Our filter is ISO certified, has long lifetime, and can minimize the pressure drops.And its filtering size is up to 0.01 microns!
Product features
1.450 % greater filter media compared to standard elements
2.Lower differential pressure
3.Improved filtration efficiency
4.Greater dirt-capturing capacity
5.70 % less energy costs
Product parameters
Material: | Felt |
Application: | Industry, Medicine, Textile, Metallurgy |
Type: | Fine Filter Element |
Filter Connector: | Flat Connector |
Filtration Grade: | HEPA Filter |
Activated Carbon Filter Type: | Compact |
Remove: | Particles - 99.999% (0.1 m) |
Oil: | 0.1 mg/m3 |
Note: | Removes water, oil aerosols and particles from compressed air and gases. |
Max Differential pressure | 5 bar at 20°C |
Efficiency | 99.999% |
Degree of filtration | 0,01 µm |
Material(s) | Borosilicate, cerex and polyurethane |
Max temperatur | 80°C |
Gasket materials | Perbunan gaskets |
Residual oil content | 0,1 mg/m3 |
Start differential pressure | 0,04 bar |
Connection | Aluminium end caps |
Type | Filtration rate | Effectivity | Residual oil content | Start-up differential pressure |
FF | 0,01 um | 99.999% | 0,1 mg/m3 | 0,04 bar |
MF | 0,01 um | 99.99998% | 0,03 mg/m3 | 0,08 bar |
SMF | 0,01 um | 99.99999% | <0,01 mg/m3 | 0,09 bar |
Product application
1．Chemical and petrochemical industry
2．Pharmaceutical industry
3．Food & beverage
4．Plastic industry
5．Process filtration
6．Instrumentation air
