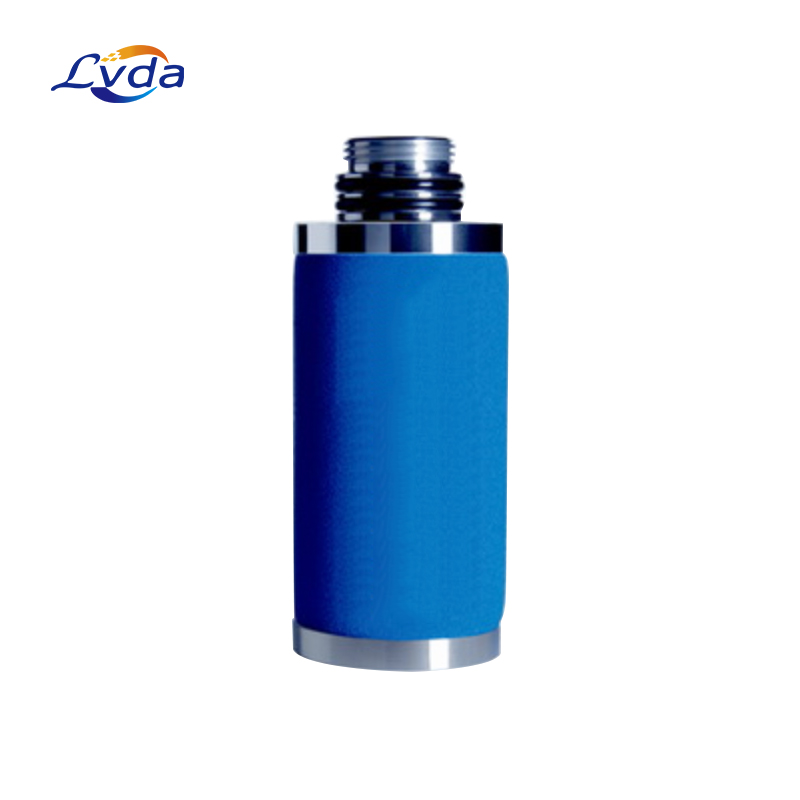

Replacement of Ultra Filter Precision Filter Insert (FF04/20)

Replacement of Ultra Filter Precision Filter Insert (FF04/20)

Other Brands Compressor Filter

Model Number: FF04/20

Working medium : oil, water and solid particles in the air

Filter material : imported fiberglass, filter felt

Filter accuracy : 0.01-5um

Application : air compressor

Filter level : main pipeline dust removal filter, main pipeline oil removal filter, high efficiency oil removal filter, ULPA oil removal filter, active carbon filter

Used part : in the front of air compressor, in the back of the air compressor

Product Details

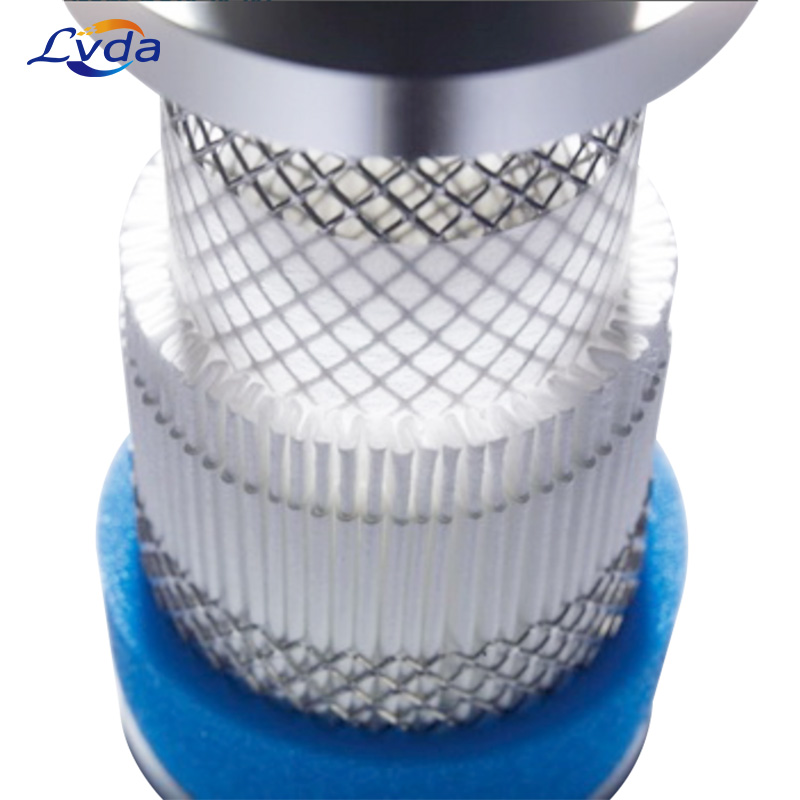

Ultrafilter offers filter elements for most compressed air applications. These high quality filter elements are made with the finest pleating technology and aluminum endcaps. Unique to the industry with their extremely low differential pressure. The FF/MF/SMF filter elements are made with a pleated oleophobic filter media that rejects oil and water. Advanced pleating techniques mixed with nano technology, makes our “High Performance” filters much more effective than a standard filter, as the pleating provides a 450% larger filtration surface per square inch. The special pleating also secures a much larger particle retention capacity. The benefits of using this type of filter is low differential pressure, up to 70% lower energy costs and improved efficiency of filtration.

Ultra filter precision air filter is widely used to filter out the impurities in the air such as oil water solid particles and so on. 2.If we do not remove these impurities they will affect the service life of the equipment.

Product features

1.450 % greater filter media compared to standard elements

2.Lower differential pressure

3.Improved filtration efficiency

4.Greater dirt-capturing capacity

5.70 % less energy costs

Product parameters

Material:	Felt
Application:	Industry, Medicine, Textile, Metallurgy
Type:	Fine Filter Element
Filter Connector:	Flat Connector
Filtration Grade:	HEPA Filter
Activated Carbon Filter Type:	Compact

Max Differential pressure	5 bar@ 20°C
Efficiency	99.999%
Degree of filtration	0,01 µm
Material(s)	Borosilicate, cerex and polyurethane
Max temperatur	80°C
Gasket materials	Perbunan gaskets
Residual oil content	0,1 mg/m3
Start differential pressure	0,04 bar
Connection	Aluminium end caps

Type	Filtration rate	Effectivity	Residual oil content	Start-up differential pressure
FF	0,01 um	99.999%	0,1 mg/m3	0,04 bar
MF	0,01 um	99.99998%	0,03 mg/m3	0,08 bar
SMF	0,01 um	99.99999%	<0,01 mg/m3	0,09 bar
