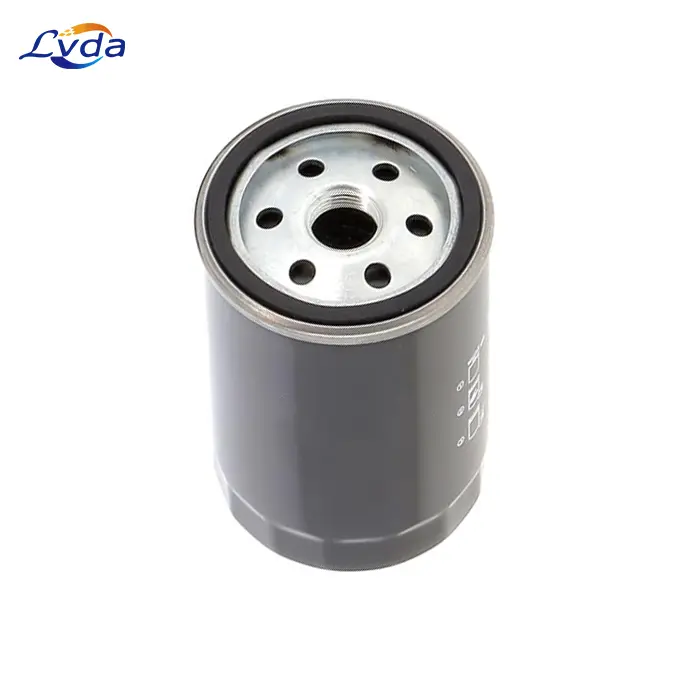

WD719 Oil Filter Element

Product Details

WD719 spin-on oil filter is engineered to remove contaminants like dust and combustion residues from the lubricating oil to protect the compressor core from wear.

Dimensions: Approximately 76–79 mm in diameter and 122–125 mm in height.

Thread Size: Commonly M16 x 1.5 or 3/4-16 UNF depending on the specific sub-variant.

Filtration Efficiency: Typically removes 95% to 99.99% of particles as small as 0.1–5μm.

Pressure Resistance: Capable of handling working pressures up to 10–12 bar (approx. 175 PSI), with some heavy-duty versions rated higher.

Operating Life: Standard maintenance recommends replacement every 2,000 to 3,000 hours of use.

Cross-Reference

MANN-FILTER: W 719/5, W 719/13, W 719/14, W 719/29.

HIFI FILTER: SO 3339
