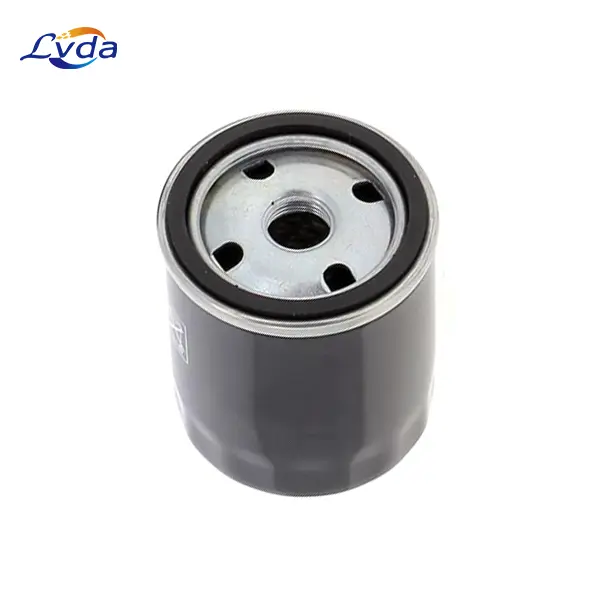

SH 8118 Spin-On Oil Filter
SH 8118 Spin-On Oil Filter

SH 8118 Spin-On Oil Filter

Other Brands Compressor Filter

Model Number: SH 8118

Height : 93 mm

Weight : 0.32 Kg

Smallest Inner Diameter : 62 mm

Outer Diameter : 76 mm

Get Quotation

Product Details

The SH 8118 is a high-performance spin-on oil filter manufactured by Sotras, an Italian company specializing in industrial filtration. It is primarily used in rotary screw and vane air compressors to remove contaminants from the lubrication circuit, ensuring the longevity of the machine.

 Specifications

External Diameter (d1) 76 mm

Seal Diameter (d2) 62 mm

Thread Size (d3) 3/4" 16-UNF

Total Height (h1) 95 mm

Bypass Valve Opening Pressure 2.5 bar

Nominal Flow Rate 15 L/min

Max Working Pressure 14 bar

cross-reference

Compair / Broomwade: 98262/135

Deutz: 01174416.
