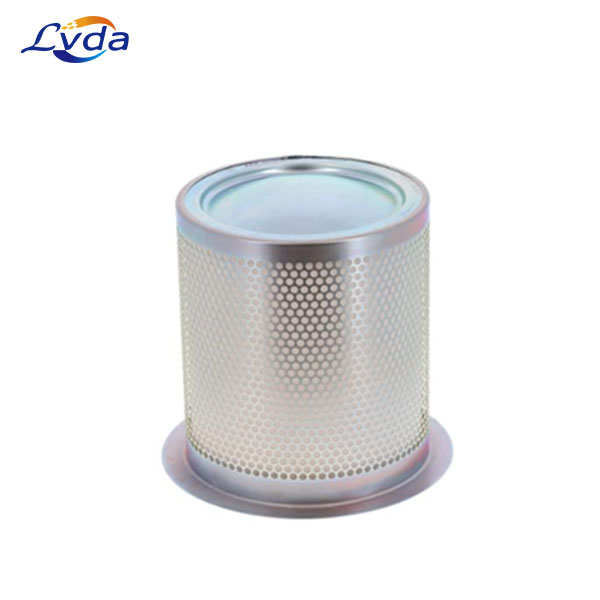

LE27007x Air and oil separator

Product Details

The LE27007x oil separator filter is specially designed for industrial air compressors. It efficiently separates oil mist from compressed air, ensuring clean air output and protecting downstream equipment.​

Features​

Adopting a multi-layer composite structure, the outer layer is made of high-density glass fiber, which initially captures large oil droplets. The middle layer uses a gradient density filter paper to trap micron-level oil mist (≥0.3μm), and the inner layer is a hydrophobic membrane that further enhances separation efficiency, reaching up to 99.98%.​

The filter element is treated with anti-aging technology, maintaining stability in temperatures ranging from -10℃ to 120℃. It is compatible with mineral-based and synthetic compressor oils, effectively resisting oil corrosion and extending service life.​

Parameters​

Separation precision: ≤0.1ppm​

Operating pressure: ≤1.6MPa​

Rated flow: 2.7m³/min​

Service life: 2000-3000 working hours​

Connection type: Flange (DN40)​

Advantages​

Compliant with ISO 8573-1 air quality standards, it reduces oil carryover significantly compared to conventional filters. This minimizes maintenance frequency of air tools and pipelines, lowers operational costs, and ensures compressed air quality meets industrial production requirements.​
