Product Details
A device for removing particulate impurities from the air. When the piston mechanical internal combustion engine and reciprocating compressor work, if the inhaled air contains dust and other impurities, it will aggravate the wear of the parts, so the air filter must be installed. The air filter consists of a filter element and a housing. The main requirements of air filter are high filtration efficiency, low flow resistance, and continuous use for a long time without maintenance;
AirCleaner is mainly used in the fields of pneumatic machinery, internal combustion machinery and so on. Its function is to provide clean air for these mechanical equipment, so as to prevent these mechanical equipment from inhaling air with impurity particles in the work and increase the probability of abrasion and damage;
The main components of the air filter are the filter element and the casing, of which the filter element is the main filtering part and undertakes the gas filtering work, while the casing is the external structure that provides necessary protection for the filter element. The working requirement of the air filter is to be able to undertake the high efficiency air filtration work, without adding too much resistance to the air flow, and can work continuously for a long time.
Product features
1.The raw materials of the product are high-quality filter materials from HV, Oslon, AK and other companies in the United States.
2.The product has the characteristics of small flow resistance, high filtration efficiency, high filtration precision and long service life.
3.It can keep the air clean, filter out various impurities in the oil, extend the service life of the machine, and achieve the good effect of precision filtration.
Product parameters

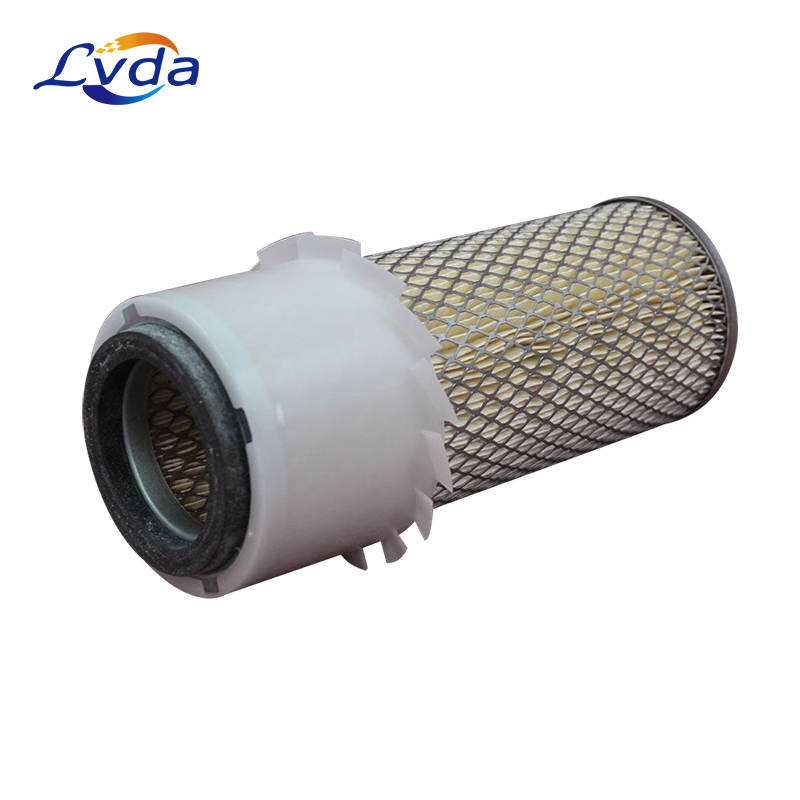

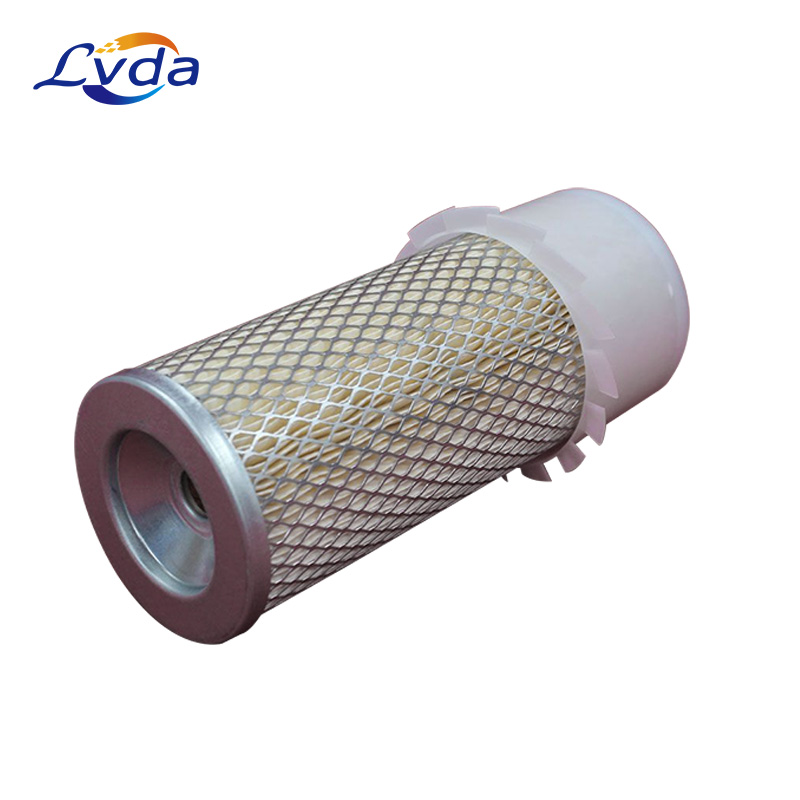

Model | PA1690FN |
Place of Origin | Henan, China |
Brand Name | LVDA |
Life span | 4000H |
Certificate | ISO9001:2015 |
Quality | 100% Tested |
Working temperature | -10~+100℃ |
Working pressure | -21~210 bar |
Length: | 10.34 |
Outer Diameter: | 5.13 |
Inner Diameter: | 2.47 |
Filter Type: | Air Filters |
Filtration Selectivity Raring: | 99.93% EFF |
Maximum Flow: | 100 CFM |
Operating Temperature Range: | 250 F MAX |
Initial Differential Pressure: | .5"-1.0" RESTRICTION |
Center Tube: | EXPANDED METAL |
End Caps: | METAL |
Jacket: | EXPANDED METAL |
Handle: | NONE |
Gasket: | FIBER |
Product application
1.Pharmaceutical,
2.Chemical,
3.Food,
4.Beverage,
5.Environmental Protection,
6.Cosmetics Production,
7.Pneumatic Tools,
8.Aseptic Packaging,
9.Plastics,
10.Chemical and Chemical Industry,
11.Metal Products,
12.Machinery and Electrical Machinery,
13.Electronics.
