Product Details

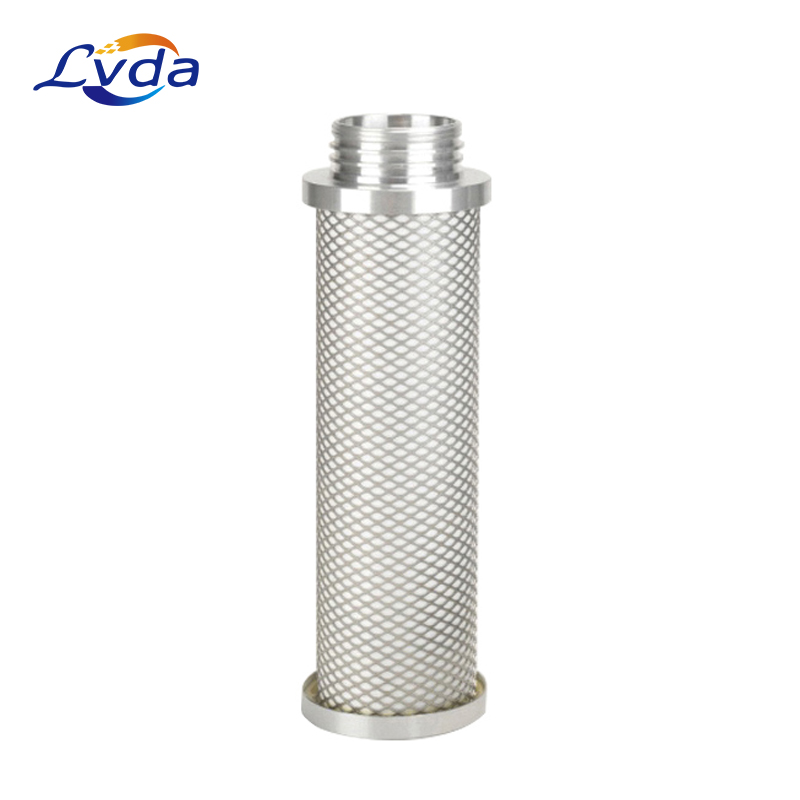

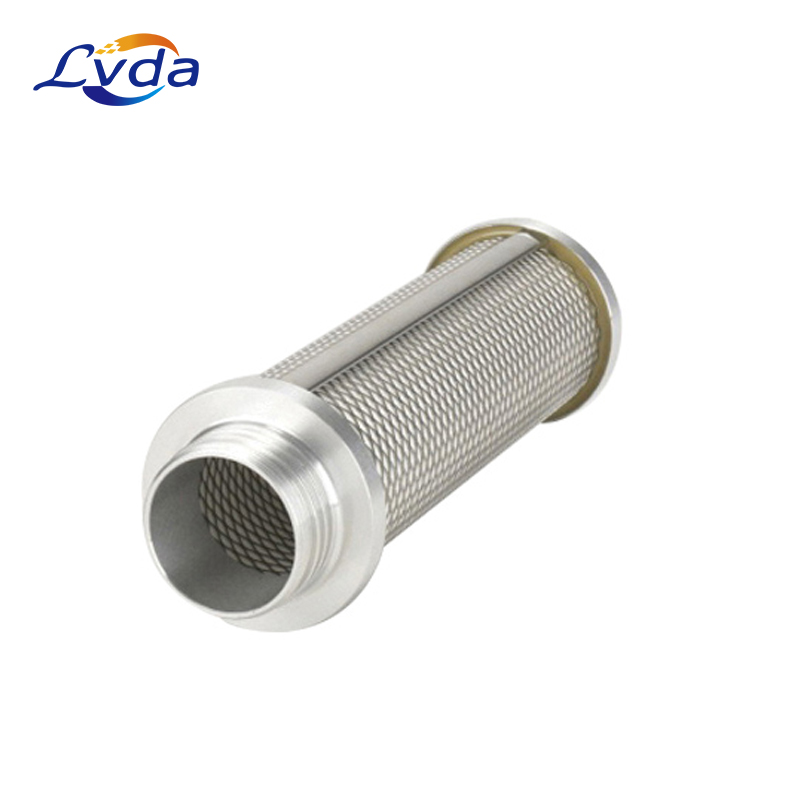

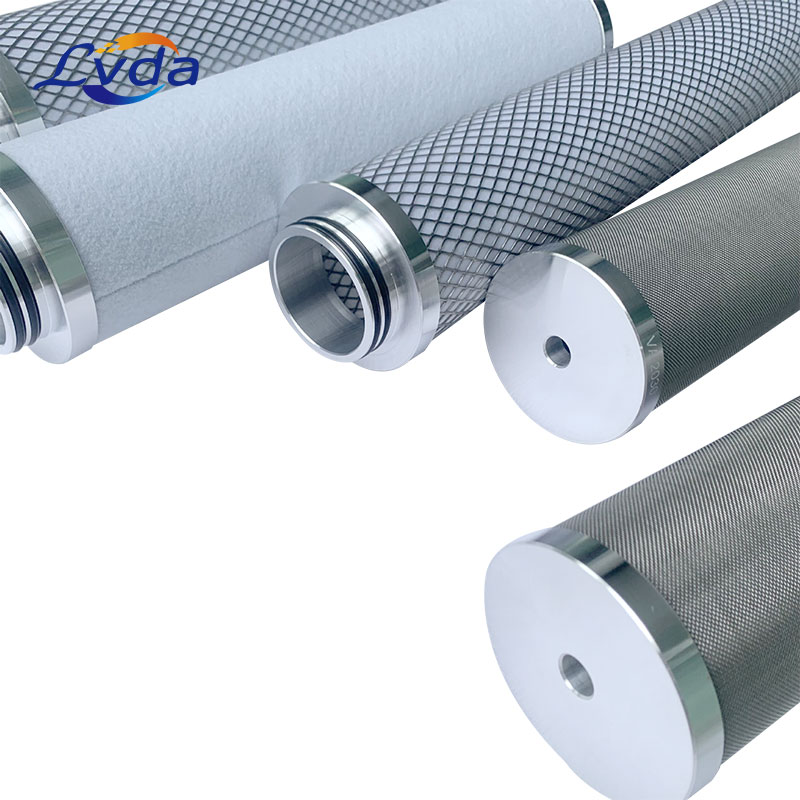

The shell of the precision filter cylinder is generally made of stainless steel, and the inner part uses tubular filter elements such as PP melt blown, wire fired, folded, titanium filter element, activated carbon filter element, etc. as filter elements. Different filter elements are selected according to different filter media and design processes to meet the requirements of effluent quality. The machine body can also be of the quick installation type, so that the filter element can be easily replaced and cleaned. The equipment is widely used in pharmaceutical, chemical, food, beverage, water treatment, brewing, petroleum, printing and dyeing, environmental protection and other industries. It is an ideal equipment for filtering, clarifying and purifying all kinds of liquids.
Product features
1. The filtering speed of precision filter is fast, generally 40m/h, up to 60m/h, more than 3 times that of ordinary sand filter;
2. The precision filter has a large sewage holding capacity, which is generally 15~35kg/m3, more than 4 times that of the ordinary sand filter;
3. The backwashing water consumption rate of precision filter is low, and the backwashing water consumption is less than 1-2% of the periodic filtering water;
4. The precision filter covers a small area with the same water volume, and the floor area is less than 1/3 of that of the ordinary sand filter;
5. The precision filter has strong adjustability, and the parameters such as filtering accuracy, sewage interception capacity, filtering resistance can be adjusted as required.
Product parameters
Model: | 1C125456 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Type: | Air Filter, filter element |
Model | MFP |
Length | 206 Mm (8.11 Inch) |
Element Size | Size 07/30 |
Element Type | AG |
Connection Type | UF Threaded End |
SG And HD Element | 4 |
Maximum Operating Temperature | 120 C (248 F) |
Media Type | Borosilicate |
Oil Aerosol Retention Rate (ISO 12500-1) | 99.7 Percent |
Efficiency 99.99998% | 0.01 Micron |
Diameter | 86 Mm (3.39 Inch) |
End Cap Material | Aluminum |
Element O-Ring Material | Labs-Free |
Inner Core Material | 1.4301 / 304 Stainless Steel |
Outer Core Material | 1.4301 / 304 Stainless Steel |
Recommended Replacement Interval | 8000 Hours |
Certified For Painting Application | Yes |
Product application
1．Chemical and petrochemical industry
2．Pharmaceutical industry
3．Prefiltration of sterile filters
4．Filling machines
5．Food & beverage industry
6．Packing machines
7．Process industry
