Product Details

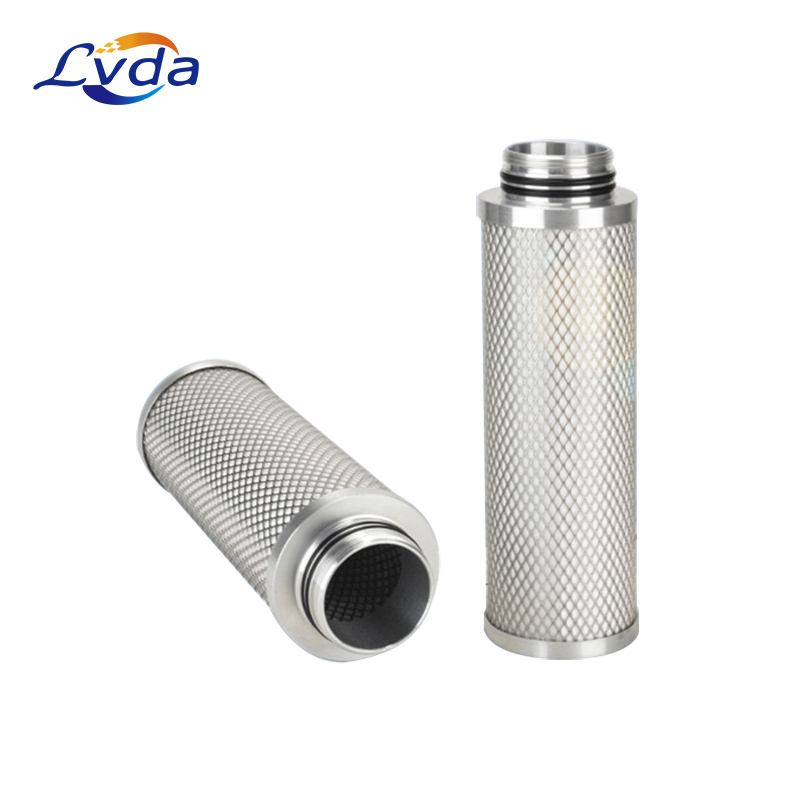

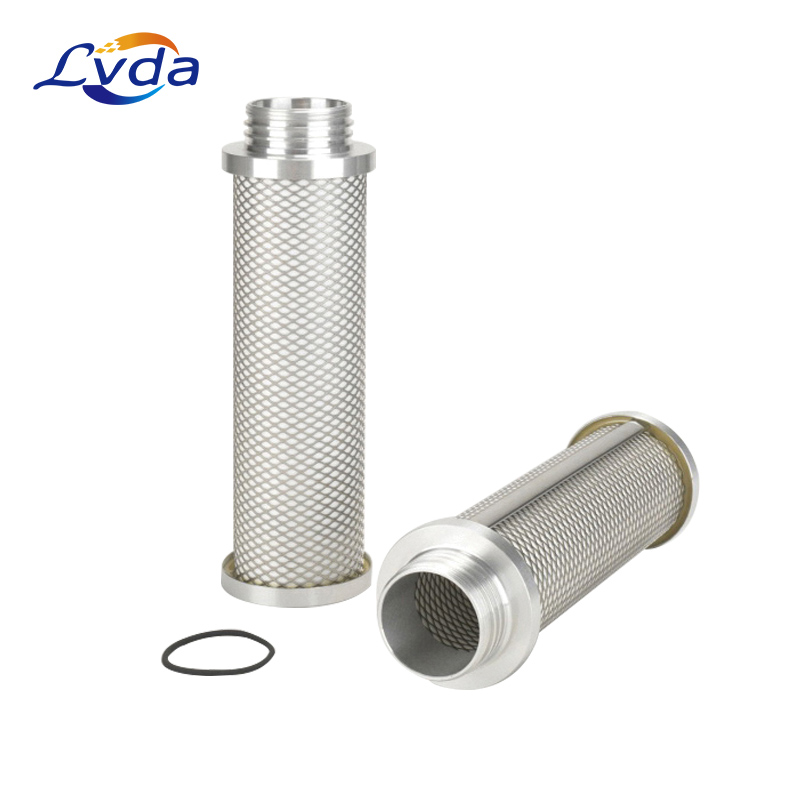

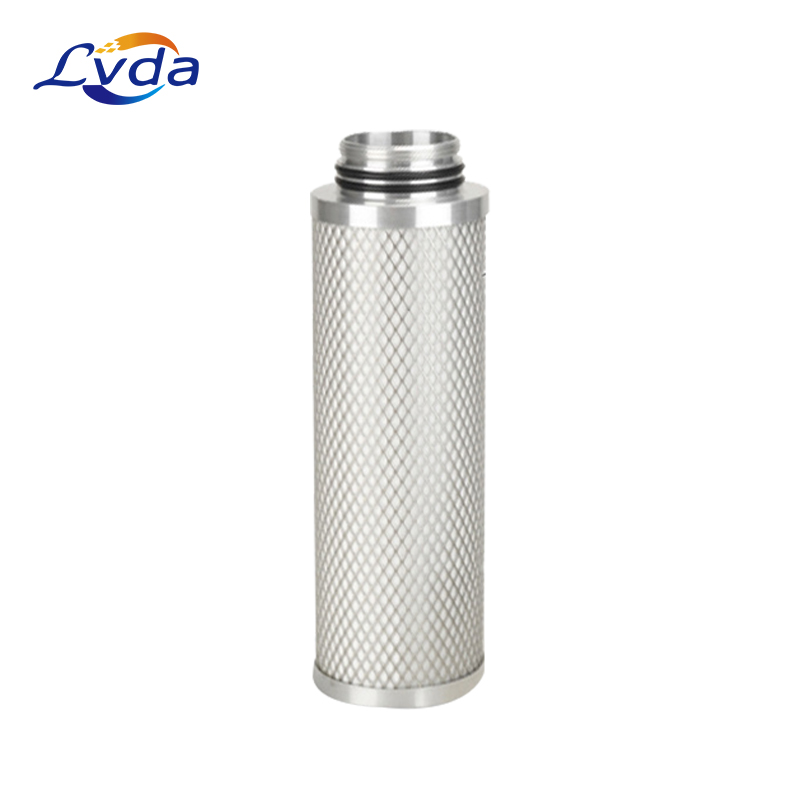

Precision filter element (also known as security filter), the shell of the cylinder is generally made of stainless steel, and the interior uses tubular filter elements such as PP melt blown, wire fired, folded, titanium filter element, and activated carbon filter element as filter elements. Different filter elements are selected according to different filter media and design processes to meet the requirements of effluent quality. With the continuous development of the filtration industry, more and more industries and enterprises have applied precision filters, and more and more enterprises have joined the precision filter industry.
Maintenance
The core component of the precision filter is the filter element, which is easily damaged and needs special protection.
If the precision filter element works for a long time, it will intercept a certain amount of impurities, which will reduce the working speed. Therefore, it should be cleaned frequently and the filter element should be cleaned at the same time.
During the cleaning process, pay special attention to the cleaning of the filter element, and do not deform or damage it, otherwise the filtering accuracy will be reduced and the production requirements will not be met.
If the filter element is deformed or damaged, it must be replaced immediately.
Some precision filter elements cannot be used repeatedly, such as bag filter elements, polypropylene filter elements, etc;
Product features
1.Expanded inner and outer stainless steel sleeves for the secure hold of the filter medium - no danger of corrosion, large openings ensure low differential pressure drop and high throughput
2.Binder-free depth filter medium made out of borosilicate glass fibers - low differential pressure drop, high throughput
3.Silicone-free version
Product parameters
Model | 1C125420 |
Place of Origin | Henan, China |
Brand Name | LVDA |
Life span | 6000- 8000h |
Certificate | ISO9001 |
Quality | 100% Tested |
Working temperature: | -10~+100℃ |
Working pressure: | -21~210 bar |
Connection Type | UF Threaded |
Element Size | 44661 |
Filter Media | Borosilicate |
Filtration Type | High Efficiency Filtration |
Flow Rate | 90 cu-m/hr |
Inside Diameter | 1.65 in |
Micron Rating | 0.01 Micron |
Model | MFP |
Operating Temperature | 248 deg F |
Overall Height | 4.8 in |
Pressure Rating | 7 barg |
Product application
1.Automotive
2.Electronics
3.Food & Beverages
4.Chemical
5.Petrochemical
6.Plastics
7.Paint
8.General Industrial application
