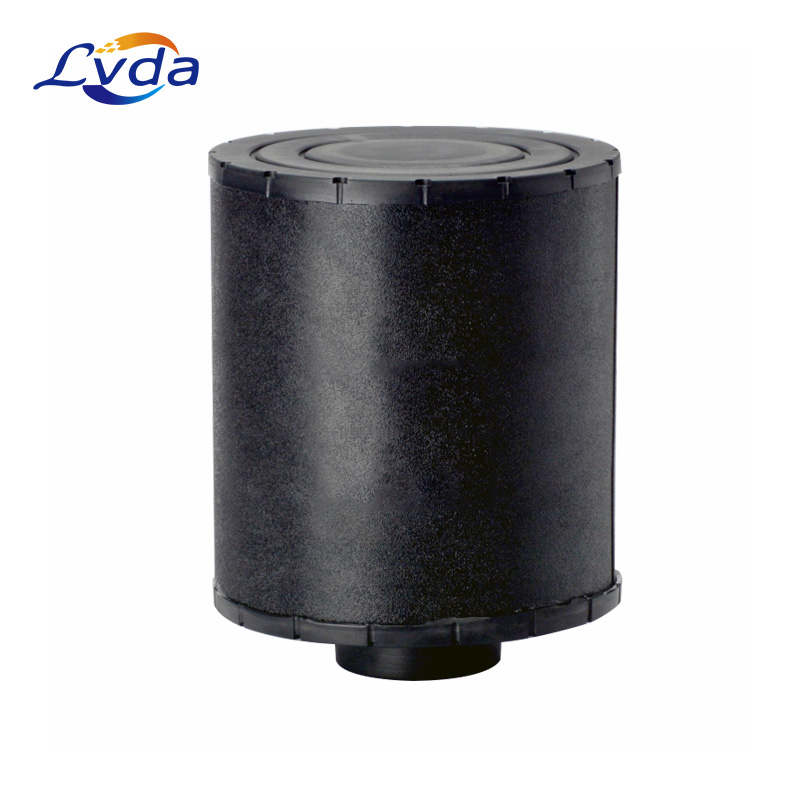

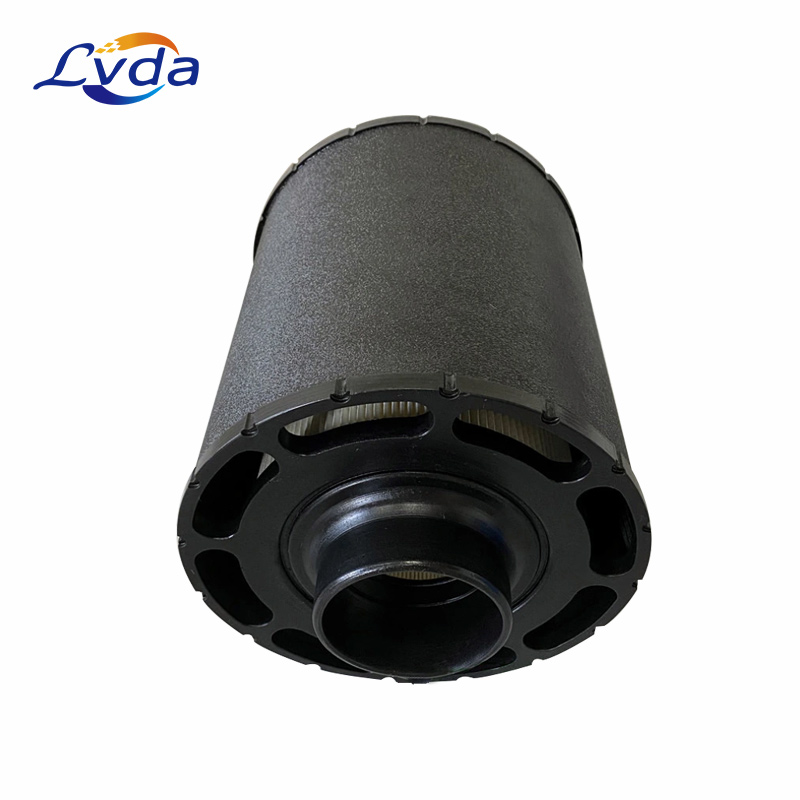

Replacement Filter Compatible with Donaldson  ECC085004,AIR FILTER, PRIMARY DURALITE
Replacement Filter Compatible with Donaldson  ECC085004,AIR FILTER, PRIMARY DURALITE
Replacement Filter Compatible with Donaldson  ECC085004,AIR FILTER, PRIMARY DURALITE

Replacement Filter Compatible with Donaldson  ECC085004,AIR FILTER, PRIMARY DURALITE

Other Brands Compressor Filter

Model Number: ECC085004

Outlet Diameter : 76.2 mm (3.00 inch)

Body Diameter Maximum : 215.9 mm (8.50 inch)

Body Length : 241.3 mm (9.50 inch)

Type : Primary

Style : Round

Get Quotation

Product Details

Rugged, lightweight, self-supporting, and completely disposable combination air cleaner and filter.

Function well under severe pulsation conditions, particularly two- and three-cylinder engines.

Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.

Easy to install, durable, and reliable.

Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).


Product features

1.Improved performance – clogged filters can have a significant, detrimental effect on how your engine runs, hampering performance and reducing power output leading to a lowering of operator work-rate.

2.Lower emissions – because the air-fuel mix is finely calibrated, failing to maintain your filter will cause an imbalance and less efficient fuel use, contributing to greater emissions.

3.Prolonged engine life – the air filter traps the dirt and other debris that can cause wear to your engine. The actual size of the debris might be quite small but even those as small as a grain of sand can significantly damage the engine over time, with the potential for damage to pistons, rings and cylinder linings.


Product parameters


Model:

ECC085004

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

6000-  8000h

Certificate:

ISO9001

Quality:

100%  Tested

Outlet  Diameter

76.2  mm (3.00 inch)

Body  Diameter Maximum

215.9  mm (8.50 inch)

Body  Length

241.3  mm (9.50 inch)

Efficiency  Test Std

ISO  5011

Rated  Flow LR

4.8  m³/min (170 cfm)

Rated  Flow MR

5.8  m³/min (205 cfm)

Rated  Flow HR

6.9  m³/min (244 cfm)

Restriction  LR

102  mm H2O (4.02 inch H2O)

Restriction  MR

152  mm H2O (5.98 inch H2O)

Restriction  HR

203  mm H2O (7.99 inch H2O)

Family

ECC

Type

Primary

Style

Round

Brand

DuraLite™

Media  Type

Cellulose


Product application

1, Hydraulic Engineering Systems Industry;

2, Mining and Metallurgical Equipment Industry;

3, Construction, engineering machinery industry;

4, Machine Tool Industry;

5, Agricultural machinery industry;

6, Plastic machinery industry;

7, Petrochemical industry;

8, Ship and marine engineering equipment industry.
