Product Details
The air filter is part of the air compressor. High-efficiency air compressor is suitable for complicated environments and different working conditions. That produces a higher request for dust extraction.
A good air filter should maintain its shape and purification capacity under high pressure.
If you want to clean the dust and do maintenance for the air compressor, you should have guidance from an experienced practitioner. It is necessary to add new lubricating oil to the tank and make sure the oil level exceeds the first line.

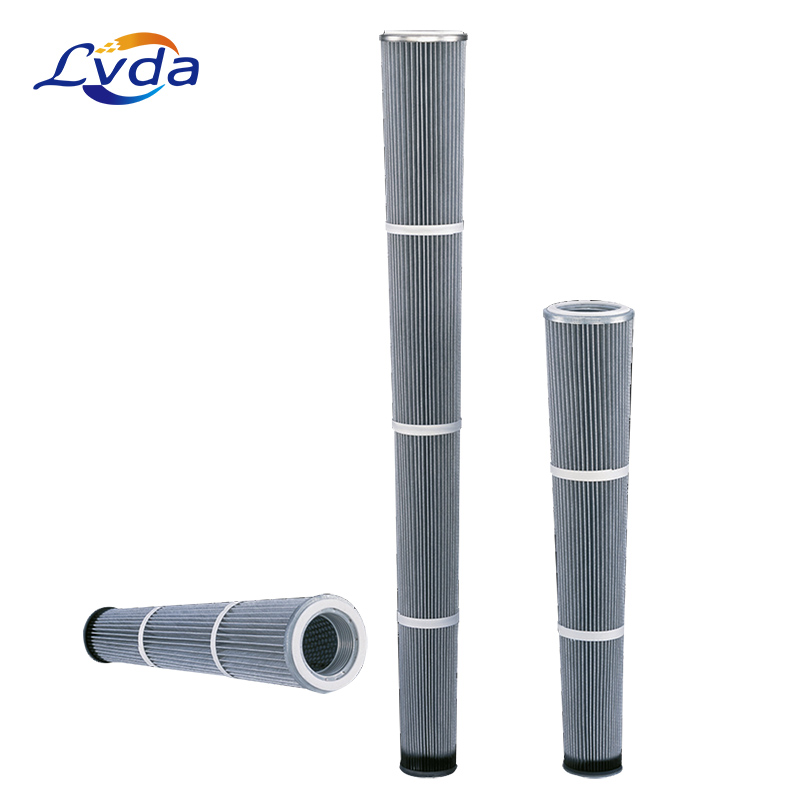

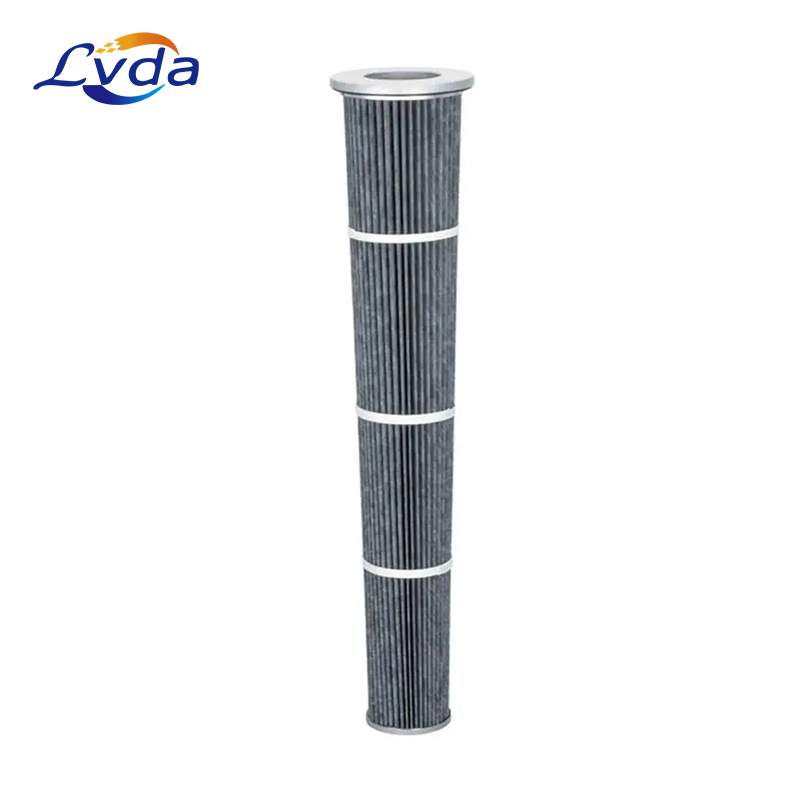

The 852 903 TI 08-1,0 dust filter cartridge in conical design with bands is a Filtration Group cartridge from the HVDS dust spares range, and is designed for use in dust extraction/local exhaust ventilation (LEV) systems. Conical cartridges offer superior performance and more energy efficiency than cylindrical filter cartridges.
Star-pleated Filtration Group dust filter cartridges are used to separate very fine particles from gases. The gas flows inward through the cartridge and is discharged via the open end cap on the top. The conical shape is the outcome of the cartridge’s superior flow behaviour and strength. Its performance has been significantly enhanced by the improved cleaning performance and the optimised flow conditions, especially in dust removal filters with jet pulse cleaning.
Product features
1.Very high loading capacity
2.Improved cleaning properties
3.Optimised flow conditions
4.High stability
5.Installation on the raw gas side (clean gas side installation with adapter)
6.Compatible with Rd 60x4 threat (with adapter)
7.Available in many lengths
8.Universally suitable
9.Food compliant elements (FOOD) (EC 1935/2004 + EU 10/2011 and FDA) are available
10.Simple, tool-free assembly
11.Worldwide distribution
Product parameters
Model: | 852 903 TI 08 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Length | 600 |
Filter surface | 1 |
Max.vol.flow | 1 |
Max.operating temperature | 100 |
Electro-satic conductive | yes |
Cleaning pressure: | 4 bar to 6 bar (max. 7 bar) |
Differential pressure: | max. 18 mbar |
Mounting: | dirt side |
Fixing: | thread connection |
Filter media: | Ti 08 – Polyester fleece alu coated, el. conductive |
Filter surface: | 1,0 m² |
Material inner tube: | galvanized steel |
Material end caps: | galvanized steel |
Seal: | polyester needle felt, white |
Outer diameter: | 120 mm |
Inner diameter: | RD 72 |
Length: | 600 mm |
Product application
1．Pharmacy,
2．Chemical Industry,
3．Food,
4．Drinks,
5．Environment Protection
6．Spin,
7．Cosmetic Production,
8．Pneumatic Conveying,
9．Pneumatic Tools,
10．Aseptic Packaging
11．Plastic,
12．Chemical Engineering,
13．Metalware,
14．Mechanical Electromechanical,
15．Electronics,
16．Metallurgy
