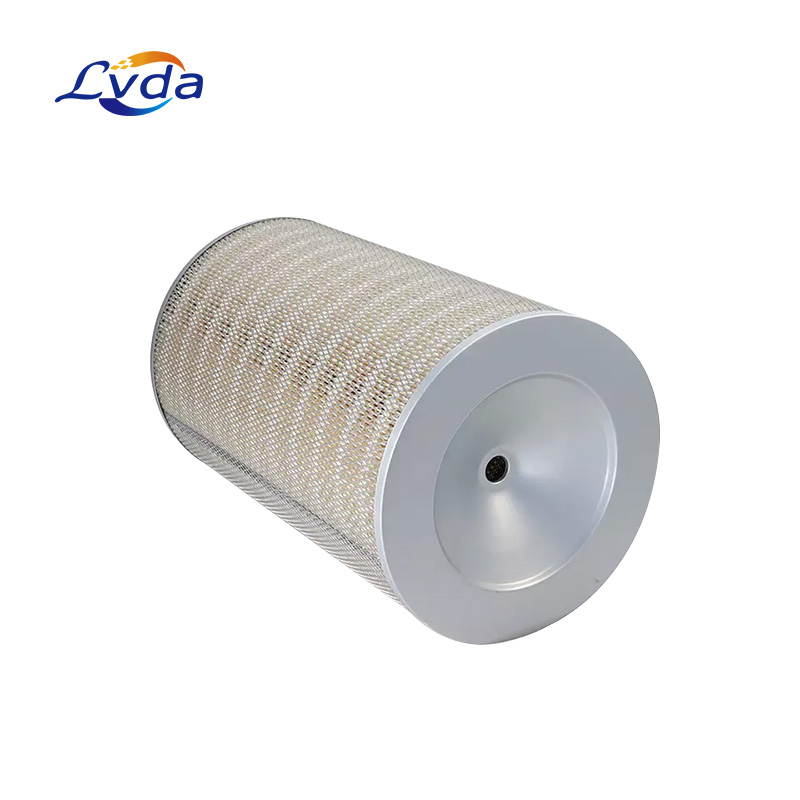

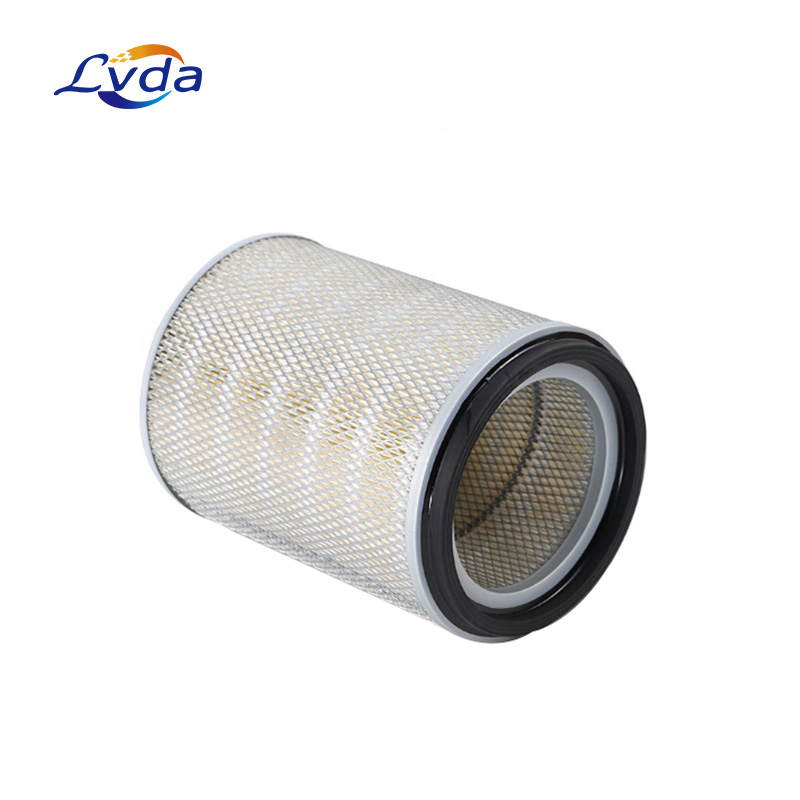

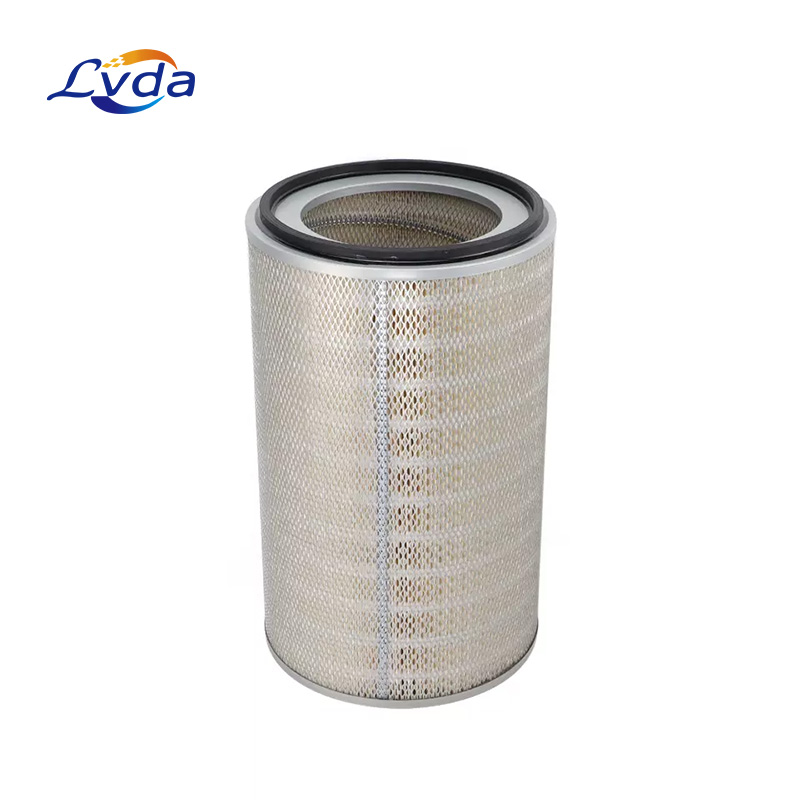

Other Brands Compressor Filter
Model Number: P181073
Outer Diameter : 307.2 mm (12.09 inch)
Inner Diameter : 196 mm (7.72 inch)
Length : 482.6 mm (19.00 inch)
Overall Length : 495.3 mm (19.50 inch)
Bolt Hole Diameter : 22.61 mm (0.89 inch)
Air filter is mainly used in pneumatic machinery, internal combustion machinery and other fields. Its function is to provide clean air for these mechanical equipment, so as to prevent the mechanical equipment from inhaling the air with impurity particles and increasing the probability of abrasion and damage. The main components of the air filter are the filter element and the casing, in
which the filter element is the main filtering part, undertaking the work of gas filtration, and the casing is the external structure to provide the necessary protection for the filter element. The working requirement of the air filter is to be able to bear the high efficiency of air filtration, not to increase too much resistance for air flow, and to work continuously for a long time.
Product features
1.High-efficiency cellulose media performs across a wide range of heavy-duty engine applications.
2.Corrosion resistant, coated steel liners support media during operation and help maximize airflow.
3.Pleatloc™ feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life.
Product parameters
Model: | P181073 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Working pressure: | -21~210 bar |
Outer Diameter | 307.2 mm (12.09 inch) |
Inner Diameter | 196 mm (7.72 inch) |
Length | 482.6 mm (19.00 inch) |
Overall Length | 495.3 mm (19.50 inch) |
Bolt Hole Diameter | 22.61 mm (0.89 inch) |
Efficiency | 99.9 |
Efficiency Test Std | ISO 5011 |
Type | Primary |
Style | Round |
Media Type | Cellulose |
Product application
1.Chemical and petrochemical industry
2.Pharmaceutical industry
3.Prefiltration of sterile filters
4.Filling machines
5.Food & beverage industry
6.Packing machines
7.Process industry
8.Industrial Manufacturing Equipment
9.Automotive
10.Electronics
11.Pharmaceuticals
12.Medical & Dental
· Professional manufacturer with many years' experience
· Good quality with competitive price
· OEM & ODM are welcome
· Various payment items are acceptable
· Good service by experienced manager
