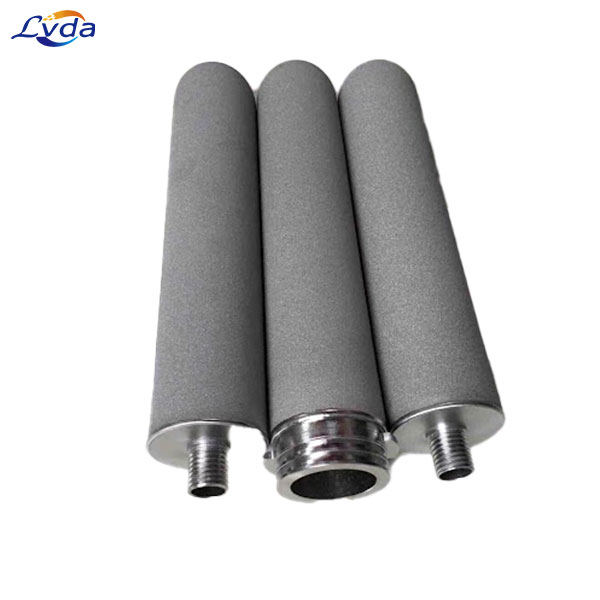

Sintered Titanium Rod Filter Cartridge for High‑Temperature Lithium Liquids

Product Details

This sintered titanium rod filter cartridge is manufactured from TA2 industrial pure titanium powder via high‑temperature vacuum sintering. Featuring a unique 3D network pore structure, it delivers exceptional physical and chemical performance for demanding solid‑liquid separation in harsh lithium processing conditions.

Key Features

Outstanding Corrosion Resistance: Built‑in titanium properties provide excellent resistance to chloride ions, acids, alkalis, salts, and most organic solvents. Stable in highly corrosive lithium brine without corrosion, perforation, or performance loss.

High Temperature Resistance & Strength: Stable operation up to 300°C, perfect for high‑temperature lithium liquid filtration. Monolithic sintered structure offers high mechanical strength and pressure resistance, resisting deformation or failure under high differential pressure.

Deep Filtration & High Precision: Uniform internal pore structure enables true depth filtration, effectively capturing micron‑scale particles. Available in 0.5μm, 1μm, 2μm, 5μm ratings for consistent, reliable results.

Regenerable & Long Service Life: Easily regenerated online via backwashing or ultrasonic cleaning to restore filtration performance, greatly reducing long‑term operating costs.

Anti‑Crystallization & Anti‑Clogging: Smooth surface and stable pore channels minimize crystal adhesion, lowering clogging risk when handling easily crystallized fluids such as lithium precipitation mother liquor, ensuring continuous production.

Typical Applications

Primary impurity removal and purification of salt lake brine

Recovery and filtration of lithium precipitation mother liquor in lithium carbonate production

Precision filtration of high‑temperature lithium solutions

Chemical, pharmaceutical, and corrosive liquid processes requiring high thermal & chemical stability

Standard Specifications

Material TA2 pure titanium powder, sintered

Filtration Rating 0.5μm, 1μm, 2μm, 5μm

Standard Sizes Φ30×500mm, Φ30×1000mm, Φ40×600mm, Φ40×1000mm

Max Operating Temp ≤300°C

Structure 3D network porous depth filtration

Cleanability Backwashable, ultrasonic cleanable, online regenerable
