Metal Filter Element

Model Number: POREFLO

Get Quotation

Product Details

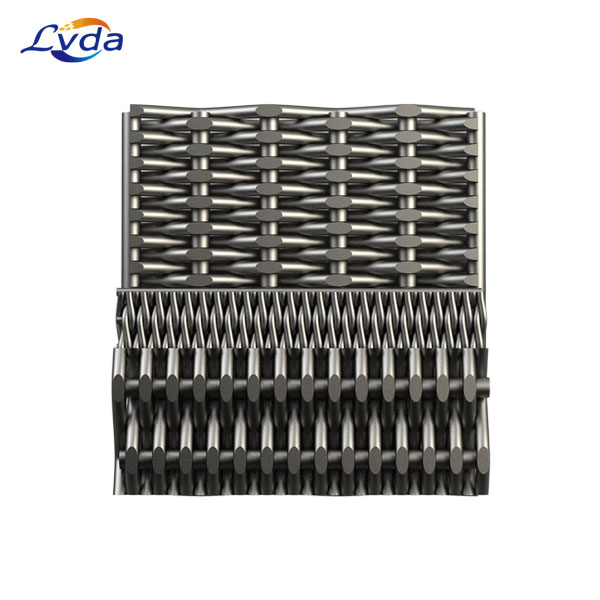

POREFLO is a two or three layer laminate featuring offset layers of twilled wire cloth. The resultant thickening of the surface changes the laminate into a highly stable, air permeable metallic membrane with reduced porosity. POREFLO is particularly suitable for applications where high levels of flow resistance are required.

Applications

Our comprehensive product portfolio includes applications in the most diverse sectors. We are happy to advise on your individual challenges. Please take a closer look here.

Technical Data
Description Geometric pore size μm Thickness mm Porosity % Pressure Drop mbar As mm2/cm Rp N/cm Weight kg/m2 specific flow-rate ratio Eu
Poreflo PF­303
1.25 10 100.00 5.2 1101 8.80 75683
PF­304
1.45 15 50.00 5.2 1101 9.60 37841
PF­305
1.60 20 20.00 5.2 1101 9.90 15137
PF­206
0.85 10 10.00 4.8 1016 7.20 7568
PF­207
1.00 12 5.00 4.8 1016 7.20 3784
PF­208
1.05 14 2.50 4.8 1016 7.30 1892
PF­209
1.20 20 1.25 4.8 1016 7.50 946
PF­211
1.45 35 0.70 4.8 1016 7.50 530
