Topmesh 3 Sintered wire mesh
Topmesh 3 Sintered wire mesh

Topmesh 3 Sintered wire mesh

Metal Filter Element

Model Number: TOPMESH 3

Get Quotation

Product Details

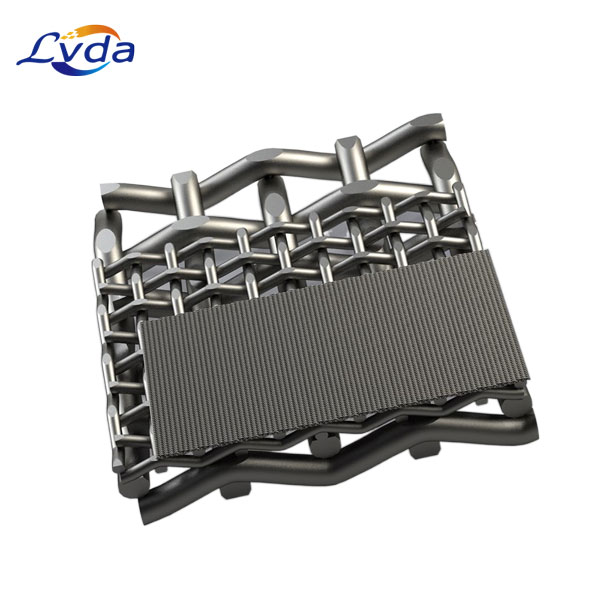

In comparison with TOPMESH 2, this laminate features an additional bonded layer between the filter mesh and the square weave support mesh. Constant low flow resistance and good backwashing capabilities enable higher pressure loads to be handled. TOPMESH 3 is particularly suitable for use with CIP (Cleaning In Place) filters.

Applications

Our comprehensive product portfolio includes applications in the most diverse sectors. We are happy to advise on your individual challenges. Please take a closer look here.

Technical Data
Description Geometric pore size μm Thickness mm Porosity % Pressure Drop mbar As mm2/cm Rp N/cm Weight kg/m2 specific flow-rate ratio Eu
Topmesh 3­layer TM3­KT 2 10 2.0 60 3.54 3.6 573 6.60 2682
TM3­KT 5 14 2.0 60 2.77 3.6 573 6.60 2099
TM3­KT 10 21 2.0 60 1.72 3.6 573 6.60 1298
TM3­BM 15 15 2.0 60 0.62 3.6 573 6.60 469
TM3­BM 20 20 2.0 60 0.58 3.6 573 6.20 439
TM3­BM 25 25 2.0 60 0.47 3.6 573 6.20 356
TM3­BM 30 30 2.0 60 0.35 3.6 573 6.20 265
TM3­QM 40 42 2.0 60 0.13 3.6 573 6.10 98
TM3­QM 50 50 2.0 60 0.11 3.6 573 6.10 83
TM3­QM 60 63 2.0 60 0.08 3.6 573 6.10 61
TM3­QM 80 80 2.0 60 0.07 3.6 573 6.10 53
TM3­QM 100 100 2.0 60 0.07 3.6 573 6.20 53
TM3­QM 150 160 2.0 60 0.06 3.6 573 6.20 45
TM3­QM 200 200 2.0 60 0.06 3.6 573 6.20 45
TM3­QM 500 530 2.0 60 0.03 3.6 573 6.20 23
