Topmesh 2 Sintered wire mesh
Topmesh 2 Sintered wire mesh

Topmesh 2 Sintered wire mesh

Metal Filter Element

Model Number: Topmesh 2

Get Quotation

Product Details

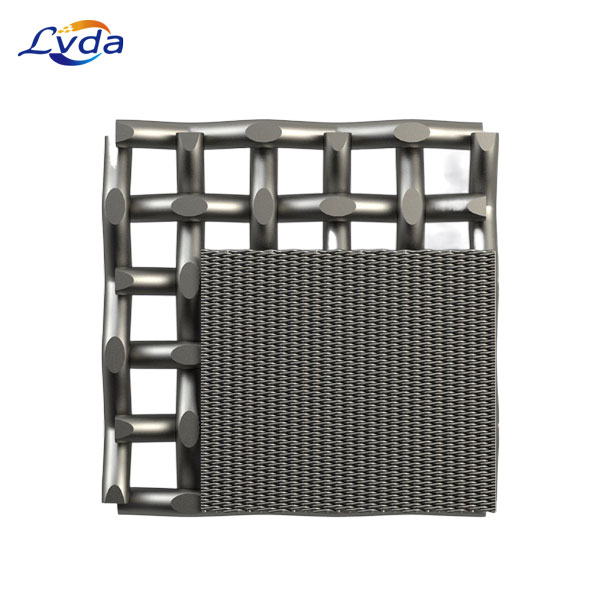

TOPMESH 2 was developed to compensate for the reduced rigidity of fine filter cloths. Combining a filter cloth with a square weave support mesh provides stability at moderate pressures combined with good backwashing properties. A minimal number of layers means reduced pressure loss combined with effective backwashing. TOPMESH 2 is therefore ideal for CIP (Cleaning in Place) filters in the pharmaceutical industry. For applications where high pressure loads and larger diameter units are used, additional support media will be required.

Applications

Our comprehensive product portfolio includes applications in the most diverse sectors. We are happy to advise on your individual challenges. Please take a closer look here.

Technical Data
Description Geometric pore size μm Thickness mm Porosity % Pressure Drop mbar As mm2/cm Rp N/cm Weight kg/m2 specific flow-rate ratio Eu
Topmesh 2­layer TM2­KT 2 10 0.7 60 4.60 1.3 207 2.30 3481
TM2­KT 5 14 0.7 60 3.80 1.3 207 2.30 2876
TM2­KT 10 21 0.7 60 1.80 1.3 207 2.30 1362
TM2­BM 15 15 0.7 60 0.71 1.3 207 2.30 537
TM2­BM 20 20 0.7 60 0.53 1.3 207 2.30 401
TM2­BM 25 25 0.7 60 0.48 1.3 207 2.30 363
TM2­BM 30 30 0.7 60 0.40 1.3 207 2.30 303
TM2­BM 40 40 0.7 60 0.38 1.3 207 2.30 288
TM2­QM 50 50 0.7 60 0.10 1.3 207 2.30 76
TM2­QM 60 61 0.7 60 0.09 1.3 207 2.30 68
TM2­QM 80 80 0.7 60 0.06 1.3 207 2.30 45
TM2­QM 100 100 0.8 70 0.04 1.3 207 1.77 30
TM2­QM 150 150 0.8 70 0.03 1.3 207 1.77 23
TM2­QM 200 250 1.4 65 0.03 1.3 207 3.75 23
TM2­QM 500 530 1.4 65 0.02 1.3 207 3.75 15
