Absolta Sintered wire mesh
Absolta Sintered wire mesh

Absolta Sintered wire mesh

Metal Filter Element

Model Number: Absolta

Materials :

: DIN 1.4404/AISI 316L, DIN 1.4539/AISI 904L

: Hastelloy alloys

: Other materials available on request

Absolute filter fineness : 15–90 microns

Get Quotation

Product Details

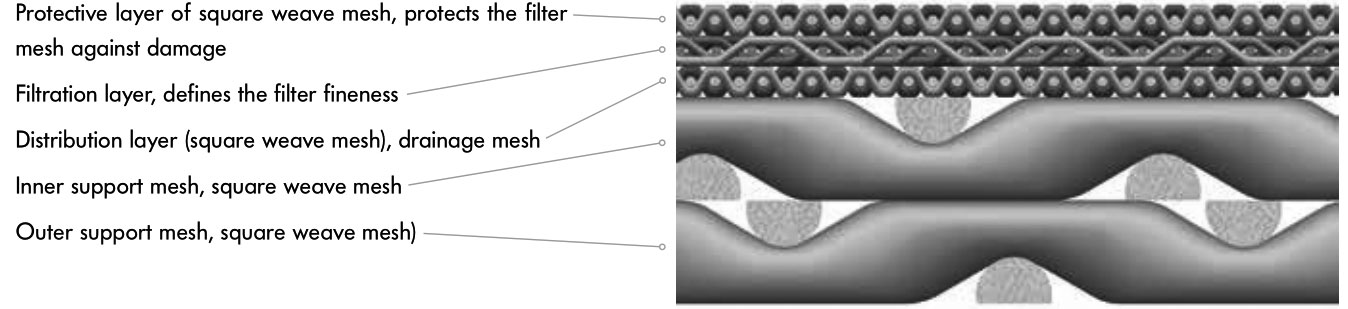

In contrast to POREMET, ABSOLTA N is ahighly porous filter medium developed to achieve increased flow rates at moderate pressures. ABSOLTA is particularly useful forits cleanability and backwashing capabilities. ABSOLTA D is also a five layer structure at a reduced thickness of 1.7 mm–1.8 mm.

Absolta Sintered wire mesh

Applications

Our comprehensive product portfolio includes applications in the most diverse sectors. We are happy to advise on your individual challenges. Please take a closer look here.

Technical Data
Description Geometric pore size μm Thickness mm Porosity % Pressure Drop mbar As mm2/cm Rp N/cm Weight kg/m2 specific flow-rate ratio Eu
Absolta Absolta 2 10 2.5 55 4.30 4.9 780 9.00 3254
Absolta 5 14 2.5 55 3.30 4.9 780 9.00 2498
Absolta 10 21 2.5 55 2.25 4.9 780 9.00 1703
Absolta 15 20 2.5 55 1.46 4.9 780 8.50 1105
Absolta 20 25 2.5 55 0.61 4.9 780 8.50 462
Absolta 30 35 2.5 55 0.53 4.9 780 8.50 401
Absolta 40 50 2.5 55 0.40 4.9 780 8.50 303
Absolta 50 60 2.5 55 0.29 4.9 780 9.00 219
Absolta 60 75 2.5 55 0.19 4.9 780 9.00 144
Absolta 75 90 2.5 55 0.08 4.9 780 9.00 61
