Poremet Multilayer Sintered Filter
Poremet Multilayer Sintered Filter

Poremet Multilayer Sintered Filter

Metal Filter Element

Model Number: Poremet

MATERIALS :

: DIN 1.4404/AISI 316L, DIN 1.4539/AISI 904L

: Hastelloy alloys

: Other materials available on request

Absolute filter fineness : 5–120 microns

Get Quotation

Product Details

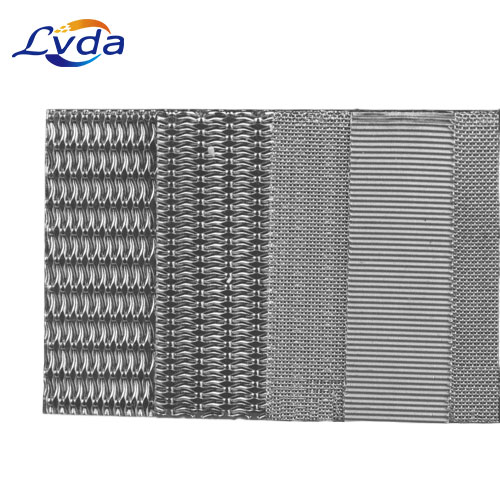

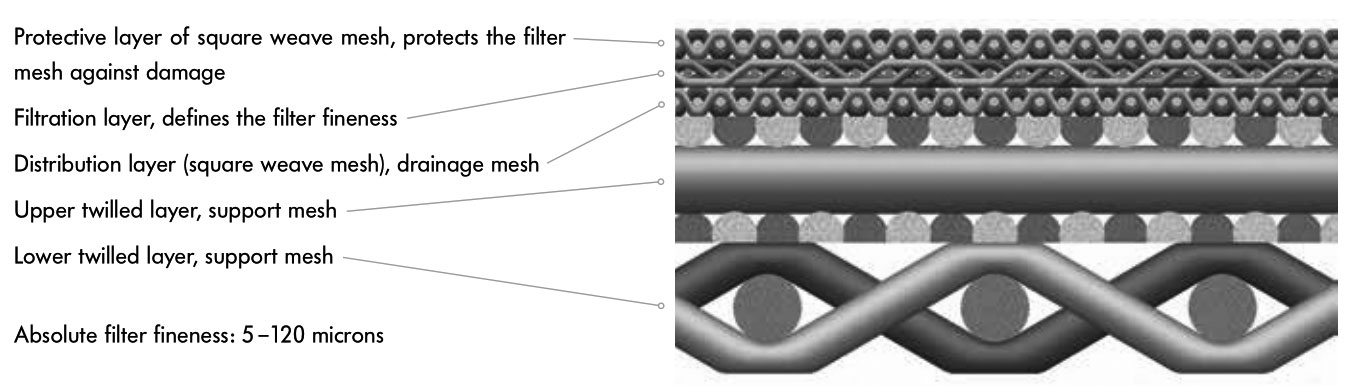

This lead­like filter medium consists of five ifferent wire cloth layers, put together so recisely that they achieve the optimum ombination of stability, filter fineness, flowrate and backwashing properties. POREMET s particularly suitable for fine and finest iltration applications at high pressures and arsh operating environments.

Poremet Multilayer Sintered Filter

Application Recommendations

Filtration of highly viscous liquids: Nutsche filters, centrifuges, fluidised beds, aeration of silos, applications in biotechnology.

Technical Data Sintered Mesh Laminates

Technical Data Sintered Mesh Laminates
Description Geometric pore size μm Thickness mm Porosity % Pressure Drop mbar As mm2/cm Rp N/cm Weight kg/m2 specific flow-rate ratio Eu
Poremet Poremet 2 10 1.7 30 6.80 5.1 1080 9.50 5146
Poremet 5 14 1.7 30 5.00 5.1 1080 10.00 3784
Poremet 10 21 1.7 30 3.10 5.1 1080 10.00 2346
Poremet 15 20 1.7 30 2.05 5.1 1080 9.50 1551
Poremet 20 25 1.7 30 1.91 5.1 1080 9.50 1446
Poremet 30 35 1.7 30 1.69 5.1 1080 9.50 1279
Poremet 40 50 1.7 30 1.54 5.1 1080 9.50 1166
Poremet 50 60 1.7 30 1.43 5.1 1080 10.00 1082
Poremet 60 75 1.7 30 1.34 5.1 1080 10.00 1014
Poremet 75 90 1.7 30 0.56 5.1 1080 10.00 424
