Product Details
Increasingly, multiple layered mesh laminates are now being specified to meet the challenges of today’s demanding filtration applications. These advanced solutions enable a range of advantages which often more than justify the slightly higher initial cost price, alongside improvements in efficiency and durability.
Based on many years of experience in practice, we offer a selection ofstandard products developed to meet the requirements of a wide range of industrial applications.However, specific challenges may merit opting for a bespoke solution in terms of both materials and weaving style.
We use only the highest quality raw mater i als for our products. They are produced in dust free, air conditioned plant rooms, using state of the art equipment and highly precise weaving machines, which we have developed ourselves inhouse. When combined with our comprehensive quality control procedures, we can guarantee the highest levels of quality, cleanliness and freedom from defects.
The Basic Principle

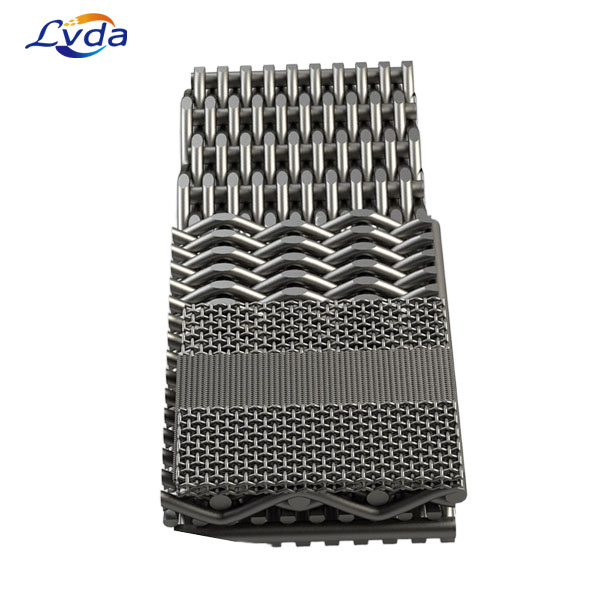

Carefully selected wire cloths are brought together and sintered using a combination of heat and pressure. This process effectively combines the benefits offered by each individual layer and facilitates optimum filtration capabilities. Sintered wire loths produced this way yield the finest iltration results and are also resistant to hysical loading, thanks to the robust esh structure. The smooth surfaces also acilitate cleaning processes such as backwashing.
Technical Data Sintered Mesh Laminates
Description |
Geometric pore size μm |
Thickness
mm |
Porosity
% |
Pressure Drop
mbar |
As
mm2/cm |
Rp
N/cm |
Weight
kg/m2 |
specific flow-rate ratio
Eu |
Poremet |
Poremet 2 |
10 |
1.7 |
30 |
6.80 |
5.1 |
1080 |
9.50 |
5146 |
Poremet 5 |
14 |
1.7 |
30 |
5.00 |
5.1 |
1080 |
10.00 |
3784 |
Poremet 10 |
21 |
1.7 |
30 |
3.10 |
5.1 |
1080 |
10.00 |
2346 |
Poremet 15 |
20 |
1.7 |
30 |
2.05 |
5.1 |
1080 |
9.50 |
1551 |
Poremet 20 |
25 |
1.7 |
30 |
1.91 |
5.1 |
1080 |
9.50 |
1446 |
Poremet 30 |
35 |
1.7 |
30 |
1.69 |
5.1 |
1080 |
9.50 |
1279 |
Poremet 40 |
50 |
1.7 |
30 |
1.54 |
5.1 |
1080 |
9.50 |
1166 |
Poremet 50 |
60 |
1.7 |
30 |
1.43 |
5.1 |
1080 |
10.00 |
1082 |
Poremet 60 |
75 |
1.7 |
30 |
1.34 |
5.1 |
1080 |
10.00 |
1014 |
Poremet 75 |
90 |
1.7 |
30 |
0.56 |
5.1 |
1080 |
10.00 |
424 |
Absolta |
Absolta 2 |
10 |
2.5 |
55 |
4.30 |
4.9 |
780 |
9.00 |
3254 |
Absolta 5 |
14 |
2.5 |
55 |
3.30 |
4.9 |
780 |
9.00 |
2498 |
Absolta 10 |
21 |
2.5 |
55 |
2.25 |
4.9 |
780 |
9.00 |
1703 |
Absolta 15 |
20 |
2.5 |
55 |
1.46 |
4.9 |
780 |
8.50 |
1105 |
Absolta 20 |
25 |
2.5 |
55 |
0.61 |
4.9 |
780 |
8.50 |
462 |
Absolta 30 |
35 |
2.5 |
55 |
0.53 |
4.9 |
780 |
8.50 |
401 |
Absolta 40 |
50 |
2.5 |
55 |
0.40 |
4.9 |
780 |
8.50 |
303 |
Absolta 50 |
60 |
2.5 |
55 |
0.29 |
4.9 |
780 |
9.00 |
219 |
Absolta 60 |
75 |
2.5 |
55 |
0.19 |
4.9 |
780 |
9.00 |
144 |
Absolta 75 |
90 |
2.5 |
55 |
0.08 |
4.9 |
780 |
9.00 |
61 |
Topmesh
3layer |
TM3KT 2 |
10 |
2.0 |
60 |
3.54 |
3.6 |
573 |
6.60 |
2682 |
TM3KT 5 |
14 |
2.0 |
60 |
2.77 |
3.6 |
573 |
6.60 |
2099 |
TM3KT 10 |
21 |
2.0 |
60 |
1.72 |
3.6 |
573 |
6.60 |
1298 |
TM3BM 15 |
15 |
2.0 |
60 |
0.62 |
3.6 |
573 |
6.60 |
469 |
TM3BM 20 |
20 |
2.0 |
60 |
0.58 |
3.6 |
573 |
6.20 |
439 |
TM3BM 25 |
25 |
2.0 |
60 |
0.47 |
3.6 |
573 |
6.20 |
356 |
TM3BM 30 |
30 |
2.0 |
60 |
0.35 |
3.6 |
573 |
6.20 |
265 |
TM3QM 40 |
42 |
2.0 |
60 |
0.13 |
3.6 |
573 |
6.10 |
98 |
TM3QM 50 |
50 |
2.0 |
60 |
0.11 |
3.6 |
573 |
6.10 |
83 |
TM3QM 60 |
63 |
2.0 |
60 |
0.08 |
3.6 |
573 |
6.10 |
61 |
TM3QM 80 |
80 |
2.0 |
60 |
0.07 |
3.6 |
573 |
6.10 |
53 |
TM3QM 100 |
100 |
2.0 |
60 |
0.07 |
3.6 |
573 |
6.20 |
53 |
TM3QM 150 |
160 |
2.0 |
60 |
0.06 |
3.6 |
573 |
6.20 |
45 |
TM3QM 200 |
200 |
2.0 |
60 |
0.06 |
3.6 |
573 |
6.20 |
45 |
TM3QM 500 |
530 |
2.0 |
60 |
0.03 |
3.6 |
573 |
6.20 |
23 |
Topmesh
2layer |
TM2KT 2 |
10 |
0.7 |
60 |
4.60 |
1.3 |
207 |
2.30 |
3481 |
TM2KT 5 |
14 |
0.7 |
60 |
3.80 |
1.3 |
207 |
2.30 |
2876 |
TM2KT 10 |
21 |
0.7 |
60 |
1.80 |
1.3 |
207 |
2.30 |
1362 |
TM2BM 15 |
15 |
0.7 |
60 |
0.71 |
1.3 |
207 |
2.30 |
537 |
TM2BM 20 |
20 |
0.7 |
60 |
0.53 |
1.3 |
207 |
2.30 |
401 |
TM2BM 25 |
25 |
0.7 |
60 |
0.48 |
1.3 |
207 |
2.30 |
363 |
TM2BM 30 |
30 |
0.7 |
60 |
0.40 |
1.3 |
207 |
2.30 |
303 |
TM2BM 40 |
40 |
0.7 |
60 |
0.38 |
1.3 |
207 |
2.30 |
288 |
TM2QM 50 |
50 |
0.7 |
60 |
0.10 |
1.3 |
207 |
2.30 |
76 |
TM2QM 60 |
61 |
0.7 |
60 |
0.09 |
1.3 |
207 |
2.30 |
68 |
TM2QM 80 |
80 |
0.7 |
60 |
0.06 |
1.3 |
207 |
2.30 |
45 |
TM2QM 100 |
100 |
0.8 |
70 |
0.04 |
1.3 |
207 |
1.77 |
30 |
TM2QM 150 |
150 |
0.8 |
70 |
0.03 |
1.3 |
207 |
1.77 |
23 |
TM2QM 200 |
250 |
1.4 |
65 |
0.03 |
1.3 |
207 |
3.75 |
23 |
TM2QM 500 |
530 |
1.4 |
65 |
0.02 |
1.3 |
207 |
3.75 |
15 |
Poreflo |
PF303 |
|
1.25 |
10 |
100.00 |
5.2 |
1101 |
8.80 |
75683 |
PF304 |
|
1.45 |
15 |
50.00 |
5.2 |
1101 |
9.60 |
37841 |
PF305 |
|
1.60 |
20 |
20.00 |
5.2 |
1101 |
9.90 |
15137 |
PF206 |
|
0.85 |
10 |
10.00 |
4.8 |
1016 |
7.20 |
7568 |
PF207 |
|
1.00 |
12 |
5.00 |
4.8 |
1016 |
7.20 |
3784 |
PF208 |
|
1.05 |
14 |
2.50 |
4.8 |
1016 |
7.30 |
1892 |
PF209 |
|
1.20 |
20 |
1.25 |
4.8 |
1016 |
7.50 |
946 |
PF211 |
|
1.45 |
35 |
0.70 |
4.8 |
1016 |
7.50 |
530 |
