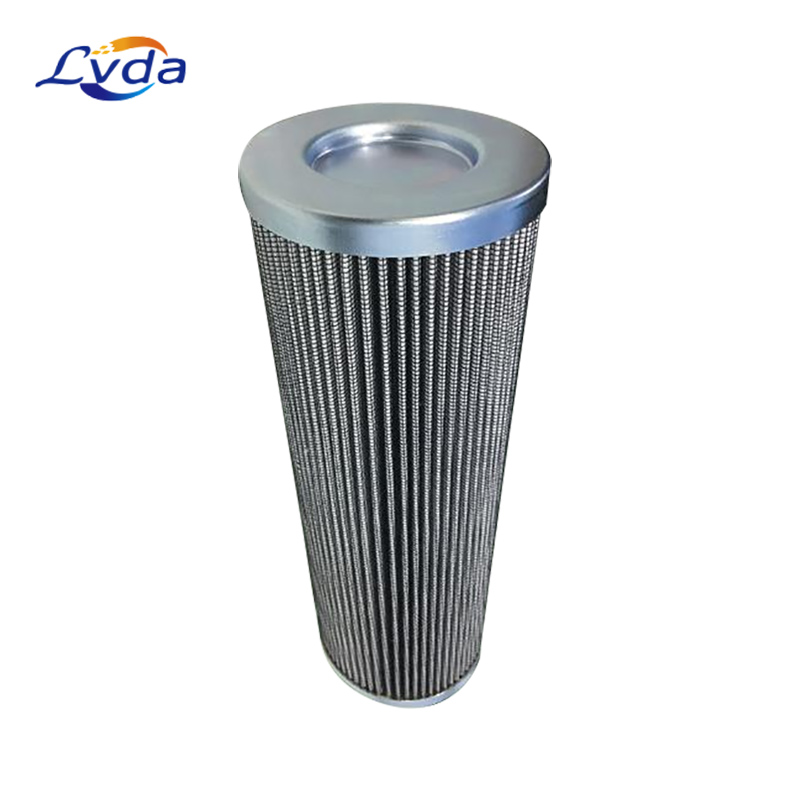

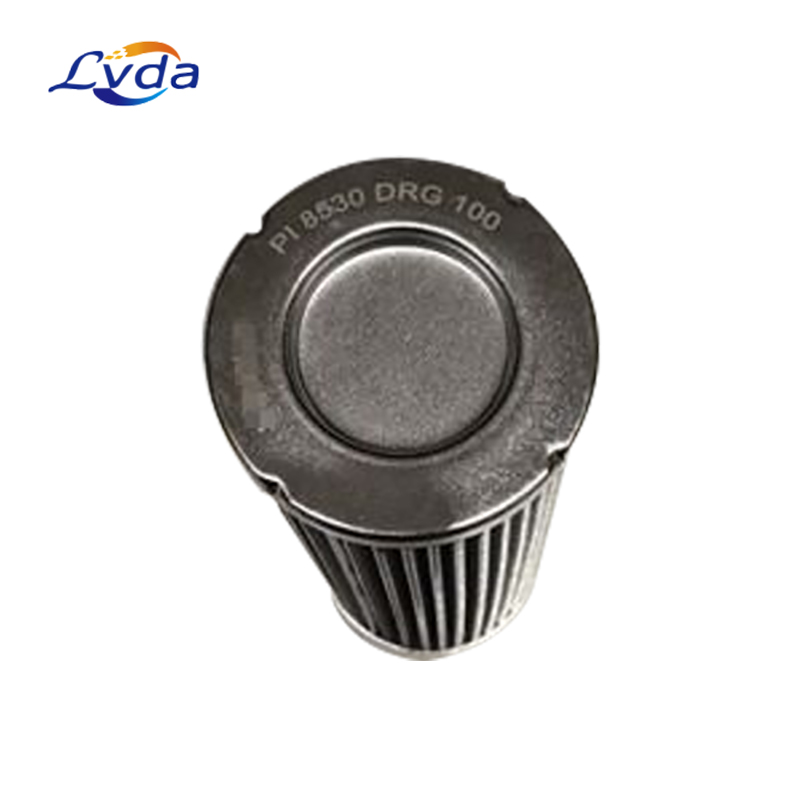

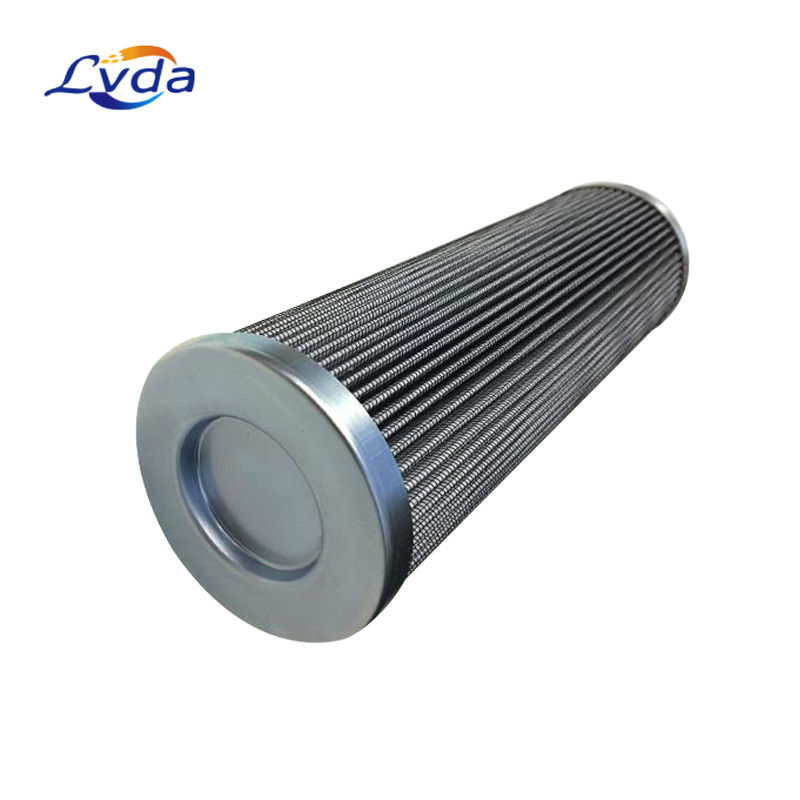

Replacement Hydraulic filter PI 8530 DRG 100，83.5X255mm Stainless Steel Wedge Wire Filter Element Pi8530drg100 Mahler

Product Details

Construction for  wedge wire screen element filter

Rods spaced evenly around the circumference support the screen and prevent the screen from deformation.

V-shaped wire produces self-cleaning action and non-clogging performance. The slot width on surface is increasing towards the internal side of the screen. This slot geometry is called keystone slot which has the ability of anti-plugging. Precise slot width should be designed to satisfy operation requirements. Usually, the slot width is two times the size of the formation sand.

End fittings can be customized to secure the screen body.

Materials for  wedge wire screen element filter

Wedge wire screens are made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

Wedge wire screens are usually fabricated by stainless steel 304 and 316L, low carbon steel, galvanized steel. However, optional temperature is another important element to be considered. So, wedge wire screens made of other materials are at stock, including Monel 400, Hastelloy (C4, C22, C276) and Inconel 600.

Product features

1.Fully welded construction, high strength and light weight.

2.Due to the V-shaped cross section of welding wires, it is clogging-resistant, and effective in dewatering.

3.It can be machined into different shapes to be flat, cylindrical (inward curling, outward curling), conic and so on.

4.It can be made from some special materials, such as titanium, hastelloy, monel, etc.

Product parameters

Product application

1．Chemical and petrochemical industry

2．Pharmaceutical industry

3．Filling machines

4．Food & beverage industry

5．Packing machines

6．Process industry
