Product Details
Hydraulic filter
80% of hydraulic system component failures are caused by excess contamination in the hydraulic system.
Hydraulic or fluid power systems can be found on a variety of equipment. Systems range from the relatively simple power steering and transmission of trucks and buses, to the more complex systems found in agricultural, construction, marine and mining applications.
Oil filter
Oil is the life-blood of an engine, which means the oil filter should never be taken for granted, especially in harsh heavy-duty environments. The small price maintenance teams must pay for premium filters is well worth the cost.
LVDA oil filters are the most efficient and cost-effective filters in severe conditions. They feature microfiber "glass" media in order to filter out more of the small, engine-destroying particles.
Fuel filter,fuel water separator
Fuel filter is often the forgotten filter. Yet the fuel put into diesel and off-road equipment, more often than not,contains contaminants such as dirt, rust, scale and water. These impurities can plug fuel injectors and carburetors, resulting in engine malfunction or deterioration.
DIN ISO 2941：Hydraulic fluid power filter elements; verification of collapse/burst resistance DIN ISO 2942： Hydraulic fluid power filter elements; verification of fabrication integrity
DIN ISO 2943 ：Hydraulic fluid power filter elements; verification of compatibility with hydraulic fluid
DIN ISO 3723： Hydraulic fluid power filter elements; method for end load test
DIN ISO 3724 ：Hydraulic fluid power filter elements; verification of flow fatigue characteristics
ISO 3968 ：Hydraulic fluid power-filters-evaluation of pressure drop versus flow characteristics
ISO 10771.1 ：Fatigue pressure testing of metal containing envelopes in hydraulic fluid applications
ISO 16889 ：Hydraulic fluid power filters-multipass method for evaluation filtration performance of a filter element
Product features
1.Modular system for optimum filter selection
2.Small space requirement through compact design
3.Minimal pressure drop through optimal flow design of components
4. Equipped with highly efficient Mic, Sm-N or Sm-x filter elements
5.Guaranteed separation according to ISO 16889 multipass test
6.Elements with high differential pressure stability and dirt holding capacity
7.Customer-specific printing on request
8.Worldwide sales
Product parameters

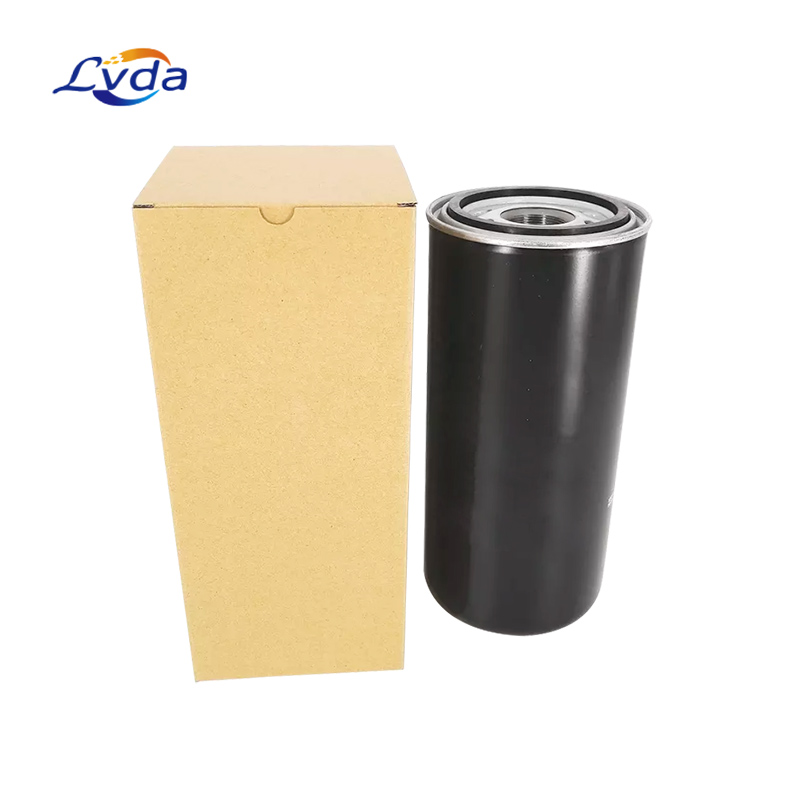

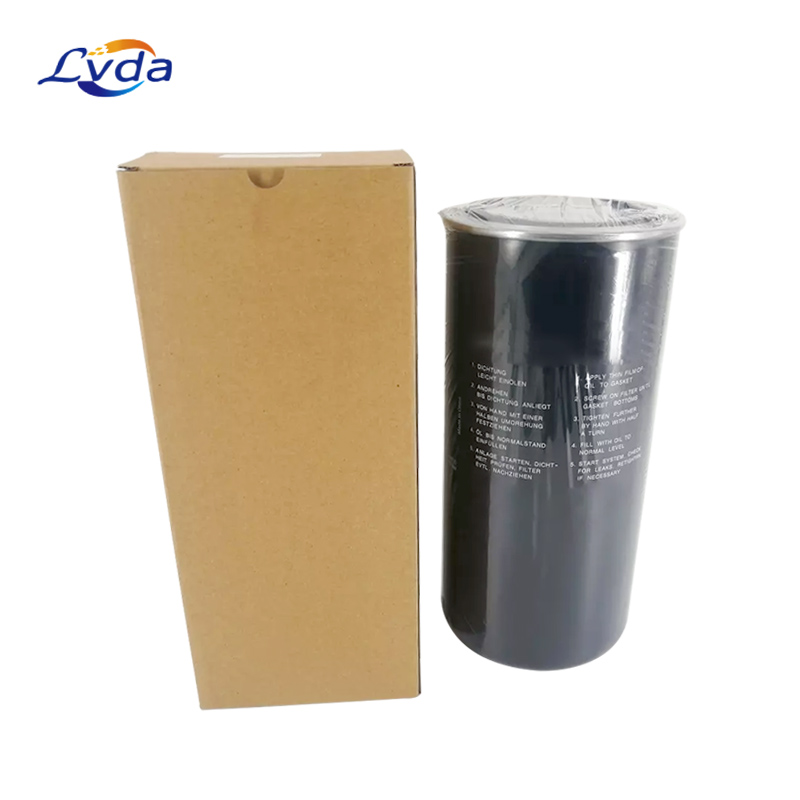

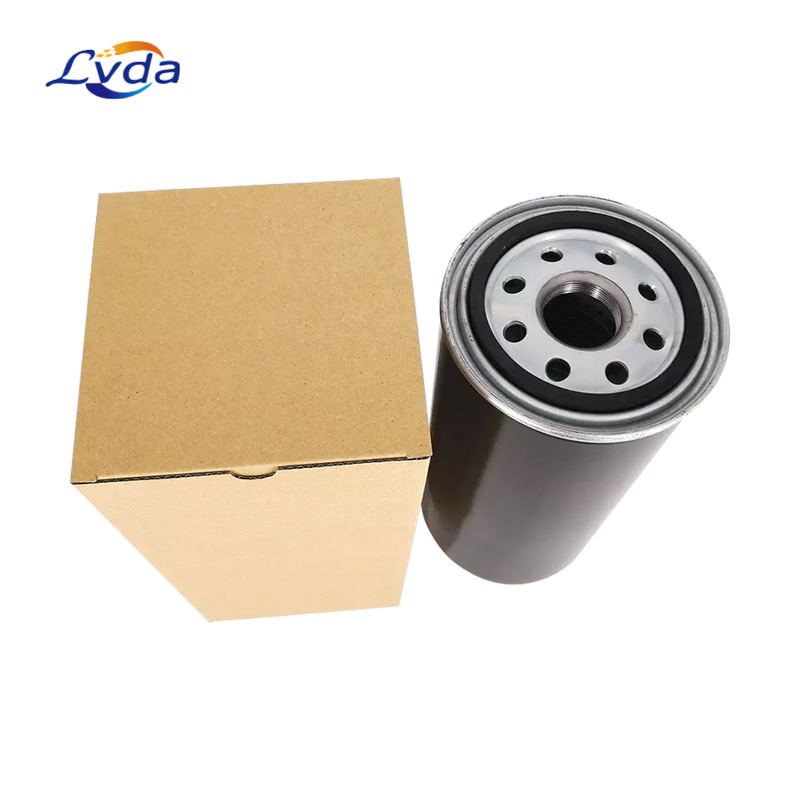

Model: | PX37-13-2-SMX10 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 2000- 4000h |
Certificate: | ISO9001:2015 |
Quality: | 100% Tested |
Nominal size NG [l/min] | 160 |
Nominal pressure [bar] | 16 |
Filter material | Sm-x 10 |
Filter surface [cm²] | 7400 |
Nominal pressure: | 16/10 bar (230/140 psi) |
Temperature range: | -10 °C to +120 °C |
Burst pressure: | 35 bar (500psi) |
Filter housing material: | Steel |
Sealing material: | Perbunan |
Fitting position: | preferably upright |
Collapse pressure of elements: | ∆ p ≥ 5 bar |
ØA | 140 mm |
ØB | 111 mm |
ØC | 100 mm |
D | 1½" 16 UN 2B |
ØE(Housing diameter) | 136 mm |
F(Length) | 310 mm |
Fineness | 10 µm |
Type PX | Spin-on cartridge |
Product application
1.Metallurgy
2. Petrochemical
3. Textiles, electronics and pharmaceuticals
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
