Air Compressor Parts High Quality Air Filter Line Filter E-E-138 9.4867.0 E-F-138 9.4879.0 E-G-138 9.4891.0 Replace for Keaser Compressor
Air Compressor Parts High Quality Air Filter Line Filter E-E-138 9.4867.0 E-F-138 9.4879.0 E-G-138 9.4891.0 Replace for Keaser Compressor
Air Compressor Parts High Quality Air Filter Line Filter E-E-138 9.4867.0 E-F-138 9.4879.0 E-G-138 9.4891.0 Replace for Keaser Compressor

Air Compressor Parts High Quality Air Filter Line Filter E-E-138 9.4867.0 E-F-138 9.4879.0 E-G-138 9.4891.0 Replace for Keaser Compressor

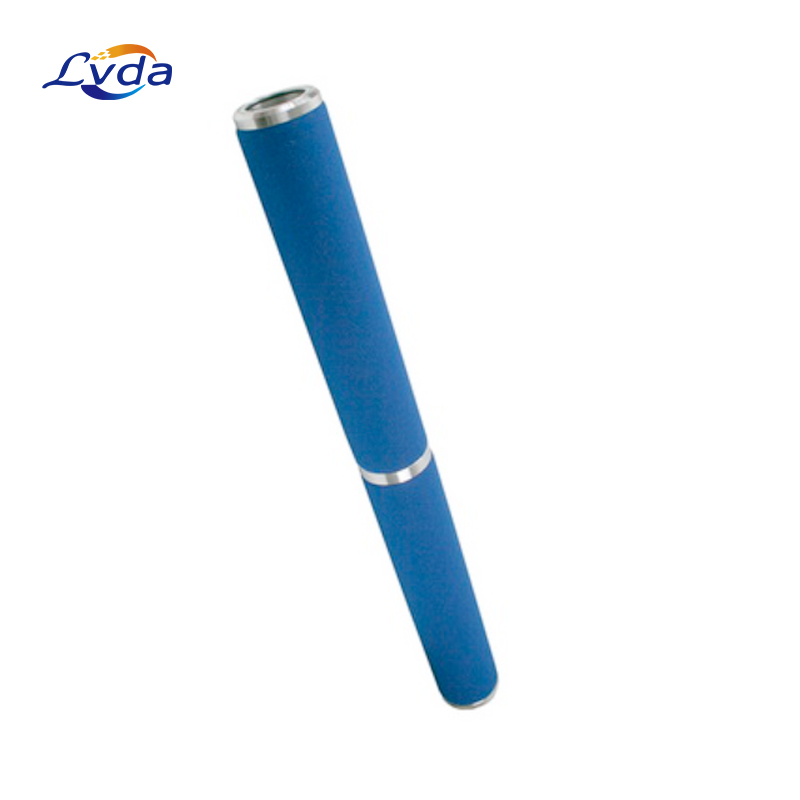

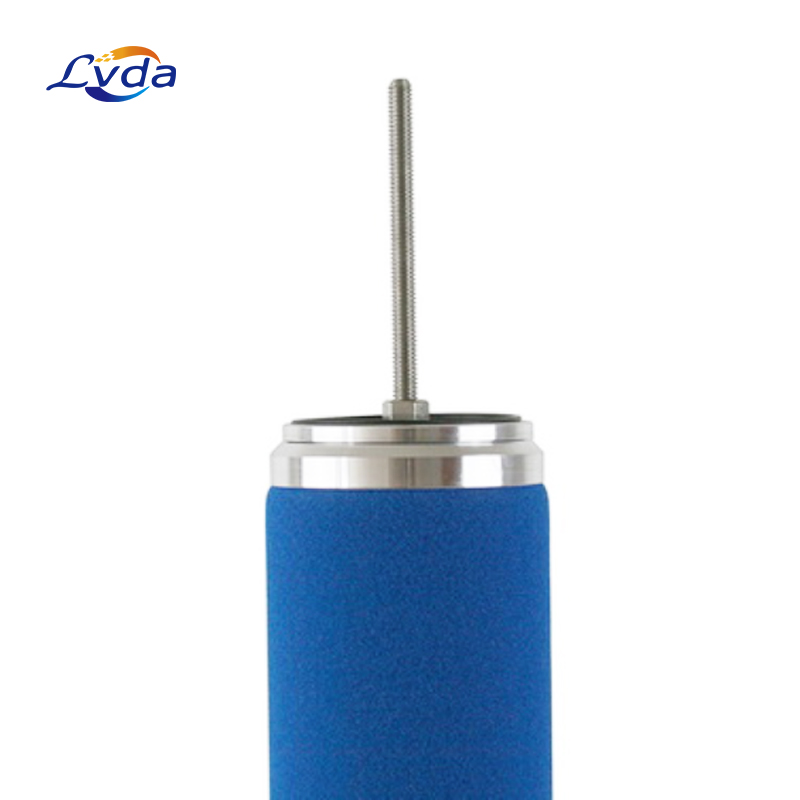

Replacement for Kaeser filter

Model Number: E-F-138

Height: : 518.00 mm

Diameter: : 82.00 mm

Particle retention: : 0.01 µm

Life cycle: : 4000- 6000 hours

ISO9001:2015 : ISO9001:2015

Get Quotation

Product Details

- main pipeline filter

Protect the system as much as possible after the cooler in the air compressor or after the freeze dryer and other filters.

- air line filter

The apparatus removes moisture and particles in the form of tools, machinery, motors, cylinders, and a class of ultra high efficiency oil removal filters, or adsorption dryers.

- high efficient filter for eliminating oil

Often used upstream of an adsorption dryer or downstream of a refrigeration dryer to ensure that the air used in the system is completely oil-free.


E-B High-capacitive surface filtration by pleated filter fabric for course separation

of solid particulate.

E-C High-capacitive coalescing depth filtration by two-layered pleated filter fabric for general purpose

separation of solid and liquid particulate. E-E

E-F High-capacitive coalescing depth filtration by two-layered pleated filter fabric for general purpose

separation of solid and liquid particulate.

E-G Adsorptive separation of oil vapours and odours by pleated filter fabric.


lternative replacement element cartridge to suit Kaeser Filter housing FF-138. Replaces Kaeser filter element part E-F-138 & 9.4879.0. Filtration Grade – 0.01 micron Coalescing.


Product features

1.The high performance filter element ensures reliable filtration with minimal pressure losses:

2.Coalescence filter with new, matrix filter-fibre structure

3.High efficiency even at low air volumes of only five percent of nominal flow

4.Reliable element-to-housing seal


Product parameters


End  cap material:

Aluminium

Diameter:

82.00  mm

Height:

518.00  mm

Differential  pressure dry:

80  mbar

Differential  pressure wet:

190  mbar

Operating  temperature Min.:

1,5  °C

Operating  temperature Max.:

65  °C

Flow  direction:

Inside  to outside

Grade:

S

Solid  class:

1

Oil  class:

1

Particle  retention:

0.01  µm

Particle  retention rate ISO:

100.00%

Residual  oil content:

0.01  mg/m³


Type:

Air  Filter

Product  name:

line  filter element

Certificate:

ISO9001:2015

Pressure:

0.7  - 8.0 MPa

Filtration  rate:

23m³/min

Life  cycle:

4000-  6000 hours

Filtration  accuracy :

0.01μm-3μm

Type:

HEPA  filter

Material  :

Fiberglass  from HV & Lydall company,
Stainless  steel frame,
Nylon  end cover
and  polyester high strength sponge



Filter  size

No.

Replacement  filter elements

FB

FC

FD

FE

FF

FG

6

1

E-B-6

E-C-6

E-D-6

E-E-6

E-F-6

E-G-6

10

1

E-B-10

E-C-10

E-D-10

E-E-10

E-F-10

E-G-10

18

1

E-B-18

E-C-18

E-D-18

E-E-18

E-F-18

E-G-18

28

1

E-B-28

E-C-28

E-D-28

E-E-28

E-F-28

E-G-28

48

1

E-B-48

E-C-48

E-D-48

E-E-48

E-F-48

E-G-48

71

1

E-B-48

E-C-71

E-D-71

E-E-71

E-F-71

E-G-71

107

1

E-B-107

E-C-107

E-D-107

E-E-107

E-F-107

E-G-107

138

1

E-B-138

E-C-138

E-D-138

E-E-138

E-F-138

E-G-138

177

1

E-B-177

E-C-177

E-D-177

E-E-177

E-F-177

E-G-177

221

1

E-B-138

E-C-221

E-D-221

E-E-221

E-F-221

E-G-221

185

1

E-B-185

E-C-185

E-D-185

E-E-185

E-F-185

E-G-185

283

2

E-B-283

E-C-283

E-D-283

E-E-283

E-F-283

E-G-283

354

2

E-B-185

E-C-185

E-D-185

E-E-185

E-F-185

E-G-185

526

3

E-B-185

E-C-185

E-D-185

E-E-185

E-F-185

E-G-185

708

4

E-B-185

E-C-185

E-D-185

E-E-185

E-F-185

E-G-185

885

5

E-B-185

E-C-185

E-D-185

E-E-185

E-F-185

E-G-185

1420

8

E-B-185

E-C-185

E-D-185

E-E-185

E-F-185

E-G-185

1950

11

E-B-185

E-C-185

E-D-185

E-E-185

E-F-185

E-G-185

2480

14

E-B-185

E-C-185

E-D-185

E-E-185

E-F-185

E-G-185


Product application


1．Pharmacy,

2．Chemical industry,

3．Environment protection,

4．Spin,

5．Pneumatic conveying,

6．Pneumatic tools,

7．Aseptic packaging,

8．Plastic,

9．Chemical engineering,

10．Metalware,

11．Mechanical electromechanical,

12．Electronics,

13．Metallurgy
