Product Details
FB element EB
Use: For removal of solid particles and larger volumes of condensate.
To be used as a pre-filter for solid particles and for removal oflarger volumes of condensate.
Size of particles removed: > 3 μm Max. fluid load at inlet: 25 g/m³
FC Element EC
Use: For removal of solid particles and smaller volumes of condensate.
To be used as a pre-filter for solid particles and for removal of small volumes of condensate.
A centrifugal separator or an air receiver should be installed upstream to provide initial removal of condensate.
Size of particles removed: > 1 μm Max. fluid load at inlet: 2 g/m³
FE element EE
EUse: For removal of fine solid particles, condensate droplets and oil aerosols.For use as a fine filter for enhanced compressed air quality. Removes solid particles, condensate droplets and oil aerosols.
Size of particles removed: > 0.1 μm Max. fluid load at inlet: 1 g/m³E f
FF element EF
Use: For removal of fine solid articles, condensate droplets and oil aerosols.The high capacity filter ensures exceptional compressed air quality in accordance with the most stringent requirements, e.g. for the pharmaceutical, electronics and foodstuff industries. Preferably use only with condensate-free compressed air. Ensure that an FE filter or are frigeration dryer is installed upstream from this filter. Size of particles removed: > 0.1 μmilte
FG element EG
Use: For removal of oil and adsorbable hydrocarbons, particularly suited to odour elimination.The activated carbon filter ensures exceptional compressed air quality in accordance with the most stringent requirements, e.g. for the pharmaceutical, electronics and food / beverage industries.Use only with compressed air that has already been dried and filtered. Ensure that a FE/FF filter and a dryer are installed upstream from this filter.

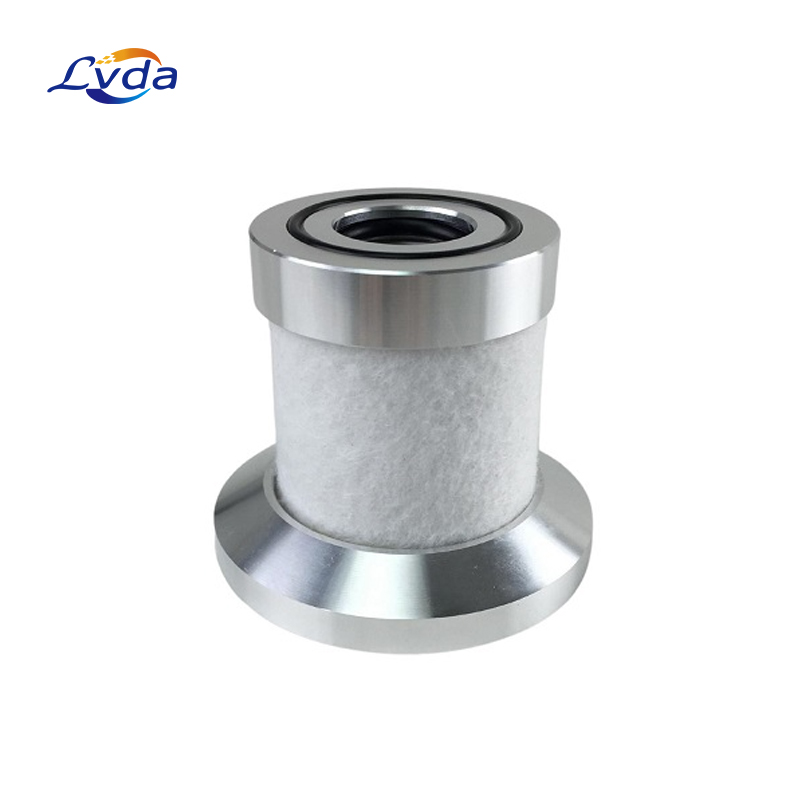

Alternative replacement element cartridge to suit Kaeser Filter housing FF-6. Replaces Kaeser filter element part E-F-6 & 9.4872.0. Filtration Grade – 0.01 micron Coalescing.
Product features
1. High porosity and excellent permeability, low pressure loss and large flow
2. Large sewage holding capacity, high filtering accuracy and long replacement period
3. It has excellent temperature and corrosion resistance, can be used for a long time at 480 ℃, and is resistant to nitric acid, alkali, organic solvent, and drugs
4. It can be folded into wavy shape to increase the filtering area and can be welded
5. High strength, even if the liquid is used for strong washing and vibration, the fiber will not fall off
6. It can be cleaned and regenerated, and can be used for many times.
Product parameters
End cap material: | Aluminium |
Diameter: | 60.00 mm |
Height: | 50.00 mm |
Differential pressure dry: | 80 mbar |
Differential pressure wet: | 190 mbar |
Operating temperature Min.: | 1,5 °C |
Operating temperature Max.: | 65 °C |
Flow direction: | Inside to outside |
Grade: | S |
Solid class: | 1 |
Oil class: | 1 |
Particle retention: | 0.01 µm |
Particle retention rate ISO: | 100.00% |
Residual oil content: | 0.01 mg/m³ |
Type: | Air Filter |
Product name: | line filter element |
Certificate: | ISO9001:2015 |
Pressure: | 0.7 - 8.0 MPa |
Filtration rate: | 23m³/min |
Life cycle: | 4000- 6000 hours |
Filtration accuracy : | 0.01μm-3μm |
Type: | HEPA filter |
Material : | Fiberglass from HV & Lydall company,
Stainless steel frame,
Nylon end cover
and polyester high strength sponge |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms,
8.Restaurant,
9.Home Use,
10.Retail,
11.Food Shop,
12.Printing Shops,
13.Construction works ,
14.Energy & Mining,
15.Food & Beverage Shops,
16.Advertising Company
