Product Details
Kaeser compressed air filters and activated carbon adsorbers provide your systems and
processes with reliable, highly efficient protection against dust, aerosols, and oil vapors – for all purity classes as per ISO 8573-1. They are perfectly compatible with our range of compressors and other compressed air treatment options.
Kaeser compressed air filters are available with a pressure of 232 psig, while high pressure filters range up to 650 psig; filters are also available in a silicon-free version, such as for use in painting processes.

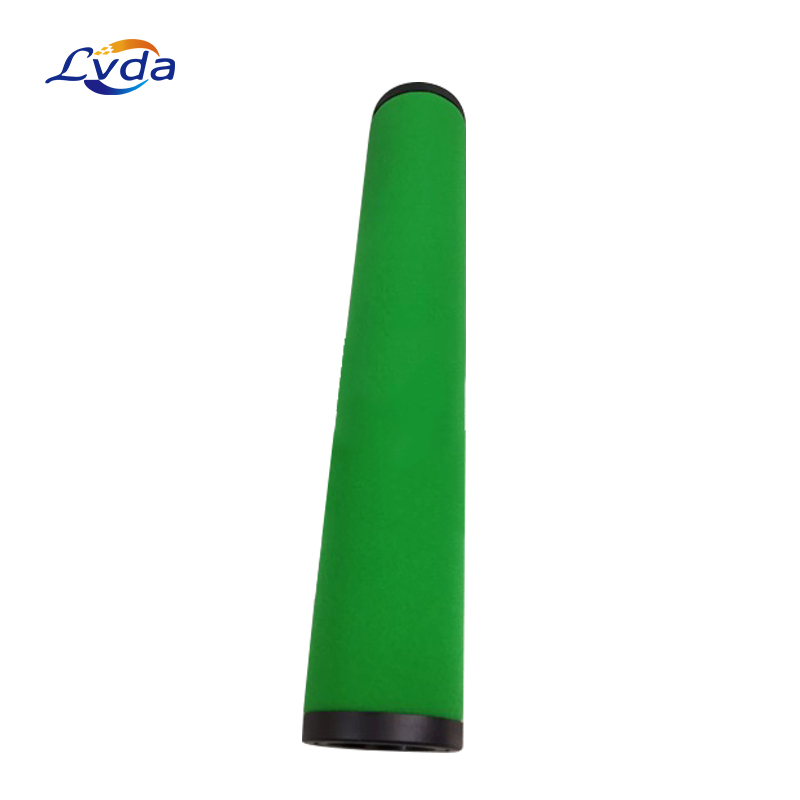

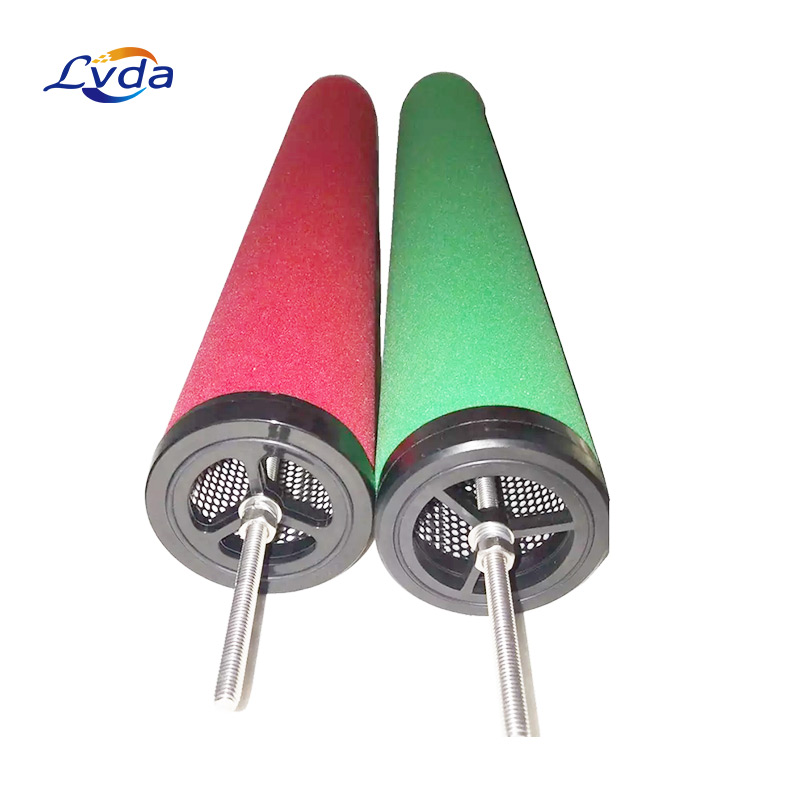

The Kaiser precision filter element E-F-138 E-G-138 E-F-107E-G-107 produced by our company is a home-made substitute for the imported filter element. The filter element adopts imported filter materials and advanced manufacturing process, which ensures the filtering effect and service life. The filter element is mainly used for the purification and filtration of air. It can filter water vapor, condensate, atmospheric dust, mechanical impurities, oil mist and microorganisms in the air to ensure the purity of air and the normal operation of the air system.
Alternative replacement element cartridge to suit Kaeser Filter housing FG-138. Replaces Kaeser filter element part E-G-138 & 9.4891.0.
Product features
1. High porosity and excellent permeability, low pressure loss and large flow
2. Large sewage holding capacity, high filtering accuracy and long replacement period
3. It has excellent temperature and corrosion resistance, can be used for a long time at 480 ℃, and is resistant to nitric acid, alkali, organic solvent, and drugs
4. It can be folded into wavy shape to increase the filtering area and can be welded
5. High strength, even if the liquid is used for strong washing and vibration, the fiber will not fall off
6. It can be cleaned and regenerated, and can be used for many times.
Product parameters
End cap material: | Aluminium |
Diameter: | 82.00 mm |
Height: | 518.00 mm |
Differential pressure dry: | 60 mbar |
Operating temperature Min.: | 1,5 °C |
Operating temperature Max.: | 65 °C |
Flow direction: | Inside to outside |
Grade: | A |
Solid class: | 1 |
Oil class: | 0/1 |
Residual oil content: | 0.005 mg/m³ |
Type: | Air Filter |
Product name: | line filter element |
Certificate: | ISO9001:2015 |
Pressure: | 0.7 - 8.0 MPa |
Filtration rate: | 23m³/min |
Life cycle: | 4000- 6000 hours |
Filtration accuracy : | 0.01μm-3μm |
Type: | HEPA filter |
Material : | Fiberglass from HV & Lydall company,
Stainless steel frame,
Nylon end cover
and polyester high strength sponge |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms,
8.Restaurant,
9.Home Use,
10.Retail,
11.Food Shop,
12.Printing Shops,
13.Construction works ,
14.Energy & Mining,
15.Food & Beverage Shops,
16.Advertising Company
