Product Details

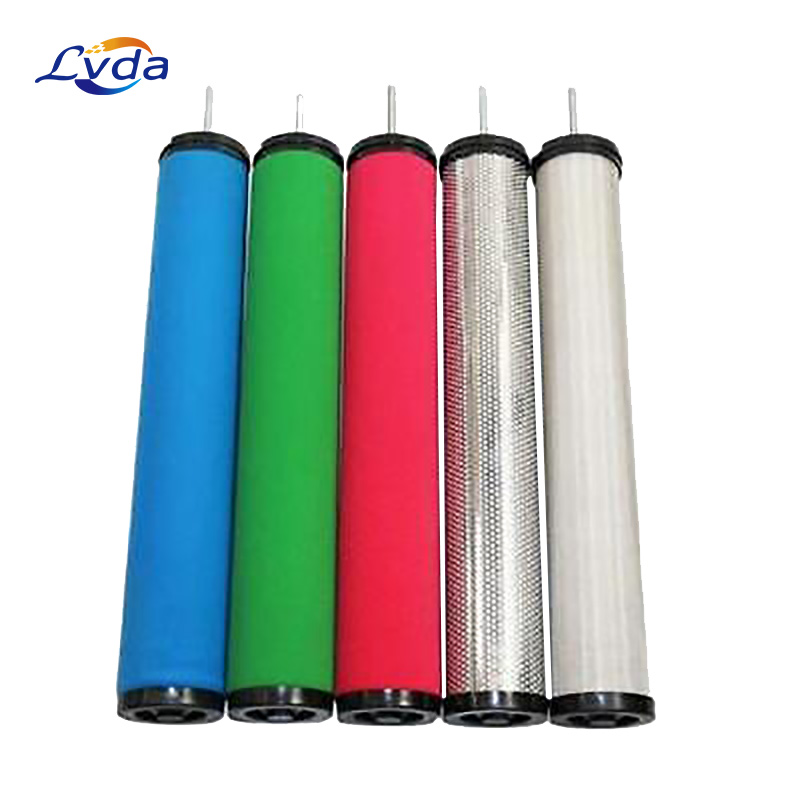

The Kaiser 9.4869.0 9.4881.0 9.4893.0 precision filter element produced by our company is a home-made substitute for the imported filter element. The filter element adopts imported filter materials and advanced manufacturing process, which ensures the filtering effect and service life. The filter element is mainly used for the purification and filtration of air. It can filter water vapor, condensate, atmospheric dust, mechanical impurities, oil mist and microorganisms in the air to ensure the purity of air and the normal operation of the air system.
Kaiser precision filter element 9.4869.0 9.4881.0 9.4893.0 mainly adopts imported glass fiber, wood pulp paper, cotton pulp paper and glass fiber. It is wound by an advanced automatic winding system. The filter and partition are wound neatly. The glass fiber filter paper with high strength, reliability, quality and performance is used as the filter material. The filter area is large, the flow is large, the resistance is small, and the efficiency can reach 9.9995
The spacer plate is aluminum alloy plate with wooden and metal frames, which can be used in various occasions.
The KAESER 9.4881.0 compressed air line filter replacement elements are designed to perform as the original. Line filter is a key component of your air treatment system. The function of the line filter is to remove contaminants from the air once compressed before entering in the distribution network or at the point of use, they are always a critical part of the air treatment system and in most cases work hand in hand with dryer.
Fine filters or oil removal filter will have the same function as a general purpose or after filter but will perform better. They are the most effective level of filtration for water aerosols, oil and fine particles. Fine filters are not recommended if you don't need a critical level of filtration, as they will increase pressure-drop and maintenance cost. The rating of fine-filter elements are between .1 microns and 0.01 microns in size. They are always installed with a pre-filter and/or a general-purpose filter. Some manufacturer will call it a grade 4 classification
There are multiple benefits to keep your line filter element in good working condition by respecting OEM replacement schedule including:
Positively affect the quality of your compressed air and therefore the protection of downstream equipment.
- Reduce the overall cost of the system by reducing the pressure drop across the filter.
- Protect your air dryer and reduce the overall cost of maintenance.
- Increase productivity and profitability by reducing overall operational costs.
Product features
1. High porosity and excellent permeability, less pressure loss, and large flow rate.
2. Large sewage receiving capacity, high filtering accuracy, and long replacement cycle.
3. Good temperature and corrosion resistance, long-term use at 480 ℃, and corrosion resistance of nitric acid, alkali, organic solvent, and drugs.
4. Wave breaking, to increase the filtering area, and welding processing.
5. High strength, even if the liquid is strongly washed Strong vibration, the fiber does not fall off 6. It can be cleaned and regenerated, and can be used for many times.
Product parameters
Differential Pressure | 80 mbar |
Filtration Media (FILT-MED) | Borosilicate micro glass fibre 0.01 µm 1 1 |
Body Height (H-0) | 820 mm |
Maximum Working Temperature | 65 °C |
Minimum Working temperature | 1.5 °C |
Outer Diameter (Ø OUT) | 82.5 mm |
Media type (MED-TYPE) | Borosilicate micro glass fibre |
Filtration Rating (F-RATE) | 0.01 µm |
Product application
1.Power plant
2.Steel mill
3.Subway engineering
4.Chemical factory
5.Ship
6.Paper mill
