Replace F530KD F530KA KAESER F series filter element

Product Details

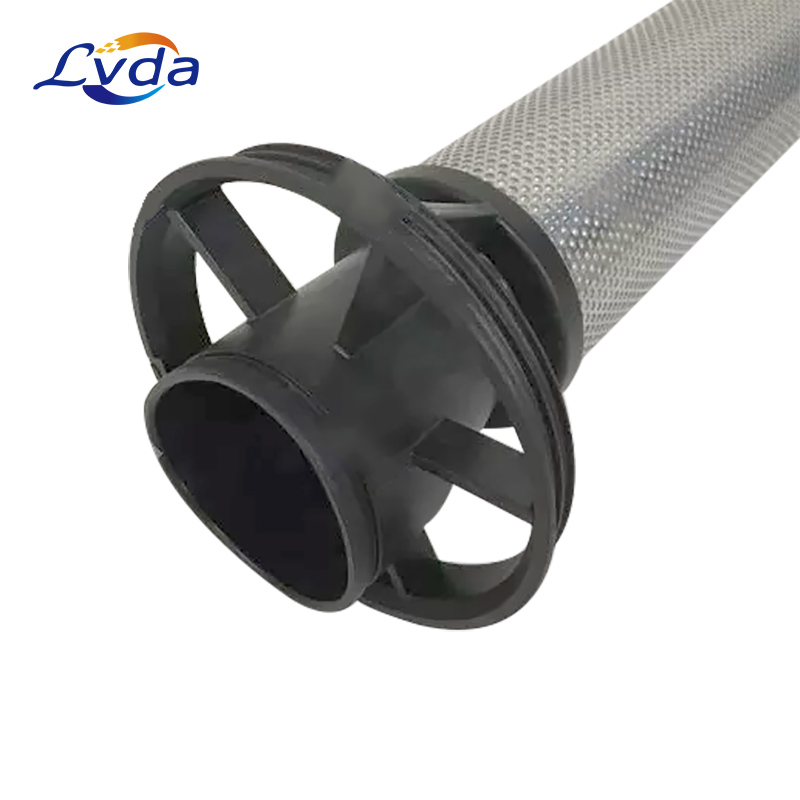

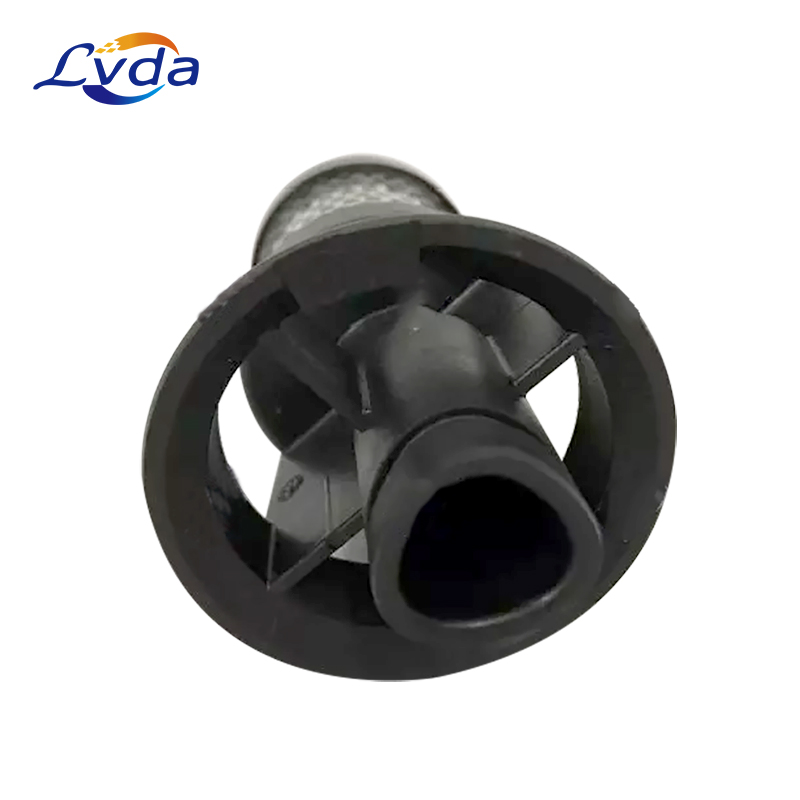

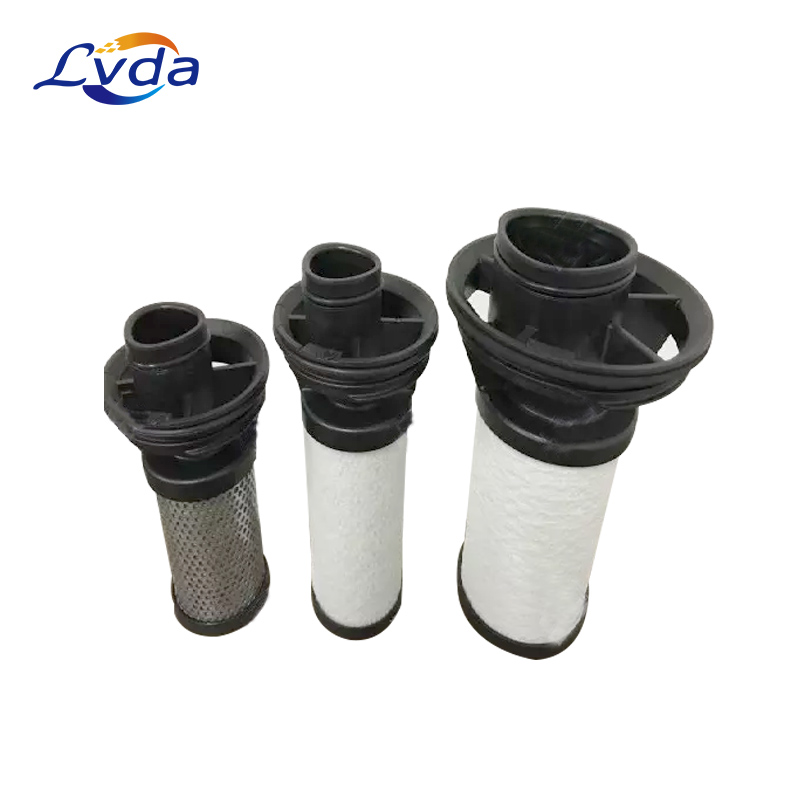

KAESER FILTER products feature a corrosion-resistant aluminium housing and stable filter elements. The practical bayonet lock ensures automatic positioning of the housing and element seals, Both seals are components of the filter element.This means that a filter housing can be sealed only if a filter element has been inserted. A locking screw prevents unintentional opening of the housing when under pressure and also provides housing venting.

The efficiency of a compressed air filter depends most of all on pressure loss. KAESER FILTER products feature generously sized housings and filter surfaces, innovative flow dynamics and high-performance filter media. These features result in up to 50 % lower pressure loss in comparison to other filters on the market – a value that remains virtually constant throughout the entire service life of the filter element. This reduces the load on upstream compressors, thereby creating the potential for significant reductions in costs and CO2 emissions.

Type Initial Dp (psid) Residual Oil Content Particle Retention Rate

Grade KE Coalescing Filter 1.45 <0.01 ppm1 99.99998% on 0.01 micron particles

Grade KB Coalescing Filter 1.3 1 ppm1 99.9999% on 0.01 micron particles

Grade KD Coalescence Filter 0.7 1 ppm1 90% on ISO fine dust

Grade KA Activated Carbon Filter 1.45 <0.003 ppm1 N/A

Product features

1.Clean compressed air at low cost

2.Standard-compliant purity

3.Service-friendly design, straightforward handling

4.Minimal pressure loss, maximum savings

Product parameters

Product application

1, Hydraulic Engineering Systems Industry;

2, Mining and Metallurgical Equipment Industry;

3, Construction, engineering machinery industry;

4, Machine Tool Industry;

5, Agricultural machinery industry;

6, Plastic machinery industry;

7, Petrochemical industry;

8, Ship and marine engineering equipment industry.
