Replacement for Kaeser filter

Model Number: F530KE

Width : 19.6 in

Height : 45.4 in

Weight : 234 lb

Solid Particle Removal : 0.01 µ

Oil Carry-Over : 0.001 ppm w/w

Get Quotation

Product Details

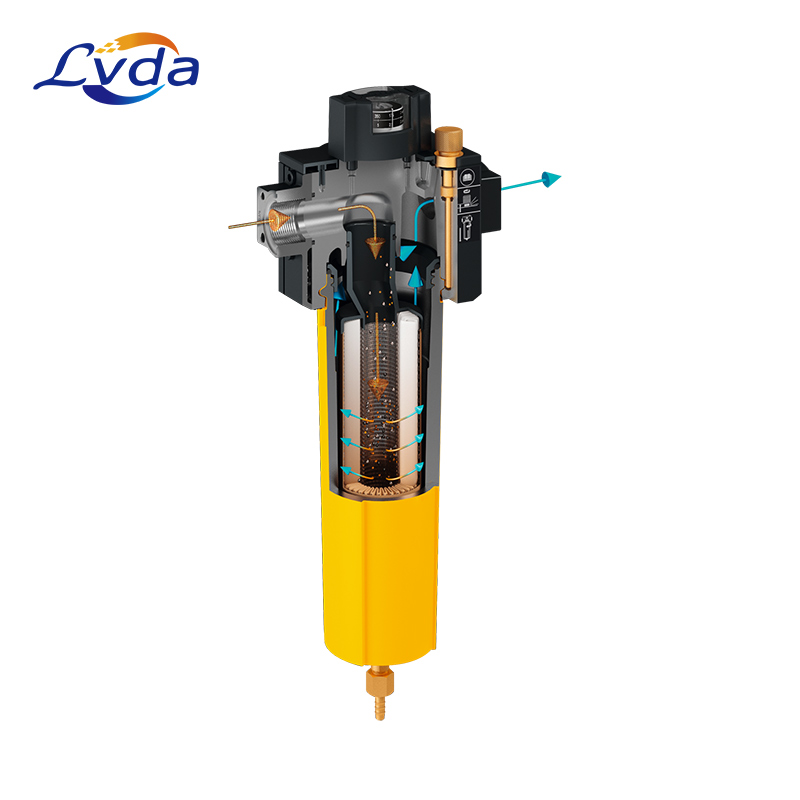

Used in contaminated compressed air lines (upstream of refrigeration dryers, for example) to remove aerosols and solid particles for ordinary air quality. Lower differential pressure and high filtration efficiency thanks to generously dimensioned filter housings, deeply pleated filter elements, flow-optimized element head and polyester drainage fleece.

Liquid Removal: 99.999+% of oil

Maximum Liquid Loading: 100 ppm w/w

Solid Particle Removal: 0.01 micron

Oil Carry-Over: 0.001 ppm w/w

Pressure


Product features

1.Designed and developed using the latest innovations and manufacturing techniques, Kaeser filter housings are designed with larger flow areas to ensure low pressure drop

2.Easier installation, operation and maintenance.

3.Consistent product quality while minimizing operating costs.


Product parameters


Model

F530KE

Place  of Origin

Henan,  China

Brand  Name

LVDA

Life  span

4000H

Certificate

ISO9001:2015

Quality

100%  Tested

Air  Flow at 100 psig

1875  cfm

Connection  Size

4  Flange

Maximum  Working Pressure

232  psig

Width

19.6  in

Height

45.4  in

Weight

234  lb

Standard  Features of Filters

Manual  Condensate Drain

Model  Type

Pressure  Vessel

Liquid  Removal

99.999+  % of oil

Maximum  Liquid Loading

100  ppm w/w

Solid  Particle Removal

0.01  µ

Oil  Carry-Over

0.001  ppm w/w

Pressure  Drop - Dry

.07  psi

Pressure  Drop - Wet

2.9  psi

Maximum  Inlet Temperature

150  ºF

Replaces

KOX  - 1875P


Product application

1, Hydraulic Engineering Systems Industry;

2, Mining and Metallurgical Equipment Industry;

3, Construction, engineering machinery industry;

4, Machine Tool Industry;

5, Agricultural machinery industry;

6, Plastic machinery industry;

7, Petrochemical industry;

8, Ship and marine engineering equipment industry.
