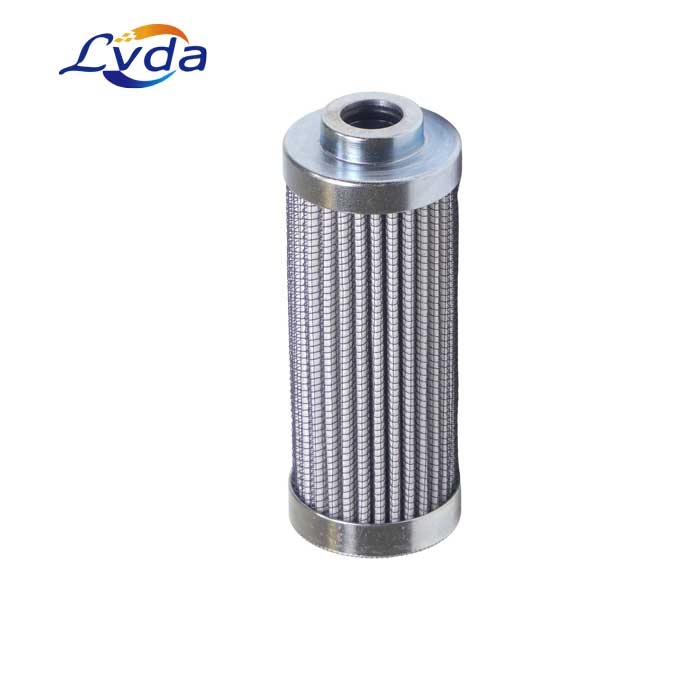

303064 Filter Element For Hydraulic System

Product Details

This 303064 filter is widely used in hydraulic oil filter system and lubrication system to guarantee the normal operation of the system.It is used for filtering out the metal particles and rubber impurities cause by wearing in the oil to guarantee the normal operation of the system.

Hydraulic Filter Cartridge

(1)The quality and performance can be guaranteed as original elements.

(2)Filter accuracy: 1um, 3um, 5um, 10um, 20um, 25um, 40um, 50um, 80um, 100um, 150um, 200um

(3)Filter material: Glass fiber, filter paper, stainless steel wire mesh.

(4)End caps material: Carbon steel & stainless steel & Aluminum & Nylon & NBS.

(5) Temperature range: -4°F~212°F

(6) Collapse pressure rating: 21bar-210bar (Hydraulic Liquid Filtration)

(7) O-ring Material: VITON, NBR.

(8) Working medium: hydraulic oil

P/N for reference

01.E1201.40G.10.S.P 01.E150.10G.30.E.P 01.E150.10VG.HR.E.P 01.E150.16VG.30.E.V 01.E150.25G.HR.E.P 01.E150.3VG.30.E.V 01.E150.6VG.HR.E.P.V 01.E170.10G.30.E.V 01.E170.16VG.30.E.V 01.E170.25VG.30.E.P 01.E170.40G.30.E.P 01.E175.100G.16.E.P 01.E2001.10VG.10.E.V 01.E2001.130G.10.S.V 01.E2001.2000G.10.E. 01.E210.16VG.16.E.P 01.E30.100G.30.E.P 01.E3001.10VG.10.S.V 01.E320.10P.16.E.P 01.E330.250G.16.E.P. 01.E360.10VG.HR.E.P 01.E425.10VG.16.S.V 01.E631.3VG.16.E.P. HP90.G.4.P.S2. 01.E950.10VG.10.S1.P 01.NR1000.80G.10.B.V. 03.1.901.40G.16.B.P 01.E150.6VG.HR.E.V. 01.NL40.25VG.30.E.P. 01.E900.250G.HR.E.P.VA 01.NR630.6VG.10.B.V.VA 01.NL63.25G.30.E.P. 01.NL100.40G.30.E.P. D68804 01.E60.16VG.HR.E.P 01.E240.10VG.HR.E.P 01.E450.10VG.HR.E.P 01.E950.10VG.10.E.P 01.NL.40.25G.30.E.P-312624 02.0140D.40G.30.E.P.IS06
