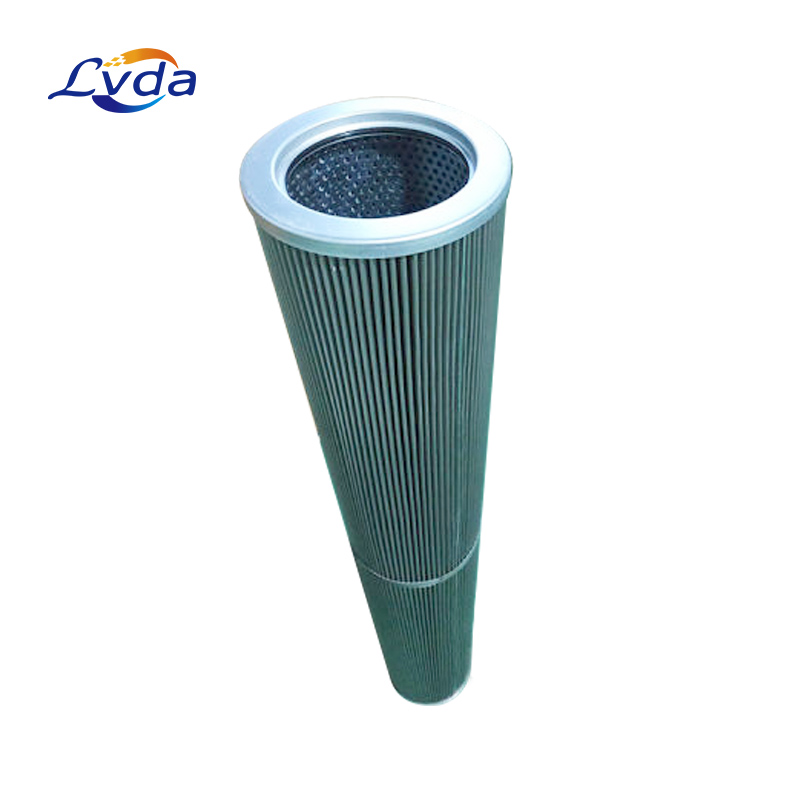

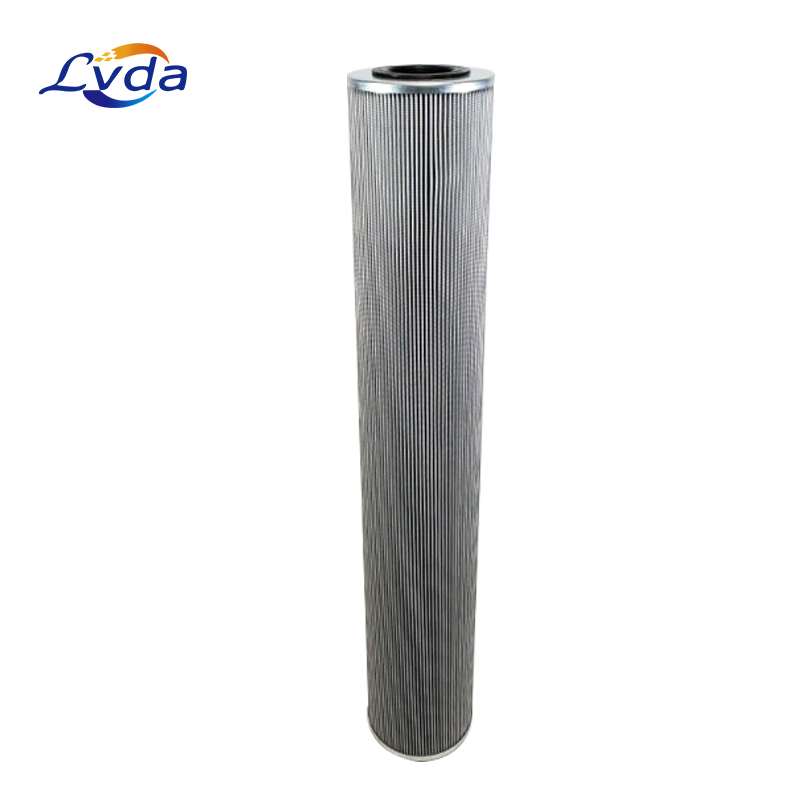

LVDA high quality Beta 1000 Microglass filter elements are constructed with dual layers of optimized Microglass and mesh support to withstand challenging filtration applications and exacting requirements, making our replacement for Hy-Pro HP107L36-3MB a true value. The cost savings compared to expensive OEM brands just adds to the value. Microglass is known to have a longer life due to its lower clean differential pressure and higher dirt-holding capacity. Our filter media is backed by ISO16889 multi-pass and Dynamic Filter Efficiency (DFE) testing.
This filter element can be used for filtering hydraulic fluid, water glycols, diesel, machining fluids, lubricating oil, coolants, gasoline, process fluids, turbine and compressor lube oils, synthetic lubricants, and many more chemicals.
Product features
1. High filtering Accuracy
2. Filtration efficiency, speed, capacity and more capacity
3. Contamination of pollutants, pollution capacity
4. Strong removal, absorption capacity
Product parameters
OEM Part Number | HP107L36-3MB |
Efficiency | Beta 3[c] >= 1000 (ISO 16889 & DFE) |
Collapse Rating | 150 |
Max Temp (F) | 225 |
Adhesive | Epoxy |
By-Pass | Yes, 45 psid |
End Cap | Corrosion Resistant CS/AL |
Flow Direction | Out/In |
Media Type | Microglass supported both sides |
Recommended Change Out (psid) | 25 |
O.D. | 5.97 |
Length | 35.88 |
Seal Material & Type | Buna O-Ring |
Quantity per Carton | 1 |
Weight per Filter (lbs) | 15 |
Product application
1.Chemical and petrochemical industry
2.Pharmaceutical industry
3.Prefiltration of sterile filters
4.Filling machines
5.Food & beverage industry
6.Packing machines
7.Process industry
