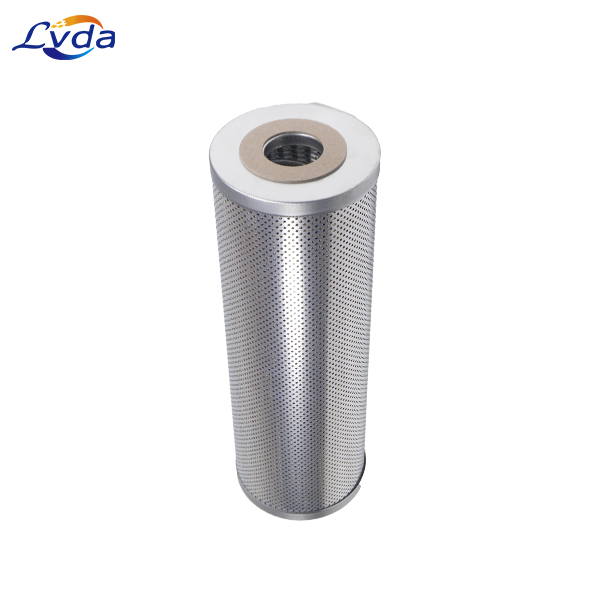

PL718-10-CN Hydraulic Filter

Product Details

The PL718-10-CN is a high-performance hydraulic filter cartridge belonging to the PL718 series, developed to meet strict industrial filtration demands. It is predominantly utilized to filter hydraulic oil, ensuring the hydraulic system operates efficiently by eliminating various contaminants.

Filtration Media: It uses glass fiber media, which is capable of providing effective filtration and high dirt-holding capacity. Some replacements may use heavy-duty phenolic or microglass synthetic media to enhance filtration performance.

Filtration Grade: Nominal filtration rating could be around 10 microns, while some data shows it might be 52 or 69 microns at Beta 75 (98.7% efficiency).

Operating Pressure: Ranging from 21 bar to 210 bar, suitable for various hydraulic liquid filtration scenarios.

Length: 18 inches (about 454 mm).

Outside Diameter: 6-1/4 inches (around 155 mm).

Inside Diameter: 2-9/16 inches.

Seal Material: O-ring materials usually include Viton or NBR; the seal type is often a fiber flat seal.

Maximum Temperature: The maximum service temperature reaches 250°F (about 121°C).

Weight: Approximately 3.4 kg.
