Product Details
It is directly installed in the oil tank, simplifying the system pipeline, saving space and making the system layout more compact. With self-sealing valve: when repairing the system, the oil in the tank will not return. When replacing the hydraulic filter element, the pollutants in the hydraulic filter element can be carried out of the oil tank together, so that the oil will not flow out. With bypass valve: when the hydraulic filter element is blocked by pollutants and the pressure difference reaches 0.35MPa, if the hydraulic filter element cannot be replaced immediately, the bypass valve on the top of the hydraulic filter element will automatically open (its pressure difference is 0.4MPa) to protect the normal operation of the system. With magnetic device: it can filter the ferromagnetic particles above 1LJm in the return oil.

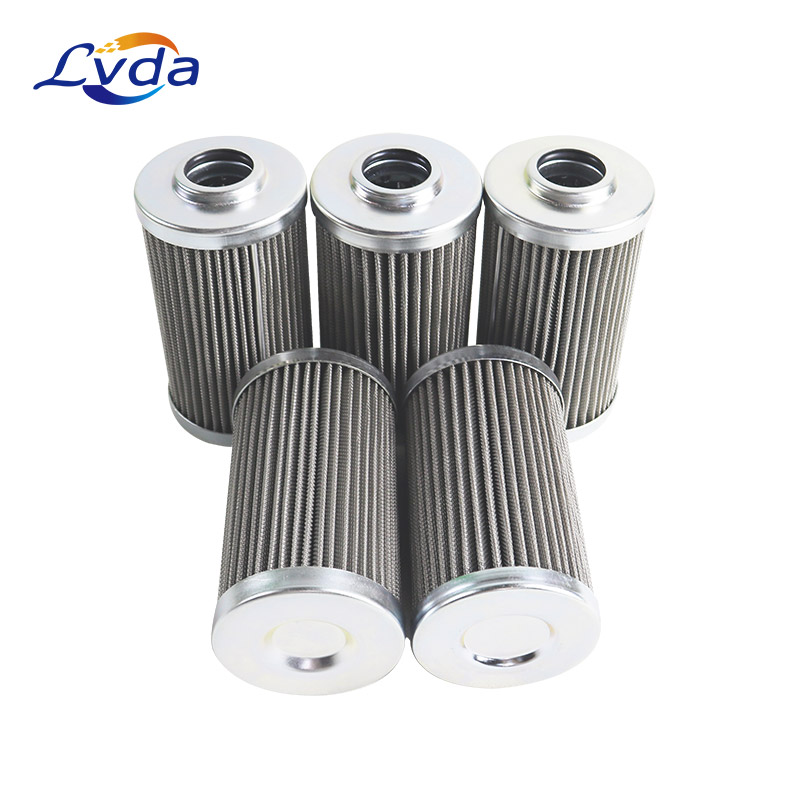

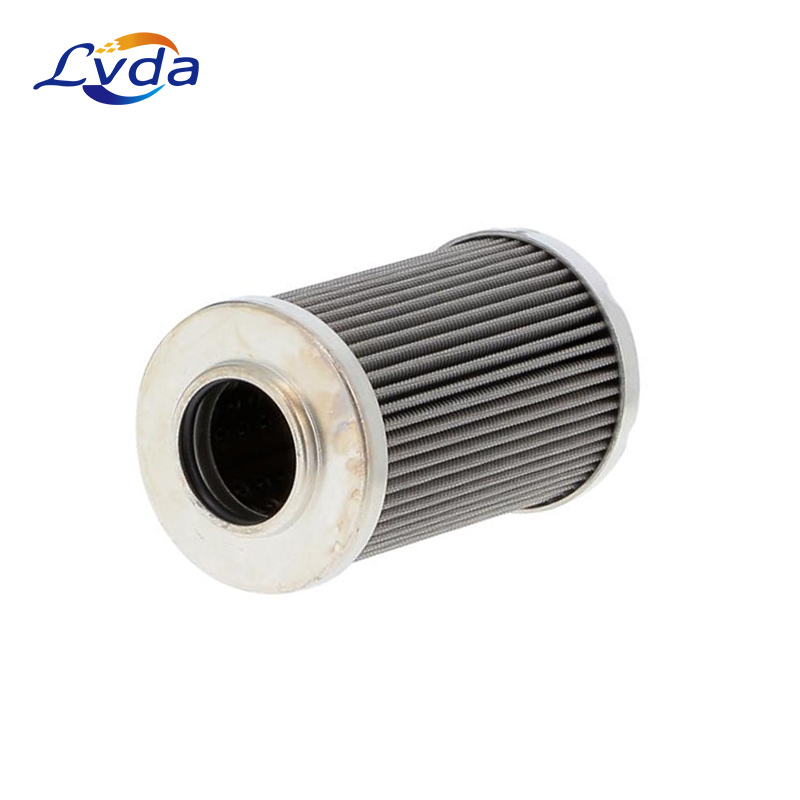

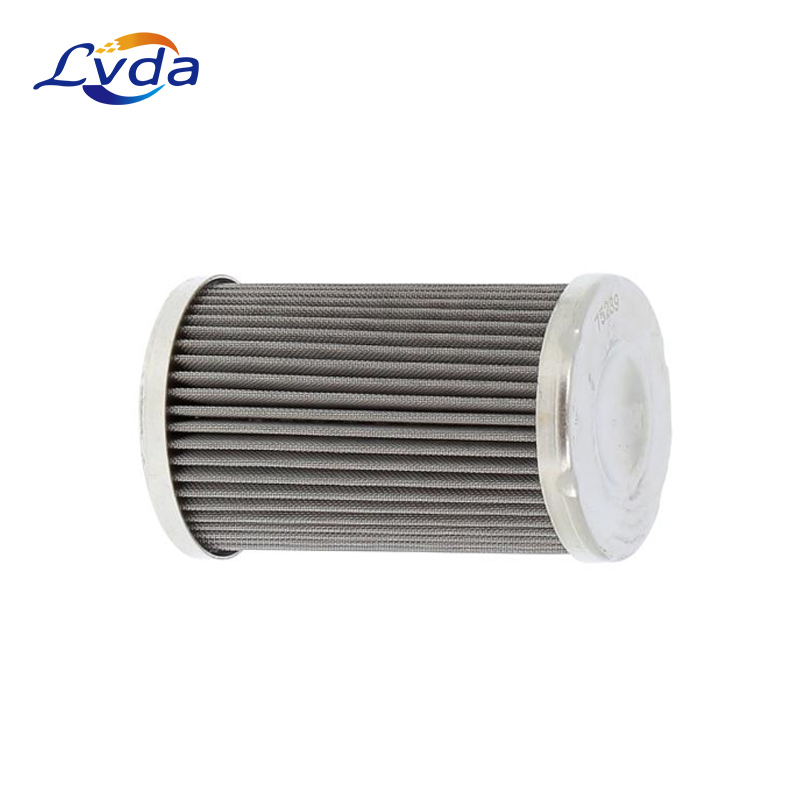

Supply hydraulic folding filter element SH75239 to be tested according to the following standards:
Verification of filter rupture resistance shall be in accordance with ISO 2941
Structural integrity of filter element according to ISO 2943
The compatibility of filter element shall be verified according to ISO 2943
Filter filtration characteristics according to ISO 4572
Filter differential pressure characteristics according to ISO 3968
Flow - differential pressure characteristic test according to ISO 3968
Product features
1.Excellent chemical compatibility, suitable for filtering strong acids, alkalis and organic solvents;
2.The filter membrane is foldable deep filtration with large filtration area;
3.Low differential pressure, strong contaminant capacity and long service life;
4.Wide filtering precision can be selected.
Product parameters
Model: | SH75239 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
working temperature | -20~120（℃） |
Maximum working differential pressure | 21（MPa） |
Filtering precision | 20 |
Inlet and outlet caliber | 10-100（mm） |
performance | Anti-static |
Raw water pressure | 230（KG/c㎡） |
Filter area | 120 |
D1 (mm) | 69.0 mm |
D2 (mm) | 33.0 mm |
H1 (mm) | 115.0 mm |
H2 (mm) | 111.0 mm |
Product application
1．Pharmacy,
2．Chemical Industry,
3．Food,
4．Drinks,
5．Environment Protection
6．Spin,
7．Cosmetic Production,
8．Pneumatic Conveying,
9．Pneumatic Tools,
10．Aseptic Packaging
11．Plastic,
12．Chemical Engineering,
13．Metalware,
14．Mechanical Electromechanical,
15．Electronics,
16．Metallurgy
