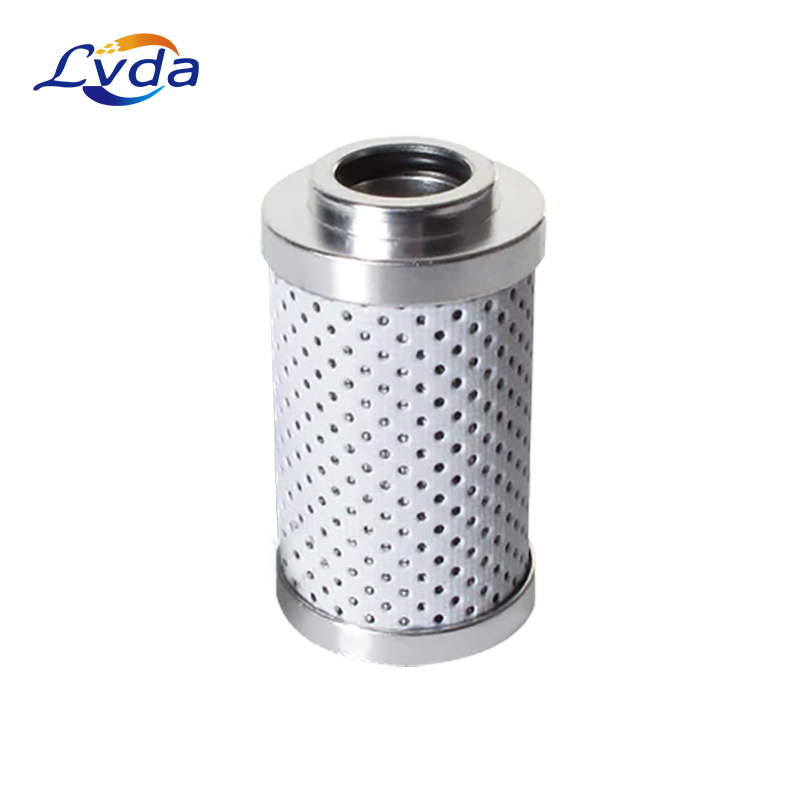

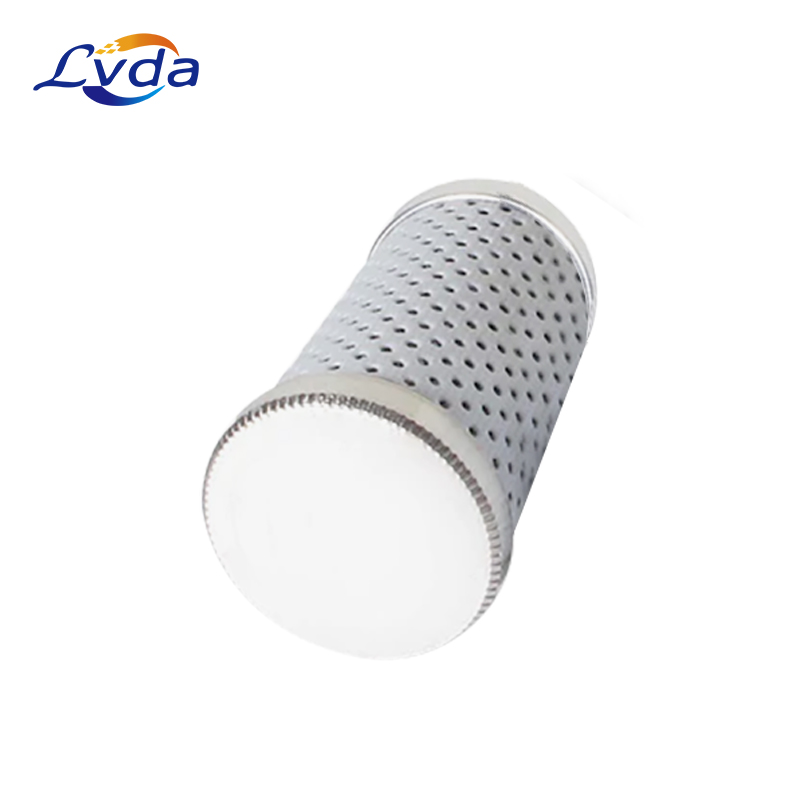

Substitute good quality SH84453 HiFi Filter
Substitute good quality SH84453 HiFi Filter
Substitute good quality SH84453 HiFi Filter

Substitute good quality SH84453 HiFi Filter

Replacement for HIFI filters

Model Number: SH84453

Outer Diameter : 32 mm

Inner Diameter : 16.1 mm

Length : 70 mm

Flow Direction : OUT-IN

Collapse Pressure : 210 BAR

Get Quotation

Product Details

The oil filter of air compressor is mainly used to filter metal particles and impurities in the special oil of air compressor to ensure the cleanness of the oil entering the main engine. High-precision filter paper is the main filter material of the oil filter element. The standard time for replacing the oil filter element is 2000 hours, and it must be replaced after expiration. For air compressors with poor working environment, the service time of the filter element should be shortened. Once the filter element is used beyond the time limit, the insufficient oil return after the oil filter element is blocked will cause the exhaust temperature to be too high, shorten the service life of the oil and oil separation filter element, and the insufficient oil return after the blockage will lead to the insufficient lubrication of the main engine, leading to the serious shortening of the service life of the main engine and damage to the main engine.


Product features

1.Protect all moving parts such as connecting rods, camshaft and valvetrain, from wear and damage.

2.Keep oil clean by capturing contaminants that cause engine damage.

3.Deliver essential engine protection for maximum cold flow performance.

4.Removes contaminants from the lube oil system

5.Traps abrasive contaminants in the lube oil to keep them from entering the lubrication system

6.Prevents engine damage from dirt and particles in the oil


Product parameters

Model:

SH84453

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

2000-  4000h

Certificate:

ISO9001:2015

Efficiency  1

25µ

Style

Pressure  Filter

Outer  Diameter

32  mm

Inner  Diameter

16.1  mm

Length

70  mm

Media  Type

Wire  Mesh

Flow  Direction

OUT-IN

Collapse  Pressure

210  BAR

Seal

Nitrile

Temperature  Range

-30  - +100°C


Product application

1.Mainly used for steel mill ,

2.power plant ,

3.mine/resource depot ,

4.paper mill,

5.paper making enterprise power hydraulic station system filtration,

6.petroleum,

7.metallurgy,

8.chemical industry,

9.railway,

10.oil field,

11.oil exploitation,

12.pharmaceutical factory aviation,

13.electronics,

14.power,

15.pharmaceutical,
