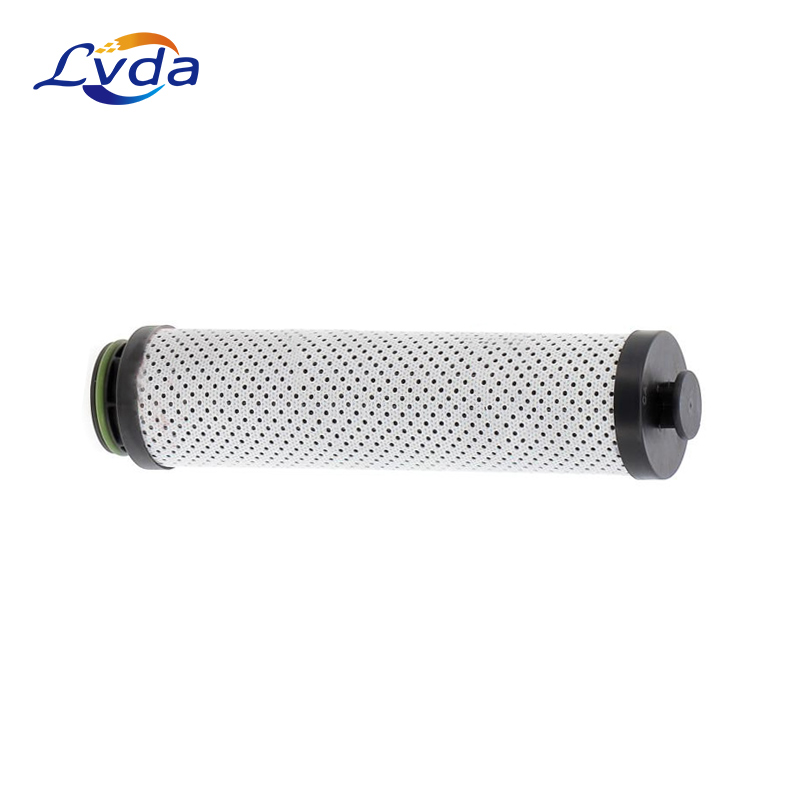

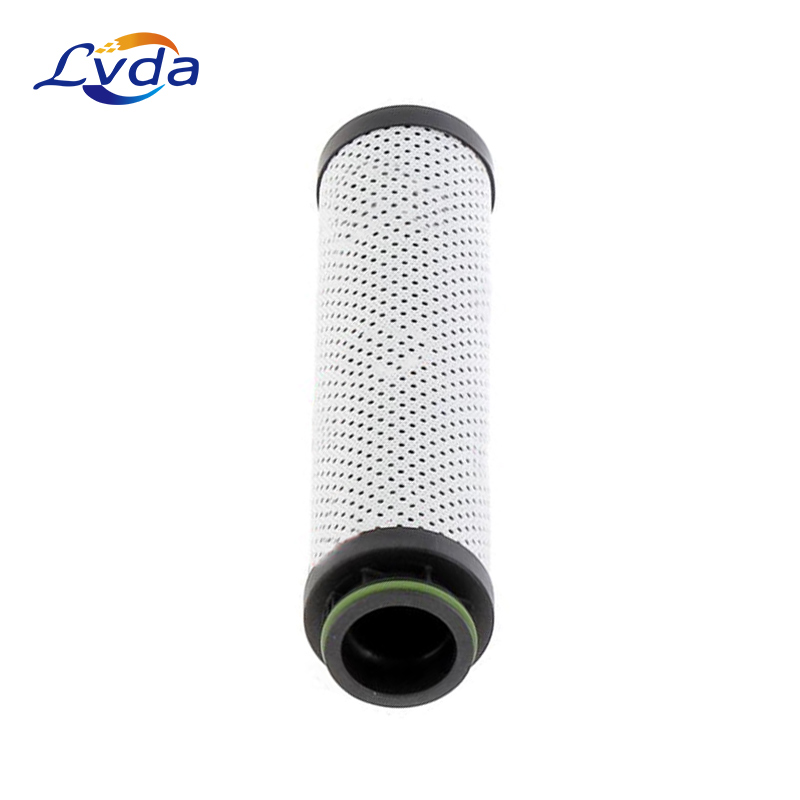

Product Details
The filter element is mainly used in the hydraulic system to filter the solid particles and colloidal substances in the working medium, effectively control the pollution degree of the working medium, and achieve the function of purifying the medium.
The material used in the filter element is very easy to be damaged. Please pay attention to maintenance and care during use. Replace at any time to increase the service life of the machine.
The larger particles in the filter medium can purify the material, so that the machine and equipment can operate normally and improve the use efficiency.
Product features
1.It is made of single or multiple layers of metal mesh and filter material, and the number of layers and mesh forming the mesh depends on different use conditions and purposes, with high concentricity
2.High pressure resistance, good straightness, stainless steel material, without any burr, ensuring long service life.
3.Industrial applications include distillation, absorption, evaporation, filtration and other processes in the crude and fine filtration of lubricating oil and fuel oil. There are various models and specifications, which can be installed and replaced;
4.Convenient and fast, small initial pressure difference, long cleaning cycle.
Product parameters
Model: | SH87712 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 2000- 4000h |
Certificate: | ISO9001:2015 |
D1 (mm)
Outer diameter | 54.0 mm |
D2 (mm) | 44.0 mm |
D3 (mm) | 42.0 mm |
H1 (mm)
Total Height | 232.0 mm |
H2 (mm) | 222.0 mm |
H3 (mm) | 209.0 mm |
Product application
1. Metallurgy: used for filtration of hydraulic system of rolling mill and continuous casting machine and filtration of various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in the process of oil refining and chemical production, and particle removal and filtration of oil field well injection water and natural gas.
3. Textile: purification and uniform filtration of polyester melt in the process of drawing, protective filtration of air compressor, oil and water removal of compressed gas.
4. Electronics and pharmaceuticals: pretreatment and filtration of reverse osmosis water and deionized water, pretreatment and filtration of detergent and glucose.
5. Thermal power and nuclear power: purification of lubricating system, speed control system, bypass control system oil of gas turbine and boiler, purification of feed pump, fan and dust removal system.
6. Mechanical processing equipment: lubrication system and compressed air purification of paper machinery, mining machinery, injection molding machines and large precision machinery, dust recovery and filtration of tobacco processing equipment and spraying equipment.
7. Railway internal combustion engine and generator: filtration of lubricating oil and engine oil.
8. Automobile engine and construction machinery: air filter, oil filter, fuel filter for internal combustion engine, hydraulic oil filter, diesel filter, water filter for construction machinery, ships and trucks.
9. Various lifting and handling operations: engineering machinery such as lifting and loading, special vehicles such as fire fighting, maintenance and handling, ship's cargo winch, windlass, blast furnace, steelmaking equipment, ship lock, ship door opening and closing device, lifting orchestra pit and lifting stage of the theater, etc
