Product Details

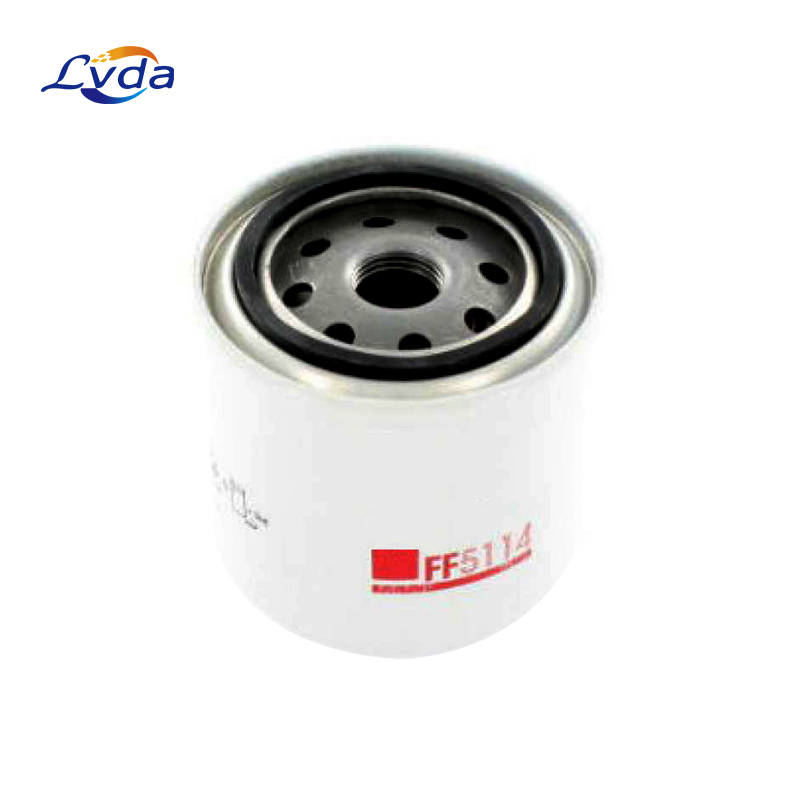

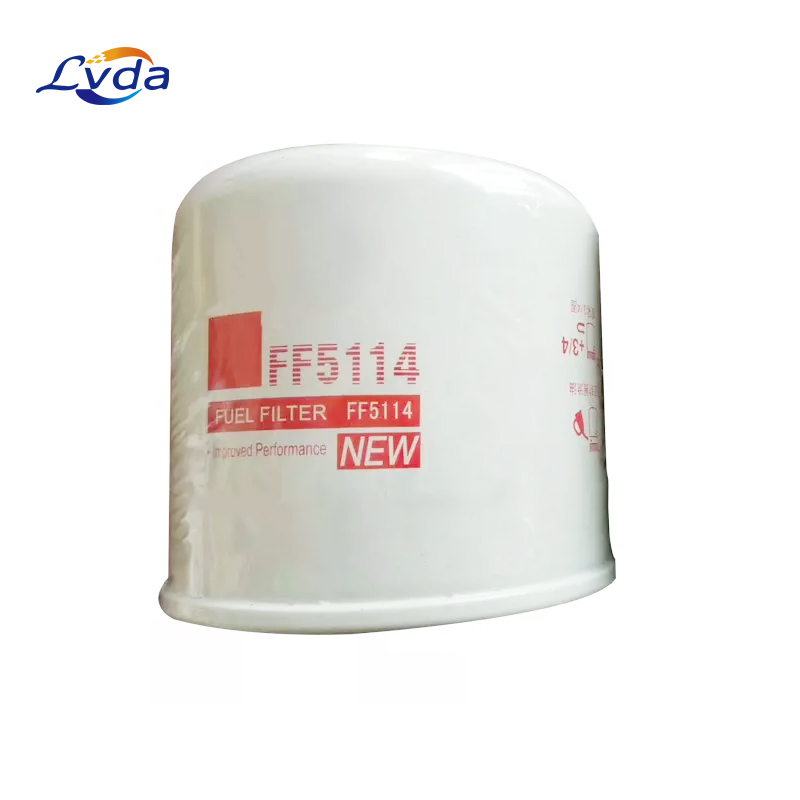

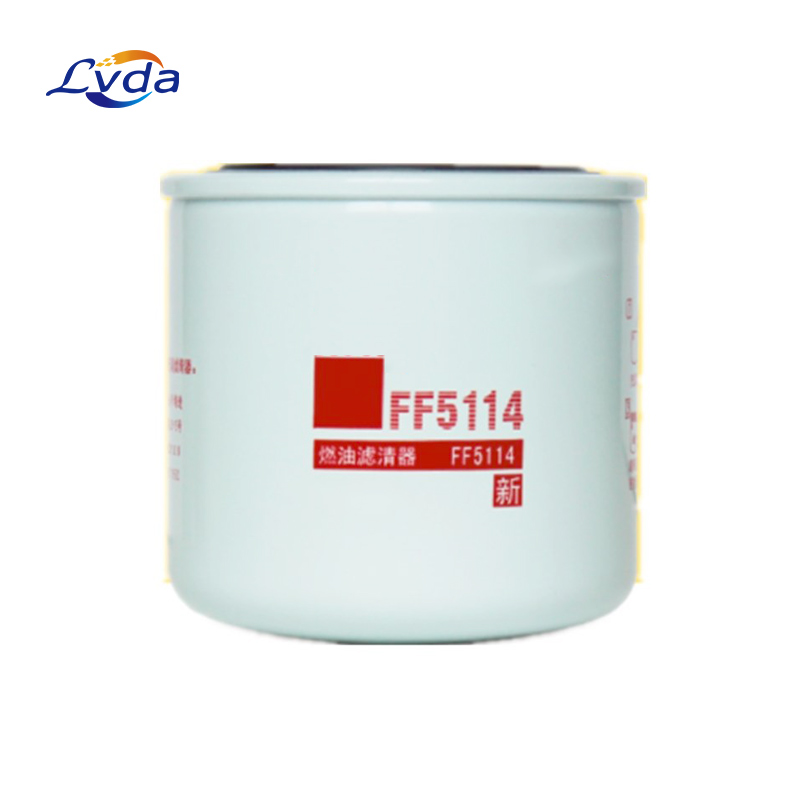

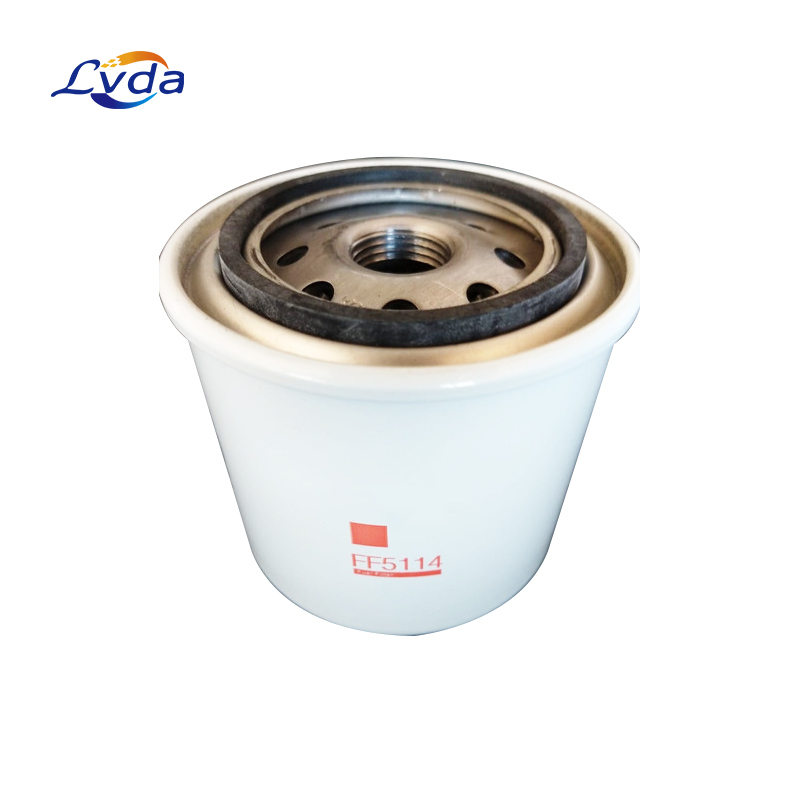

Cummins Fleetguard Fleetguard Fuel Filter Spin-On Fleetguard Fuel Filtration Products Deliver Best-In-Class Performance Using Proprietary Stratapore Or Nanonet Media Which Remove And Hold Onto Harmful Contaminants Over The Service Life Of The Filter. Use Of Fleetguard On-Engine Filters Ensures Optimal Fuel System Protection Per Demanding Oem Specifications.
The Fleetguard Fuel Filter FF5114 is equivalent to Komatsu 600-311-7460, Fleetguard FF5081, Donaldson P550057.
Cross Ref:
BALDWIN BF7601, DONALDSON FFP55-3240, FRAM P-3627, NAPA 3386, PUROLATOR F50375, WIX 33386, 875 861477, Q88 BF7601, Q88 BF7648, Q88 BF954, U30 P3627, U30 P3788, U30 P4178, U30 P4530
Primary Applications:
AC TP-1119
AGCO 330143006
ALCO SP902
ALCO SP921
ALASKA DIESEL 24-52020
BALDWIN BF-954
BIG A 95386
BIG A 95388
BOBCAT 6663728
CARQUEST 86386
CUMMINS C6003112110
CUMMINS C6003117460
FIAT HITACHI 76595561
GMC 94414796
KOMATSU 6003112110
KOMATSU 6003117441
NISSAN 16403Z7000
TOYOTA 2330356031
Product features
1.Competitive price.
2.Continuance service and support.
3.Diversified rich experienced skilled workers.
4.Custom R&D program coordination.
5.Application expertise.
6.Quality,reliability and long product life.
7.Mature,perfect and excellence,but simple design.
Product parameters
Part Number: | FF5114 |
Parts Name: | Fuel Filter |
Brand: | Fleetguard |
Overall Height: | 81.79 mm (3.22 in) |
Largest OD: | 80.52 mm (3.17 in) |
Thread Size: | 3/4-16 UNF-2B |
Seam OD: | 84.07 mm (3.31 in) |
Gasket OD: | 64.01 mm (2.52 in) |
GASKET INSIDE DIAMETER: | 57.4 mm (2.26 in) |
EFFICIENCY, TWA BY SAE J 1985: | 97 % (97 %) |
MICRON RATING BY SAE J 1985: | 20 micron (20 micron) |
Standpipe: | No |
Product application
1. Metallurgy: It is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in oil refining and chemical production, oilfield injection Particle removal and filtration of well water and natural gas.
3. Textile: purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressor,Oil and water removal of compressed gas.
4. Electronics and pharmacy: pretreatment and filtration of reverse osmosis water and deionized water, and pretreatment of cleaning solution and glucose
Process filtering.
5. Thermal power and nuclear power: lubrication system, speed control system and bypass control system of gas turbine and boiler Purification of oil, water supply pump, fan and dust removal system.
6. Mechanical processing equipment: lubrication system of paper machinery, mining machinery, injection molding machines and large precision machinery
Purification of compressed air, dust recovery and filtration of tobacco processing equipment and spraying equipment.
7. Railway internal combustion engine and generator: filtering of lubricating oil and engine oil.
8. Automobile engine and engineering machinery: air filter, engine oil filter, fuel filter and engineering machine for internal combustion engine Various hydraulic oil filters, diesel filters and water filters for machinery, ships and trucks.
9. Various lifting and handling operations: lifting, loading and other engineering machinery to fire protection, maintenance and handling
Hoisting and closing of cargo winch, windlass, blast furnace, steelmaking equipment, ship lock and ship door Set, lift orchestra pit and lift stage of theater, various automatic conveying lines, etc.
