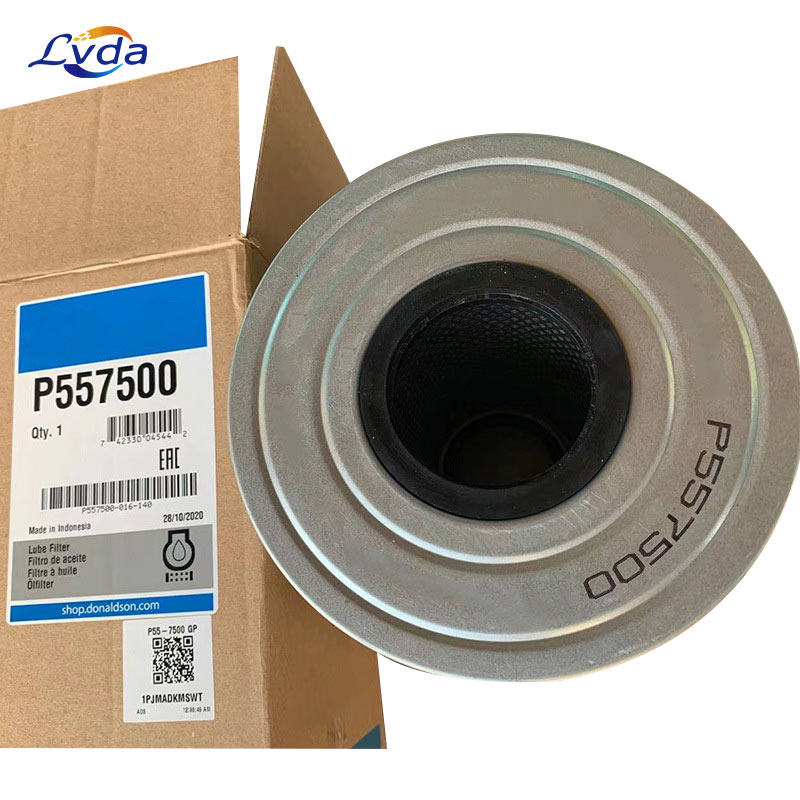

Replacement for Oil filter (insert) P557500 [Donaldson] LUBE FILTER, CARTRIDGE

Replacement for Oil filter (insert) P557500 [Donaldson] LUBE FILTER, CARTRIDGE

Replacement for Donaldson filters

Model Number: P557500

Efficiency 99% : 40 micron

Length : 254 mm (10.00 inch)

Outer Diameter : 188 mm (7.40 inch)

Media Type : Cellulose

Efficiency Test Std : ISO 4572

Product Details

Usage:

Lubrication system of the engine Caterpillar 3508, Caterpillar 3512, Caterpillar 3516, of agricultural machinery Caterpillar, Demag H185, Tamrock D90Ks.

Designation:

Oil filter P557500 Donaldson designed to remove various types of contaminants from engine oil as a result of wear of friction surfaces or the ingestion of solid fuel combustion products in the oil during the operation of the unit.

Peculiarities:

- filter is inserted in special case, which is mounted on the engine (these filters are called - insert or cartridge);

- in the basis of the filter - a cylinder on which, in a circle, mounted filter element, assembled with folds;

- oil filtration is carried out under the influence of pressure and high temperature of the lubricating environment.

Product features

1.Keep oil clean by capturing contaminants that cause engine damage.

2.Include heavy duty components that are built to perform, built to last.

3.Deliver essential engine protection for maximum cold flow performance.

Product parameters

Inner diameter , d	mm	67
Outer diameter , D	mm	188
Height , H	mm	254
Inner diameter , d1	mm	67
Efficiency 99% , E	micron	40
Inside diameter seals , d2	mm	67
Outside diameter seals , d3	mm	101.6
Filter type		Oil-Insert

Outer Diameter	188 mm (7.40 inch)
Inner Diameter	67 mm (2.64 inch)
Length	254 mm (10.00 inch)
Gasket OD	101.6 mm (4.00 inch)
Gasket ID	66.98 mm (2.64 inch)
Efficiency 99%	40 micron
Efficiency Test Std	ISO 4572
Media Type	Cellulose
Collapse Burst	6 bar (87 psi)
Style	Cartridge
Primary Application	CATERPILLAR 7N7500
