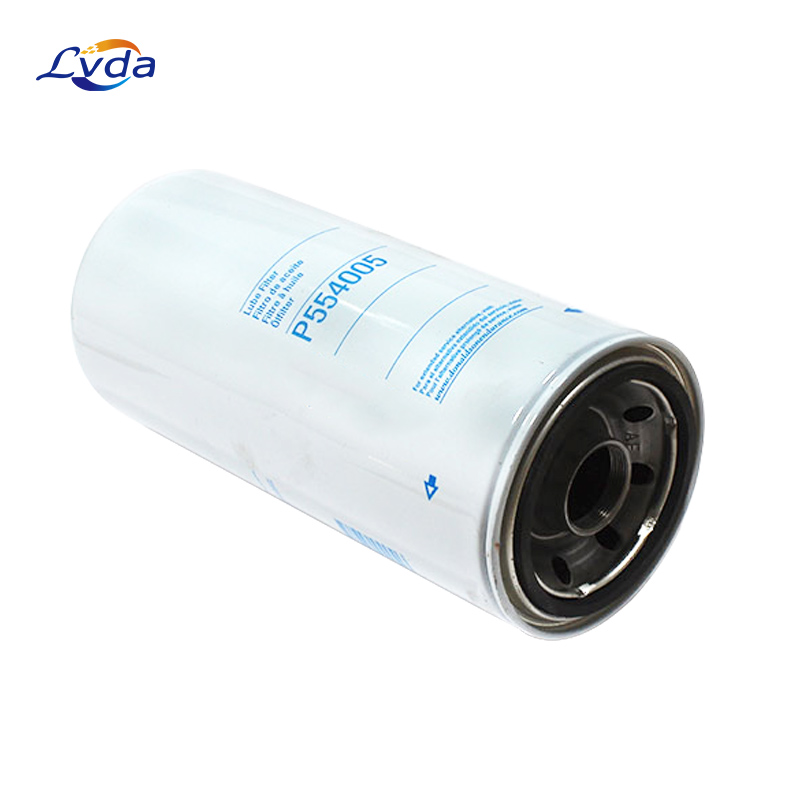

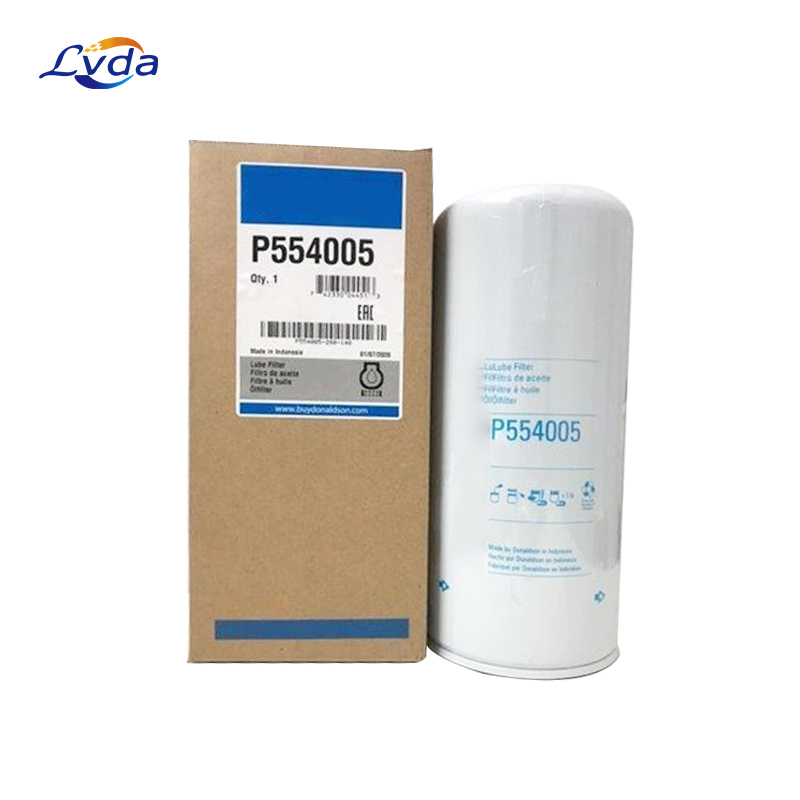

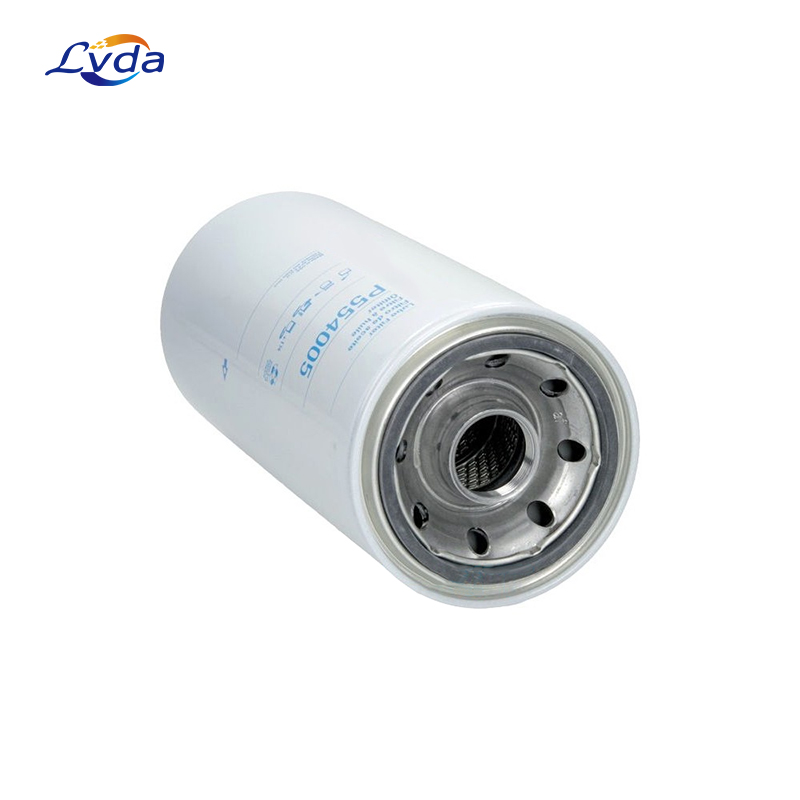

P554005

Replacement for Donaldson filters

Model Number: P554005

Outer Diameter : 136 mm (5.35 inch)

Thread Size : 1 1/2-16 UN

Style : Spin-On

Gasket OD : 110 mm (4.33 inch)

Gasket ID : 100 mm (3.94 inch)

Product Details

Usage:

Lubrication system of the engine Caterpillar (C10, C12, C13, C9) of agricultural machinery Claas Lexion (400, 500, 600, 700-series), Xerion (3300 Trac, 3800).

Designation:

Oil filter P554005 Donaldson designed to remove various types of contaminants from engine oil as a result of wear of friction surfaces or the ingestion of solid fuel combustion products in the oil during the operation of the unit.

Peculiarities:

- replacement body fuel filter with thread (spin-on type) consists of a filtering element, seals, special valves, a strong sealed housing and is an independent element of the filtration system;

- oil filtration is carried out under the influence of pressure and high temperature of the lubricating environment.

Filter elements are tested according to the following ISO standards:

ISO 2941 Verification of collapse/burst resistance

ISO 2942 Verification of fabrication integrity

ISO 2943 Verification of material compatibility with fluids

ISO 3723 Method for end load test

ISO 3724 Verification of flow fatigue characteristics

ISO 3968 Evaluation of pressure drop versus flow characteristics

ISO 16889 Multi-pass method for evaluating filtration performance

Product features

1.Keep oil clean by capturing contaminants that cause engine damage.

2.Include heavy duty components that are built to perform, built to last.

3.Deliver essential engine protection for maximum cold flow performance.

Product parameters

Outer Diameter	136 mm (5.35 inch)
Thread Size	1 1/2-16 UN
Length	308 mm (12.13 inch)
Gasket OD	110 mm (4.33 inch)
Gasket ID	100 mm (3.94 inch)
Efficiency 99%	40 micron
Media Type	Cellulose
Collapse Burst	10.3 bar (149 psi)
Type	Full-Flow
Style	Spin-On
