Replacement filter element is suitable for P167886 ,Donaldson  HYDRAULIC FILTER, CARTRIDGE,96*56*324

Product Details

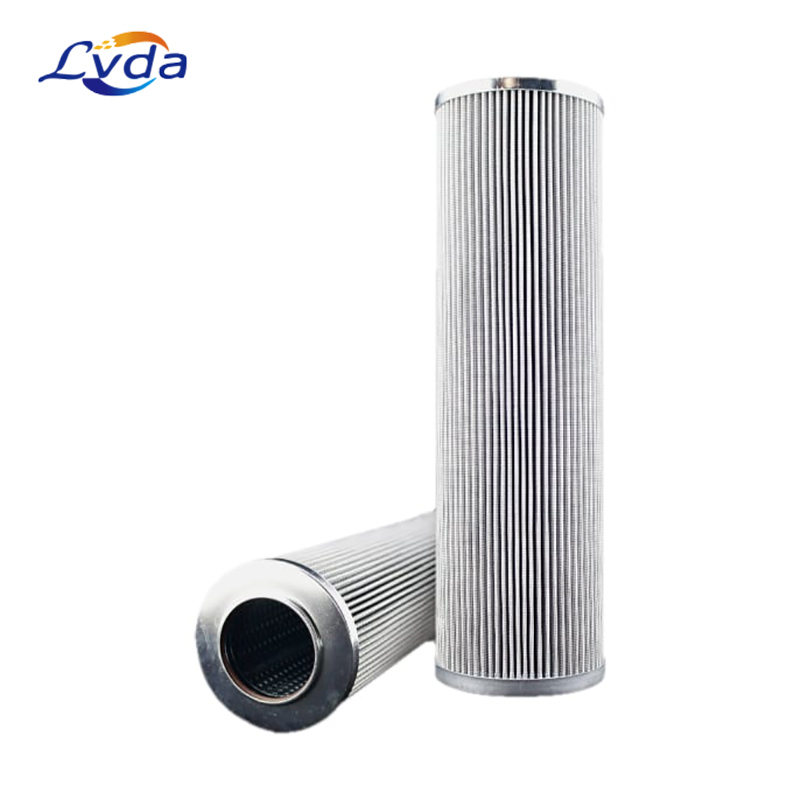

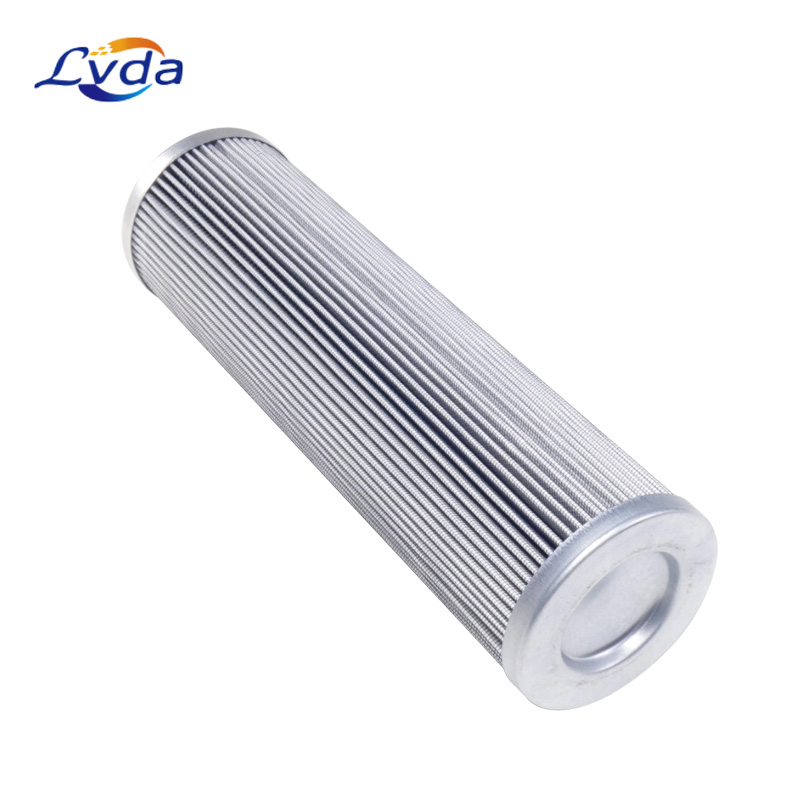

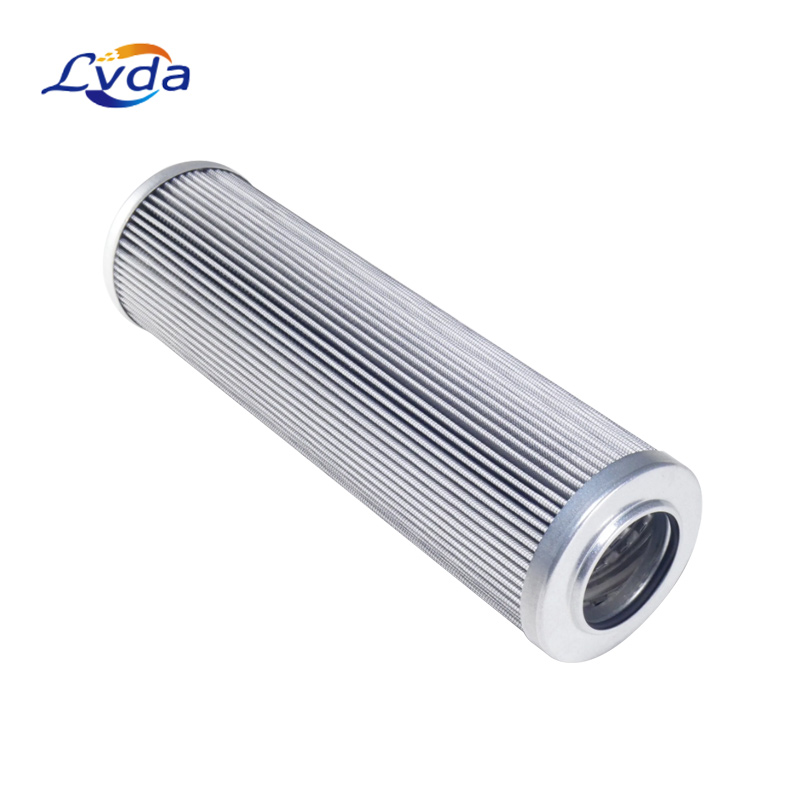

 Donaldson P167886 Replacement Filter

Our Donaldson P167886 replacement hydraulic filter is a guaranteed direct replacement in form, fit, and function. This means the filter will fit and you should expect performance to be equal to or greater than the OEM filter.

Filtration Media for the Donaldson P167886 direct interchange

Our filter media is backed by ISO 16889 multi-pass testing and other ISO/SAE test protocols and the filter is produced in an ISO Certified manufacturing facility. An ISO Certified manufacturing facility is all about quality control, consistency, responsibility, and being true to the design. Optimized microglass media is used for fine filtration, just like the Donaldson P167886 hydraulic filter to be replaced. Our microglass filters use the optimal amount of media and pleats to ensure high dirt-holding capacity. The correct number and design of pleats in the element will give you the lowest initial pressure drop. Therefore the filter will take longer to reach its change-out pressure drop which is usually 25 PSID.

Micron Rating for the Donaldson P167886 cross

This Donaldson P167886 hydraulic filter replacement element is beta-rated. The filter performance is outstanding. The Beta X = 1000 number means that for every 1000 particles of x size in the fluid only one particle will pass through the filter on average.

3 Micron; B3 = 200, B4.5 = 1000 equivalent to efficiency of 99.9%

Filter Collapse Pressure for the Donaldson P167886 cross reference

A filter collapse pressure of 363 PSID Collapse means that if the filter is completely clogged and the build up of pressure reaches or surpasses 363 PSID Collapse the filter may collapse and allow contamination downstream. Please use a satisfactory safety factor for the filter.

Compatible Fluids

This filter is compatible with the following fluids but pressure drop will vary depending on viscosity and temperature:

Hydraulic Fluid and Machining Fluids

Diesel and other fuels

Lubricating Oils and Synthetic Lubricants

Turbine and Compressor Lube Oils … And many more fluids

Product features

1.LVDA hydraulic filter element has high porosity, good permeability, small resistance and low differential pressure

2. It has high temperature resistance, corrosion resistance and is suitable for filtering highly viscous liquid.

3. The filtering area is large and the dirt holding capacity is large.

Product parameters

Product application

1．Chemical and petrochemical industry

2．Pharmaceutical industry

3．Filling machines

4．Food & beverage industry

5．Packing machines

6．Process industry
